EN | Technical data
8 Technical data
For further technical data, see https://fsp.ostberg.com.

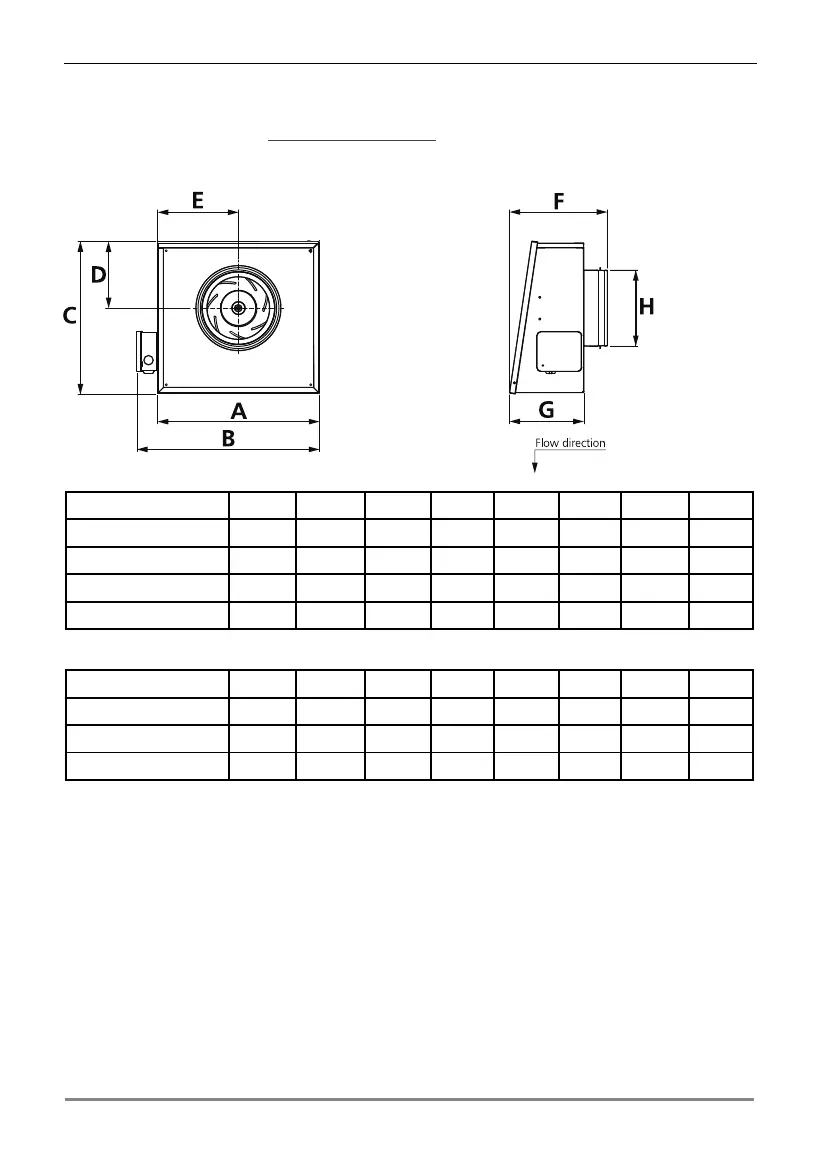

8.1 Dimensions
RS AC
(mm) ABCDEFGH
RS 80 A/C 230 273 252 104 115 170 122 Ø 80
RS 100 A/C 230 273 252 104 115 170 122 Ø 100
RS 125 A/C 230 273 252 104 115 170 122 Ø 125
RS 160 A/C 332 375 310 135 166 195 147 Ø 160
RS EC
(mm) ABCDEFGH
RS 100 C1 234 277 257 106 117 170 132 Ø 100
RS 125 C1 234 277 257 106 117 180 132 Ø 125
RS 160 A1/C1 336 379 317 139 168 201 154 Ø 160
