ASSEMBLING INSTRUCTIONS
HOW TO ASSEMBLE GRINDER HEAD
Before assembling, lubricate shaft of Feed Screw with vegetable oil (very sparingly,
to prevent excess oil from entering Grinder Body).
N
OTE:

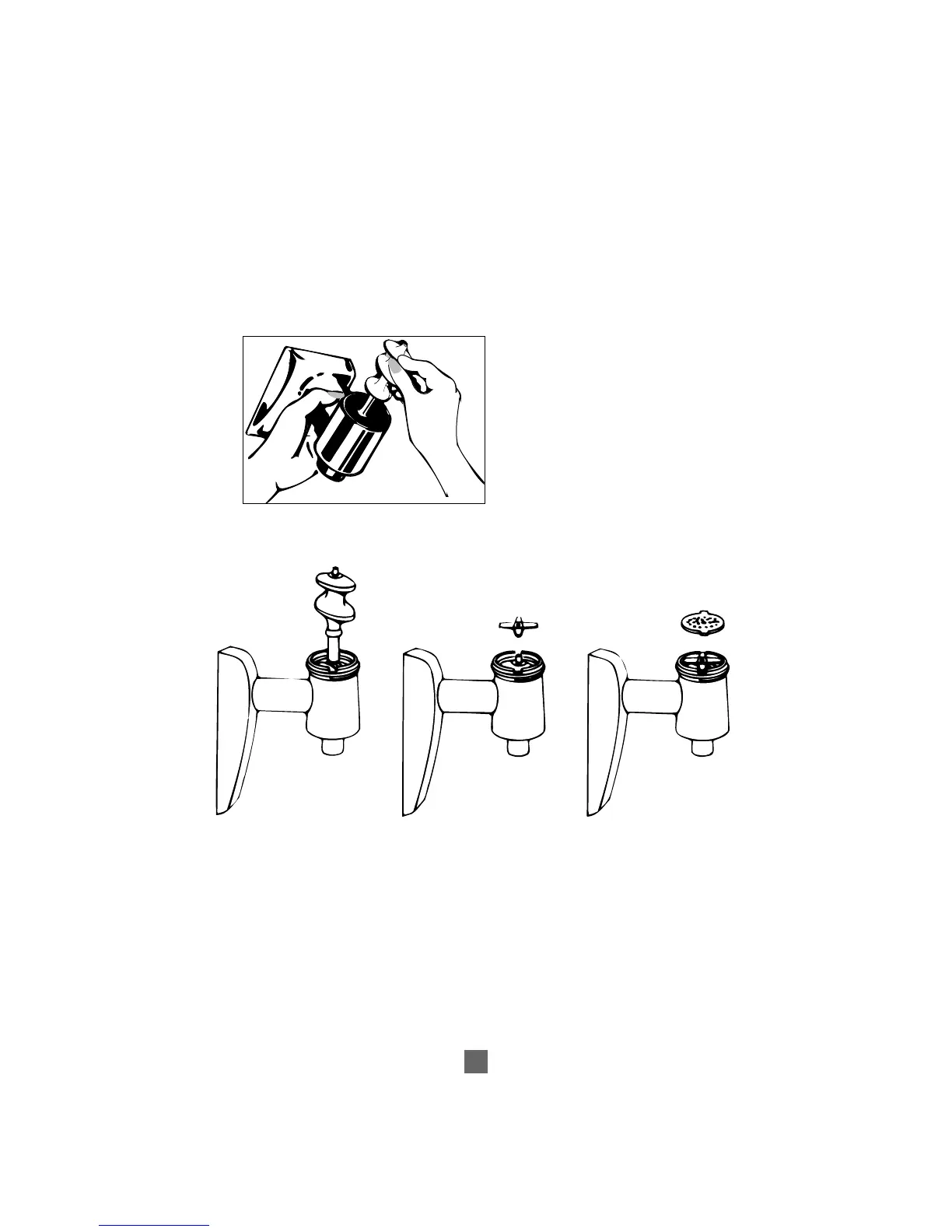

Always hold Grinder as shown
so the parts will drop into place
and be properly seated for
trouble-free operation.
1. Drop the Feed Screw into the Grinder Body.
2. Fit the four-fingered Cutting Blade over the end of the Feed Screw.
The Cutting Blade has a center hole with one side round and the other side square.
Attach Cutting Blade so that the square hole faces the Feed Screw.
3. Slide the Grinding Disc on next – either the coarse or the fine disc, whichever you need.
Turn the Disc until the square “ears” on the edge fit down into the two notches on the
rim of the Grinder Disc. N
OTE: The Grinding Disc will protrude slightly over the rim
of the Grinder Body until the Retaining Ring is screwed tightly in place.
Feed
Screw
Cutting
Blade
Grinding
Disc
Grinder
Body
