OTC 5019A - Auxiliary Box Adapter Usage

Form No. 561942
Parts List &
Operating Instructions
for: 558382
Auxiliary Box Adapter
Maximum Capacity: 227 kg (500 lbs.)
Description:
Mounting adapter designed to be
used on a transmission jack mounting
plate for the purpose of removing and
installing the transmission housing
auxiliary box.
Use with:
•
OTC No. 5019A, 5078, or 1522A
Transmission Jack for removal and
installation of differential assemblies.
•
OTC No. 5130 DriveMaster™
Driveline Lift for removal and
installation of driveline components.
Item Part No.
No. No. Req'd Description

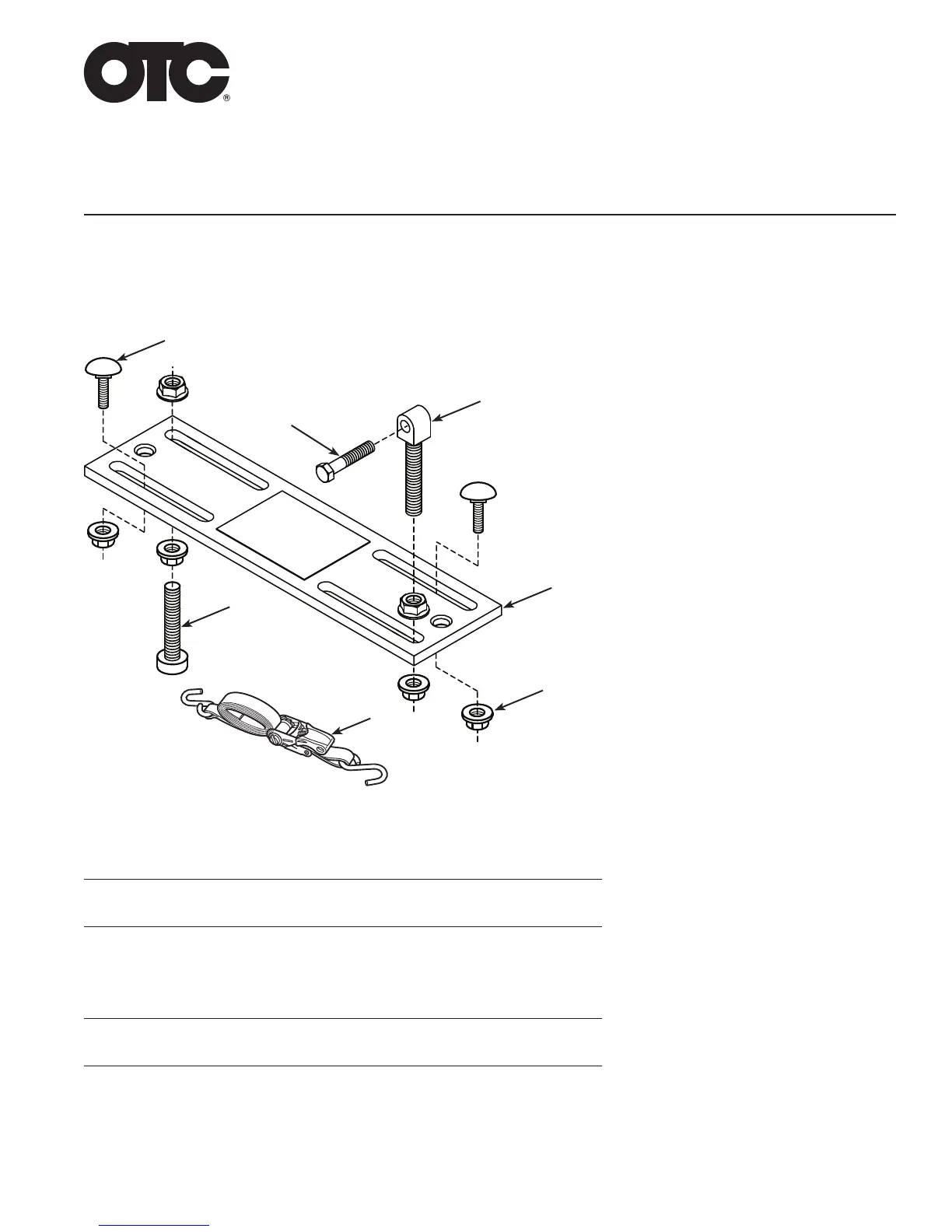

1 569968 1 Plate Assembly (consists of plate & decal)
Parts List
Item
No. Qty. Description
2 2 Carriage Bolt — 1/2-13 x 30.48 mm (1.25 in.)
3 1 Hex Head Screw — 3/8-16 x 50.8 mm (2 in.)
4 1 Stud — .500-13 x 101.6 mm (4 in.)
5 6 Flange Nut — 1/2-13 thread
6 1 Ratchet Strap — 122 cm (4 ft.)
7 1 Support Screw — 95.25 mm (3.75 in.)
Repair Kit No. 569967
4
5
2
3
7
6
1
