OTC 5019A - Auxiliary Housing Adapter; Assembly and Safety Precautions

Form No. 102734
Parts List &
Operating Instructions
for: 49611
Auxiliary Housing Adapter
Application: Eaton
®
Roadranger
®
Transmissions
Max. Capacity: 300 Lbs.
5

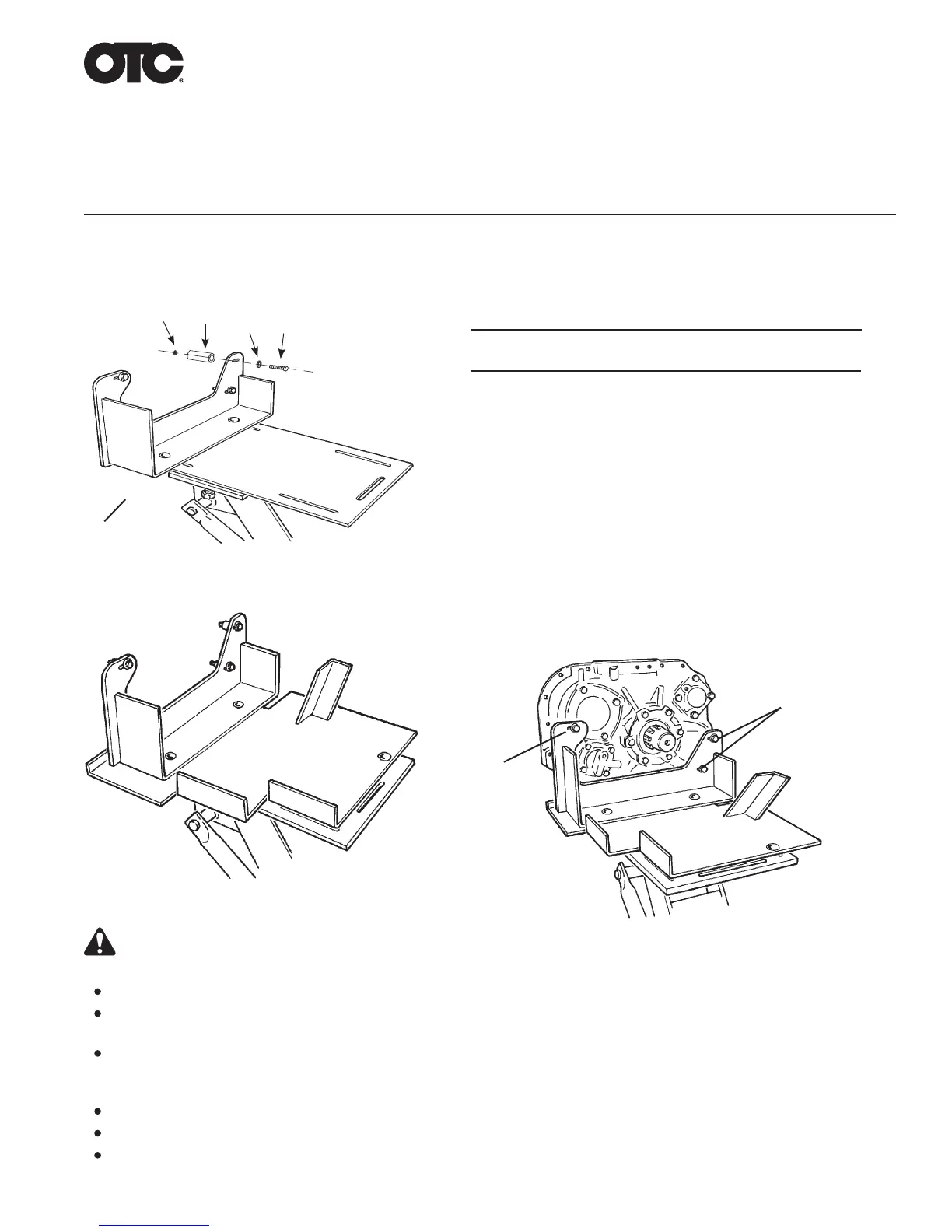

Figure 1
1 2
3
4
Figure 2
Assembly Instructions
1. Place the auxiliary housing adapter (No. 49611) on top of the jack's mounting
plate as shown in Figure 1 or 2. (Figure 2 shows the adapter attached to
OTC No. 220492 transmission adapter plate.) Secure the adapter with the
bolts that were supplied with the jack.
2. Attach the three adapter bolts to the countershaft bearing caps on the
auxiliary housing as shown in Figure 3.
Safety Precautions
WARNING: Failure to follow these warnings could cause a loss of load, damage to equipment,
and / or failure of equipment, which could result in personal injury or property damage.
• Wear protective eyewear that meets the requirements of ANSI Z87.1 and OSHA.
• Do not modify this housing adapter or use attachments unless supplied by OTC. If a modication
is needed, please contact OTC Technical Services.
• This auxiliary housing adapter is designed to remove or install Eaton Roadranger truck auxiliary
housings only. Using the adapter in a manner for which it is not designed may result in injury or
damage to equipment.
• The load must not exceed the maximum rated capacity of 300 pounds.
• Stay out from underneath the load at all times.
• Secure the load to the jack.
Item
No.
Part
No.
No.
Req'd
Description
1 12682 6 Retaining Ring
2 220784 3 Spacer
3 10231 3 Washer
4 221746 3 Bolt (3/8-16 x 2" lg.)
213886 3 Bolt (M10 x 1.5 x 50 mm)
5 49611 1 Adapter (includes Items 1-4)
Parts List
Adapter Bolts
Adapter
Bolt
Figure 3
