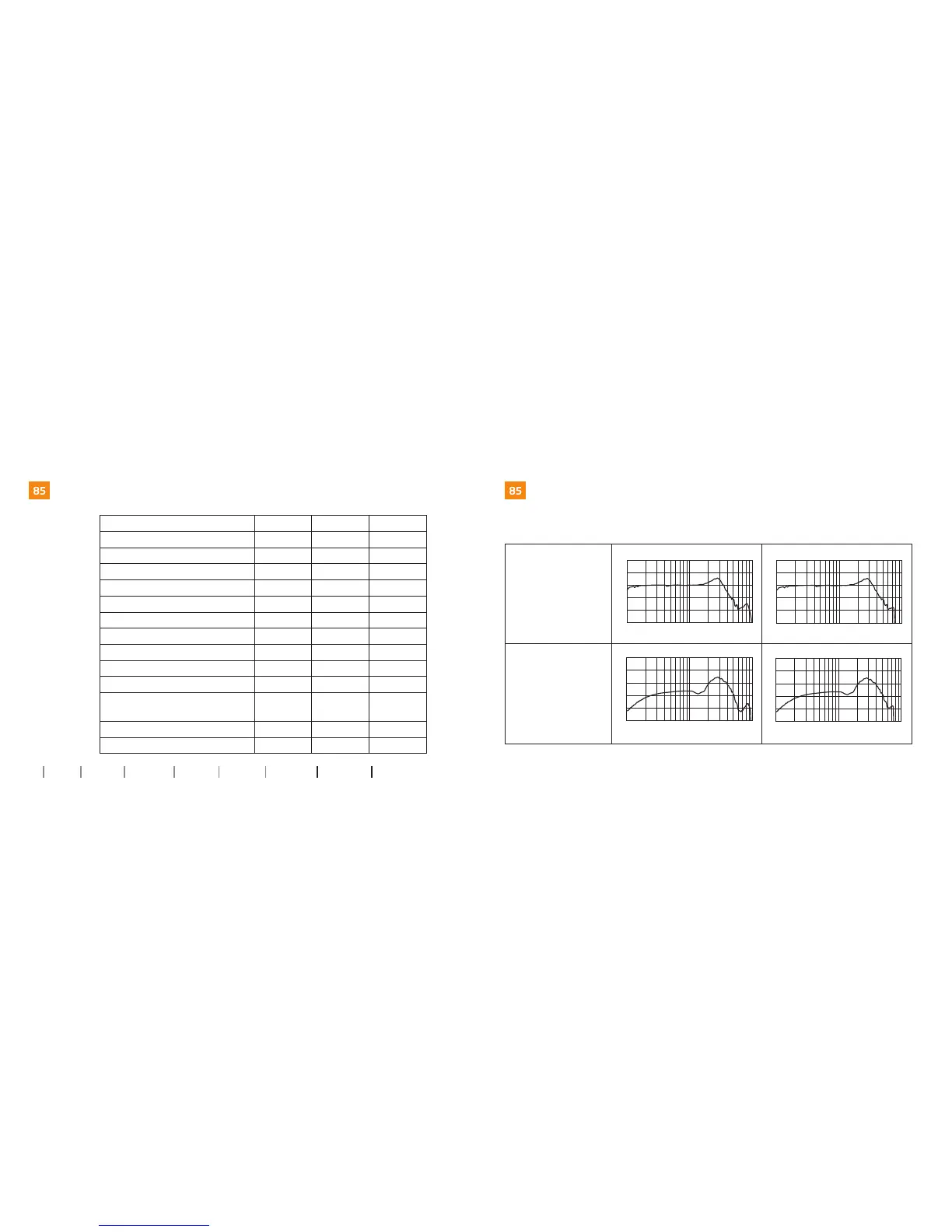

2CC Coupler
measured
according to
American
National
Standard
ANSI S3.22-2014
and ANSI S3.55-
2014/Part 5
Supply voltage:
Battery Zinc
Air 1.4 Volt
Technical Data
miniRITE / miniRITE T
0 dB SPL ref. 20 mPa
Oticon
Opn 1
Oticon
Opn 2/Siya 1
Oticon
Opn 3/ Siya 2
Peak OSPL90 116 dB SPL 116 dB SPL 116 dB SPL
HF Average OSPL90 112 dB SPL 112 dB SPL 112 dB SPL
Peak Full-on Gain 54 dB 54 dB 54 dB
HF Average Full-on Gain 47dB 47dB 47dB
Reference Test Gain 34dB 34dB 34dB
Frequency Range 100-8500 Hz 100-7500 Hz 100-7500 Hz
Total Harmonic Distortion 500 Hz <2 % <2 % <2 %
Total Harmonic Distortion 800 Hz <2% <2% <2%
Total Harmonic Distortion 1600 Hz <2 % <2 % <2 %
Battery Consumption 1.7 mA 1.7 mA 1.7mA
Equivalent Input Noise Level (omni/dir) 20/29 dB SPL 21/30dB SPL 21/30dB SPL
HF Average SPLITS (left/right ear)
(miniRITE T)
94/94 dB SPL 94/94 dB SPL 94/94 dB SPL
Attack Time 2 ms 2 ms 2 ms
Release Time 20 ms 20 ms 20 ms
Oticon
Opn 1
Oticon
Opn 2 & Opn 3
Siya 1 & Siya 2
OSPL90 – Output
Sound
Pressure Level
Input: 90 dB SPL.
Technical setting: A0
Full-on Gain
Input: 50 dB SPL.
Technical setting: A0
30
40
50
60
dB
100 200
Hz 500 1000 2000 Hz 5000 10000
Opn1mRITE85_FOG_2cc − 26−09−2016 − taje − 11:06:26
90
100
110
120
dB SPL
100 200
Hz 500 1000 2000 Hz 5000
10000
Opn1mRITE85_OSPL90_2cc − 26−09−2016 − taje − 11:05:35
90
100
110
120
dB SPL
100 200
Hz 500 1000 2000 Hz 5000
10000
Opn2+3mRITE85_OSPL90_2cc − 27−09−2016 − taje − 13:23:20
30
40
50
60
dB
100 200
Hz 500 1000 2000 Hz 5000
10000
Opn2+3mRITE85_FOG_2cc − 27−09−2016 − taje − 13:24:28
