2. Rail assembly
2.1 assembling the rail

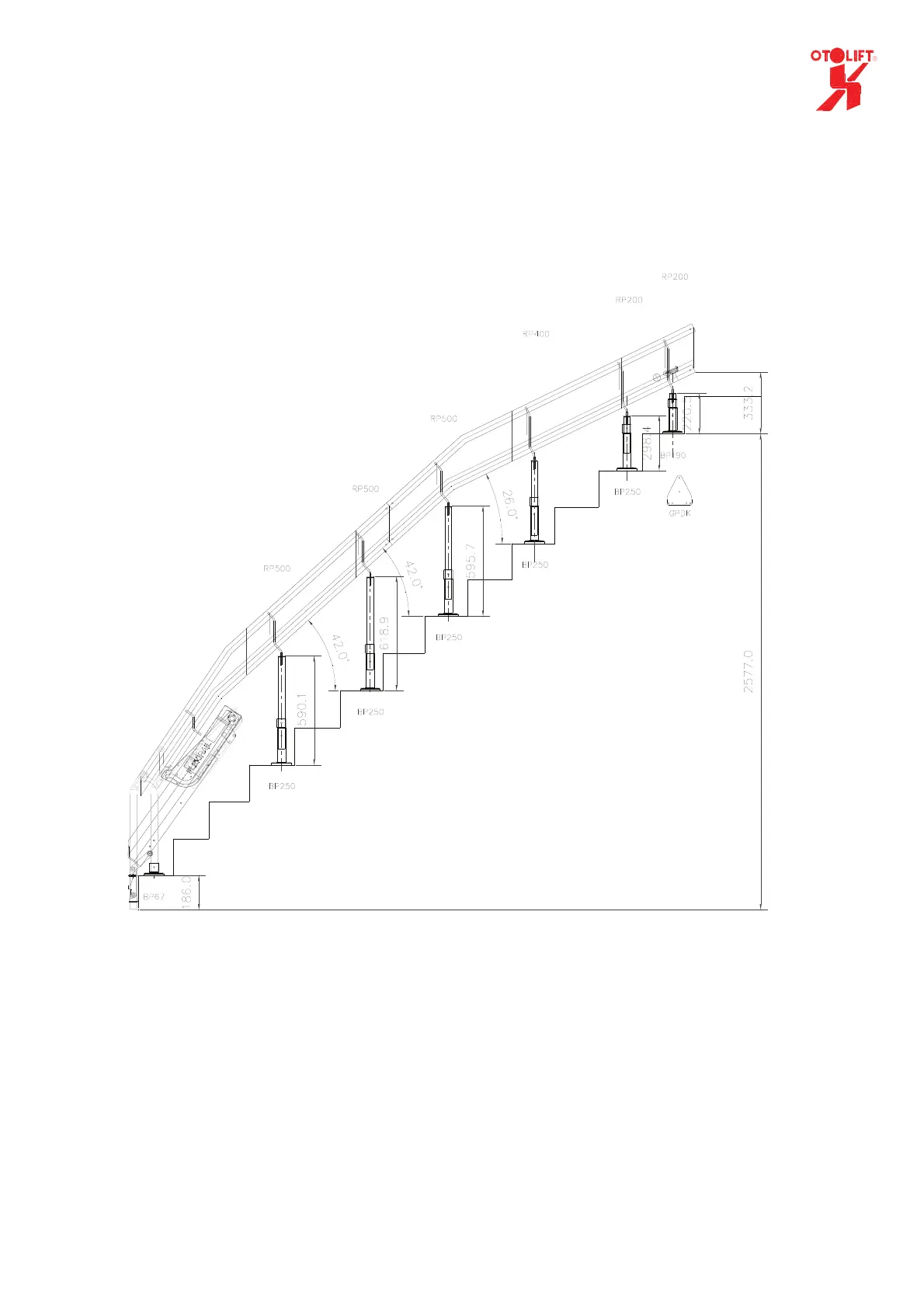

Below you see a drawing of a rail with a sliding hinge.
The drawing shows the type of legs, the total length of the legs and the different angles of inclination.
BP xxx stands for bottom leg.
RP xxx stands for straight leg.
The xxx number named after the BP or RP is the length of the leg in mm
