Ourmeter LD-S700 - Outline Drawing and Dimensions; Material and Dimensions

1. Outline
drawing and
dimensions
1) Main material and
color
LD-S700 instrument shell and external keys are mainly made of
ABS material, and the liquid crystal transparent window is acrylic.

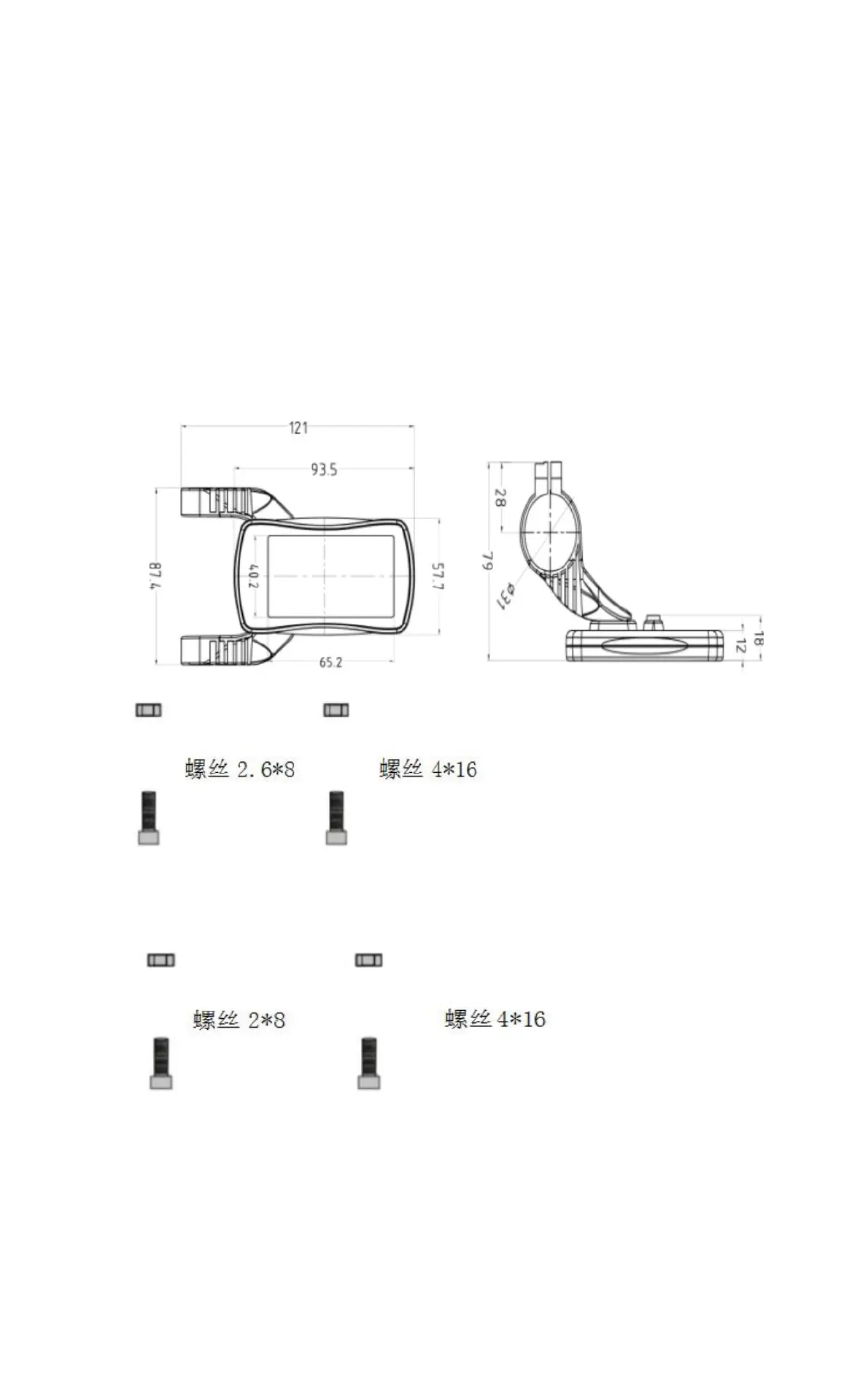

2) Instrument dimensions and installation
dimensions (unit: mm)
3) Graphical size and mounting size of external keys
(unit: mm)
5
