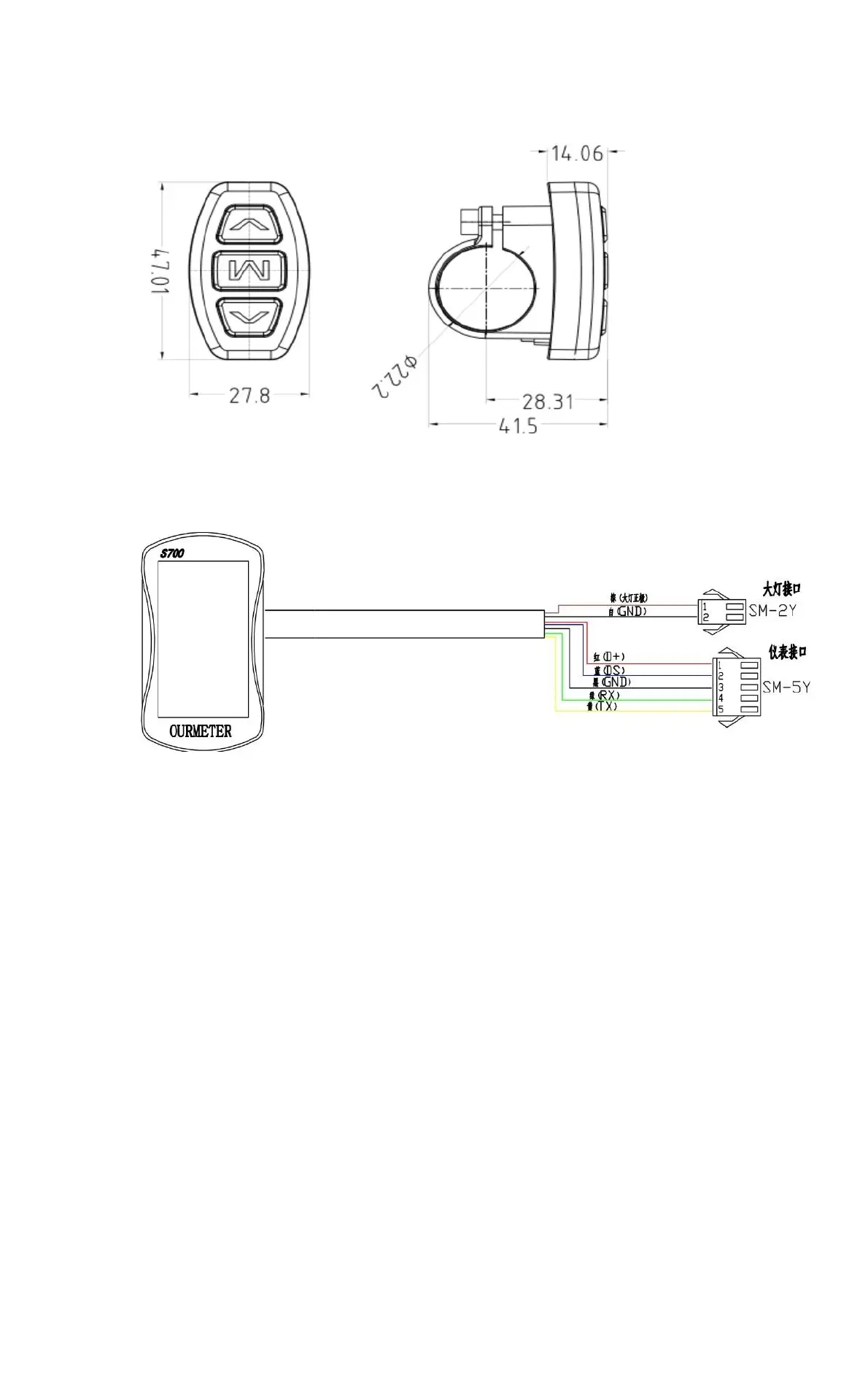

4) Wiring
diagram
Red line: Power
positive VCC Blue
line: Electric lock
DS Black line: Power
negative GND Green
line: Data receiving
line RX Yellow line:
Data sending line TX
Brown line: Headlight
positive DD White
line: Headlight
