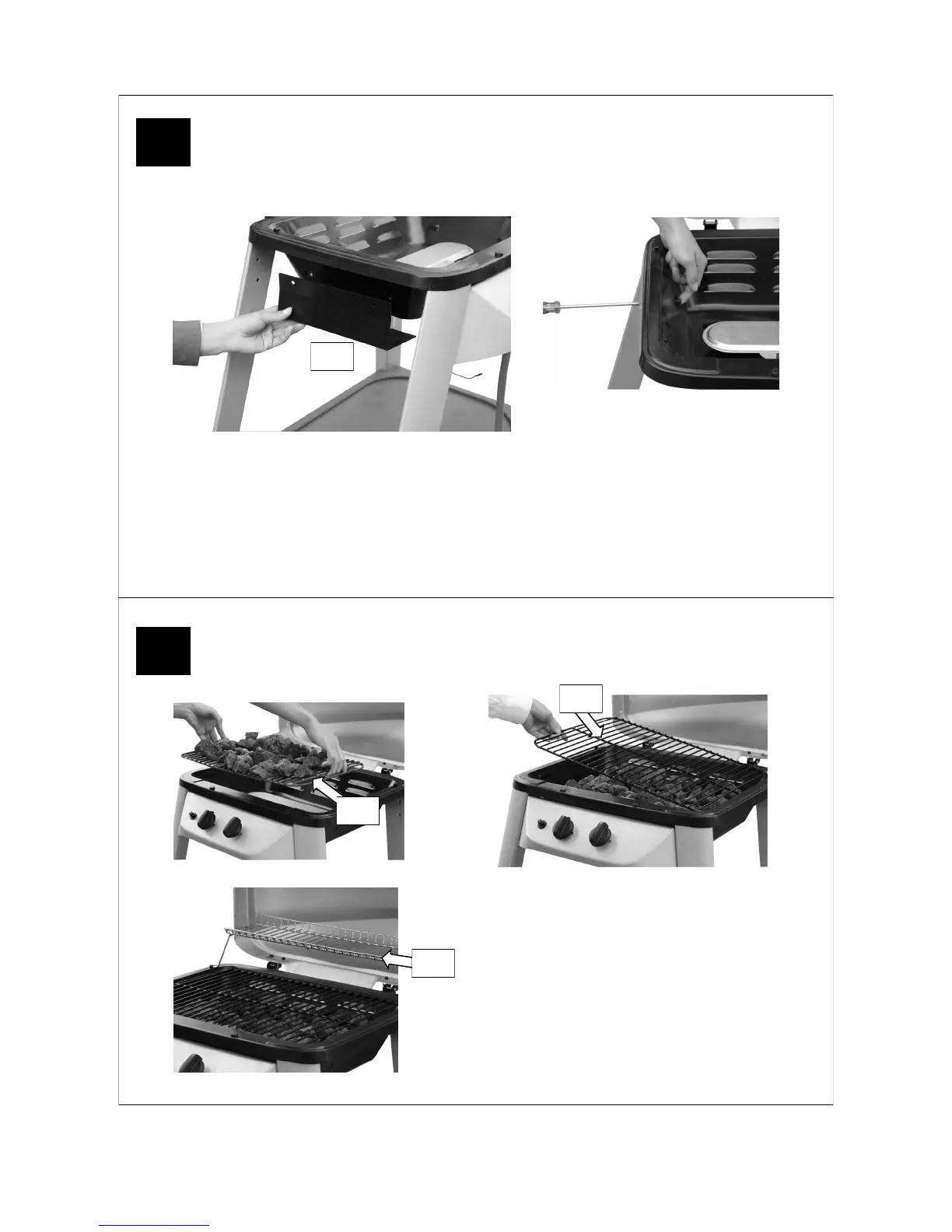

Attach the Body Heat Shield (B12) to barbecue body
using the M5x10 Bolts (D2) and M5 Nuts (D8).
Carefully lay the Lava Rock (B6) into the bar-
becue body ensuring it lies level within the
body. Lay the Cooking Grill (B7) into place.
Attach the Warming Rack (A3), to the hood
and barbecue body as shown. Make sure that
the swing legs fix to the body of the barbecue
and the shorter, fixed legs go through the
holes in the hood.
14
13
Excel 100T Excel 200T Excel 300T
Excel 100T Excel 200T Excel 300T
B12
B6
B7
A3
To Next Page
