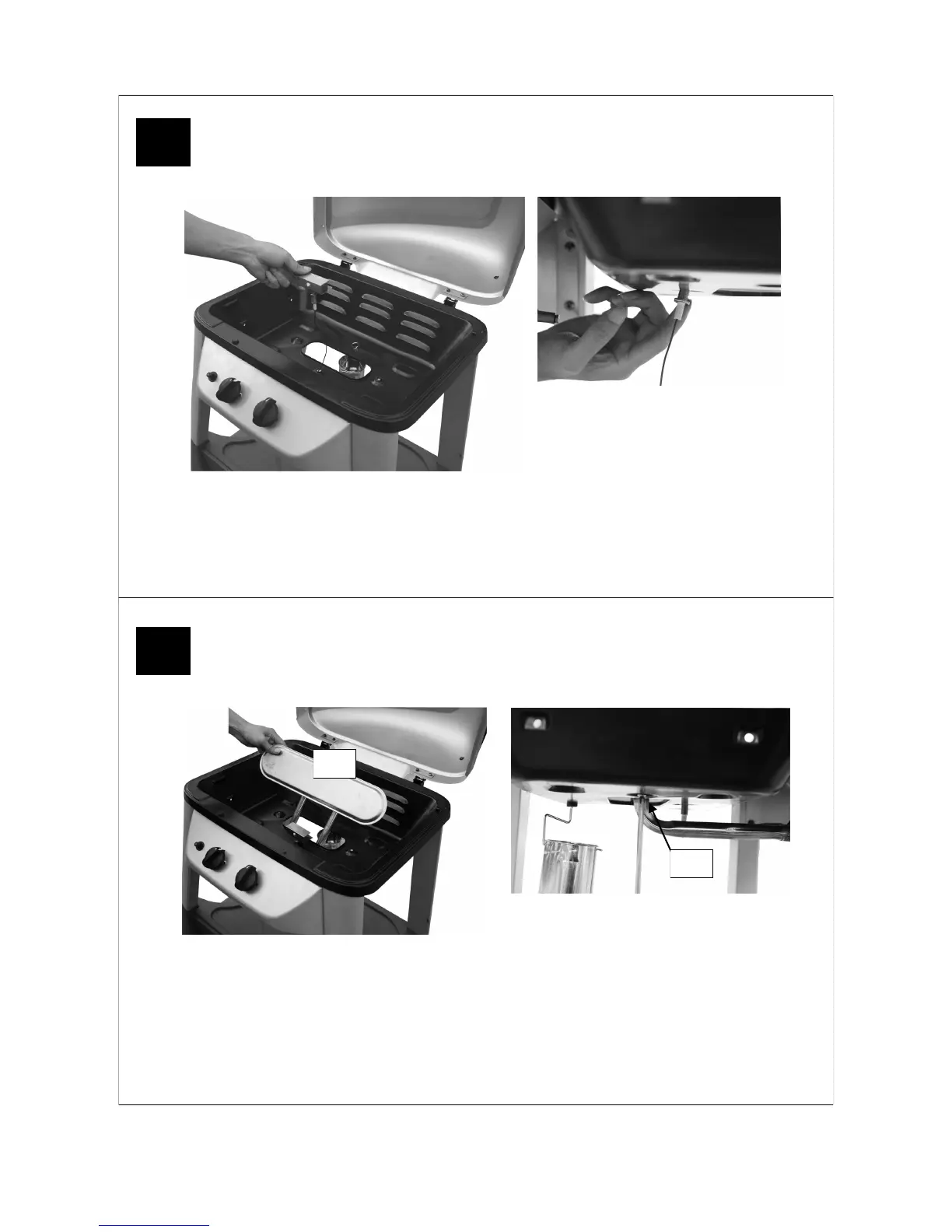

Insert the Main Electrode (B10) into the hole at the bottom of the barbecue body and
secure with the pre-assembled nut.
Feed the Burner (B2) into barbecue body. En-
sure that the burner venturi tubes are over the
ends of the gas valves. They are a loose fit
and not a gas tight seal. Secure the burner
with the ST4.0x10 Screws (D4).
View from underneath the body.
12
11
Excel 100T Excel 200T Excel 300T
Excel 100T Excel 200T Excel 300T
D4
B2
To Next Page
