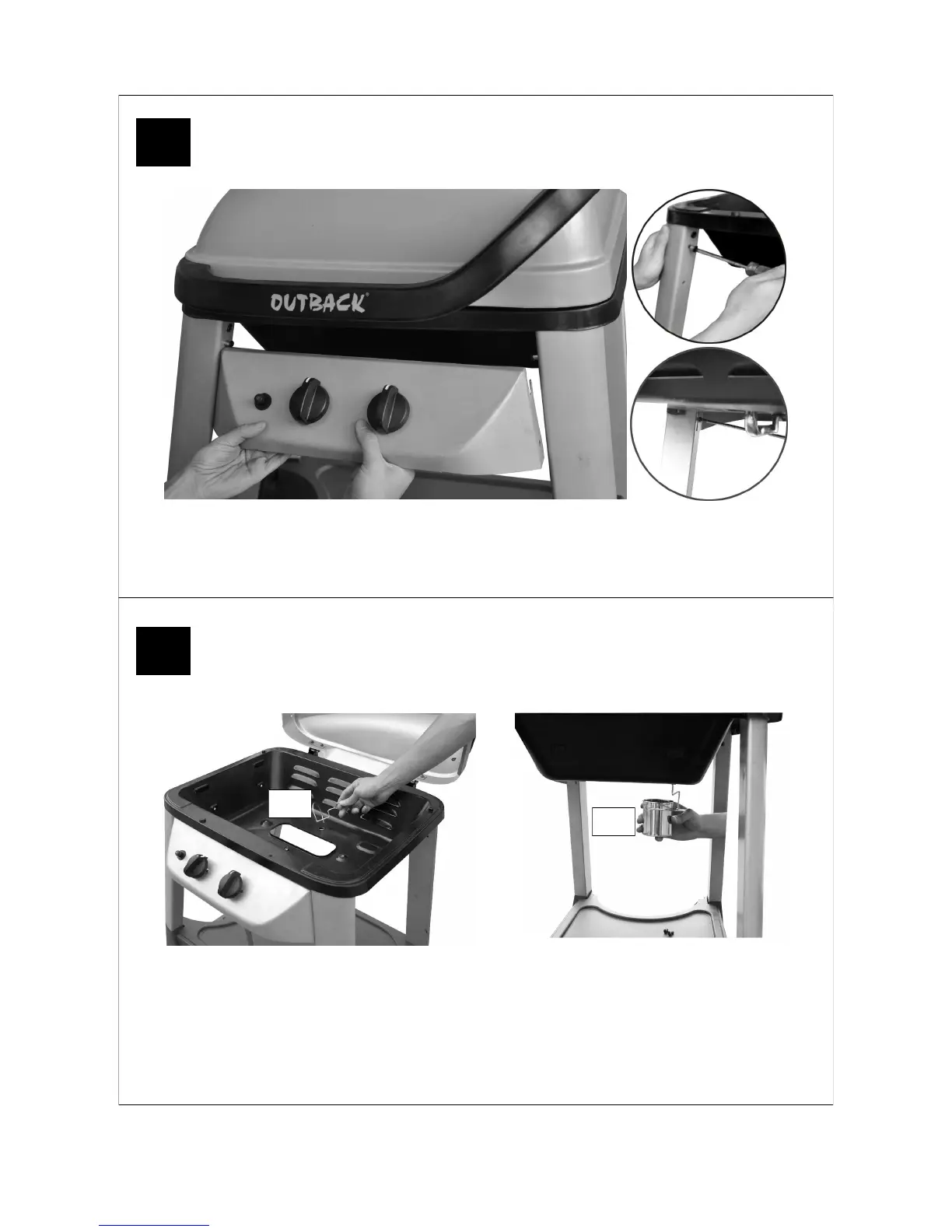

Feed the Grease Cup Holder (B14)
through the hole in barbecue body.
Insert the Grease Cup (B15) into the grease
cup holder.
Install a M6x15 Bolt (D1) and a Spacer (D9) into the upper fixing hole on each front leg.
Place the Control Panel (B3) assembly in position by aligning the spacers with the slot on
each side of control panel and fix it to the trolley assembly using M6x15 Bolts (D1).
10
9
Excel 100T Excel 200T Excel 300T
Excel 100T Excel 200T Excel 300T
B14
B15
To Next Page
