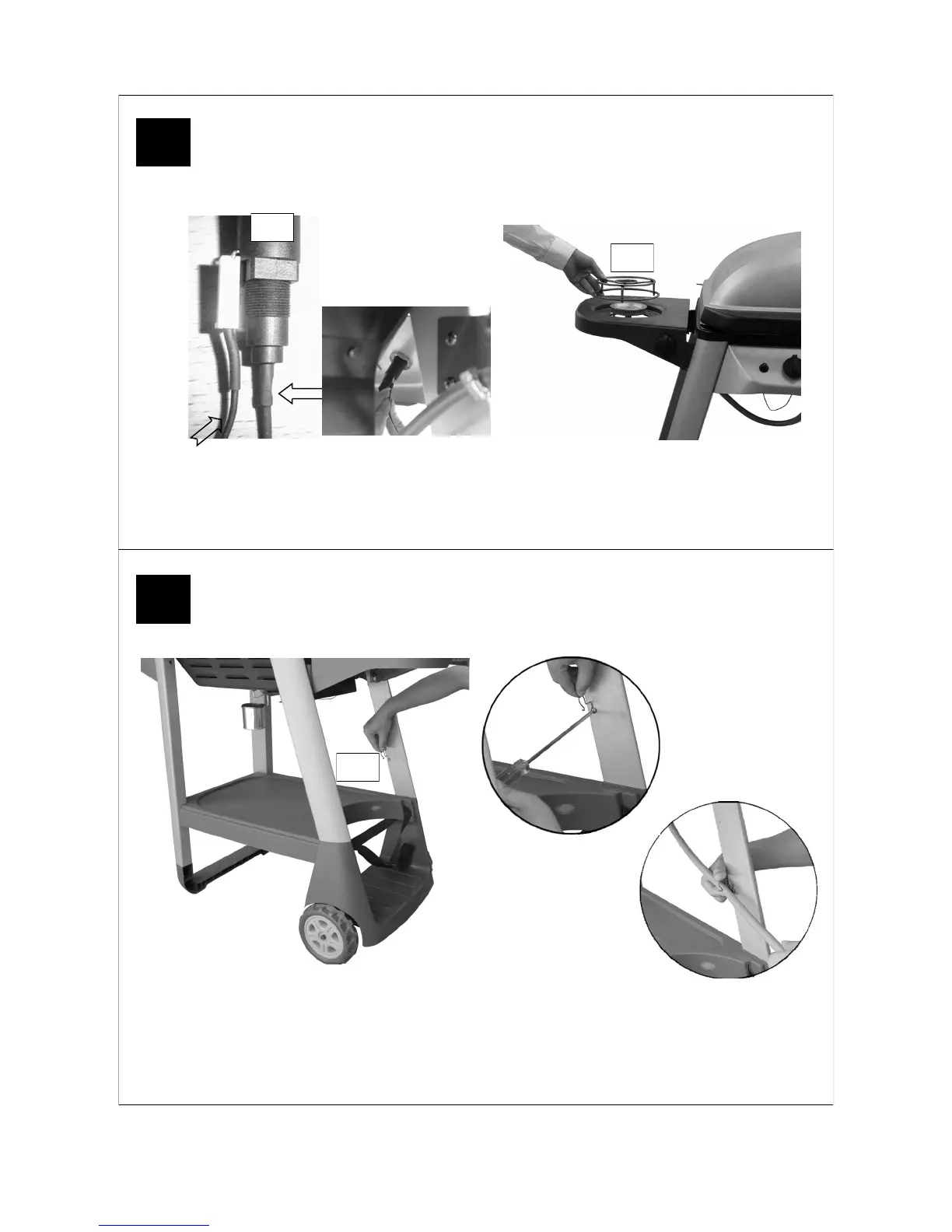

Connect the electrode
wire to the Ignition But-
ton (B8) under the con-
trol panel.
Side burner electrode
wire goes here.
Main burner
electrode wire
goes here.
Place the Side Burner Grid (C7) onto
the side burner shelf.
Fix the Hose Tidy (C16) onto the short leg front using a ST4.0x10 Screw (D4), then clip the hose (if
supplied) into hose tidy as shown.
Note: there are two fixing holes for the hose tidy:
Excel 100T and Excel 200T Users: please fix the hose tidy to the lower hole on the short leg front.
Excel 300T Users: please fix the hose tidy to the upper hole on the short leg front.
24
23
Excel 100T Excel 200T Excel 300T
Excel 100T Excel 200T Excel 300T
Note: Do not use any cooking utensils (pots,
pans etc.) with a diameter of over 280mm on
the side burner. Always keep the utensils in
the centre of the side burner.
B8
C7
C16
To Next Page
