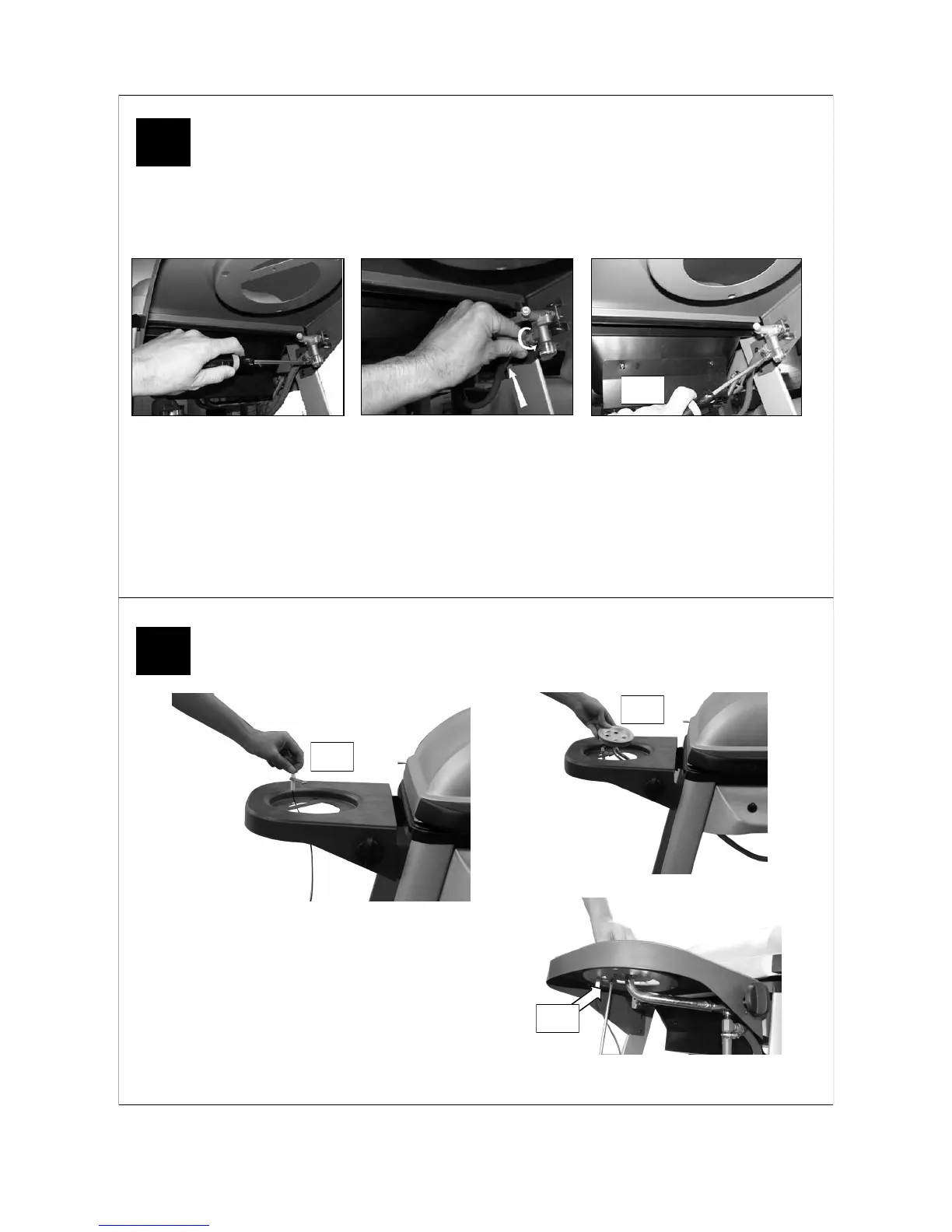

Loosen off the hose clip which
connects the hose to the side
burner gas valve.
Place the Side Burner Electrode (C10) onto the
side burner shelf as shown. Place the Side
Burner (C9) through the central hole. Fit the
side burner venturi tube over the gas valve out-
let. This is a loose fit and not a gas tight seal.
Secure the electrode and burner with M4x10
Bolt (D3).
Rotate the hose anti-clockwise
so that it touches the leg of the
barbecue.
Re-tighten the hose clip to secure
the hose in place, making sure
that the hose touches the leg of
the barbecue, but not the body or
heat shield.
Important: Regularly check the hose positioning to ensure that it is not in contact with any hot sur-
faces, such as the bottom of the body or the heat shield.
Once the hose is connected, check to ensure that it is not in contact with the barbecue body or Body
Heat Shield (B12).
22
21
Excel 100T Excel 200T Excel 300T
Excel 100T Excel 200T Excel 300T
B12
C10
C9
D3
