Overhead door 65A - Wiring

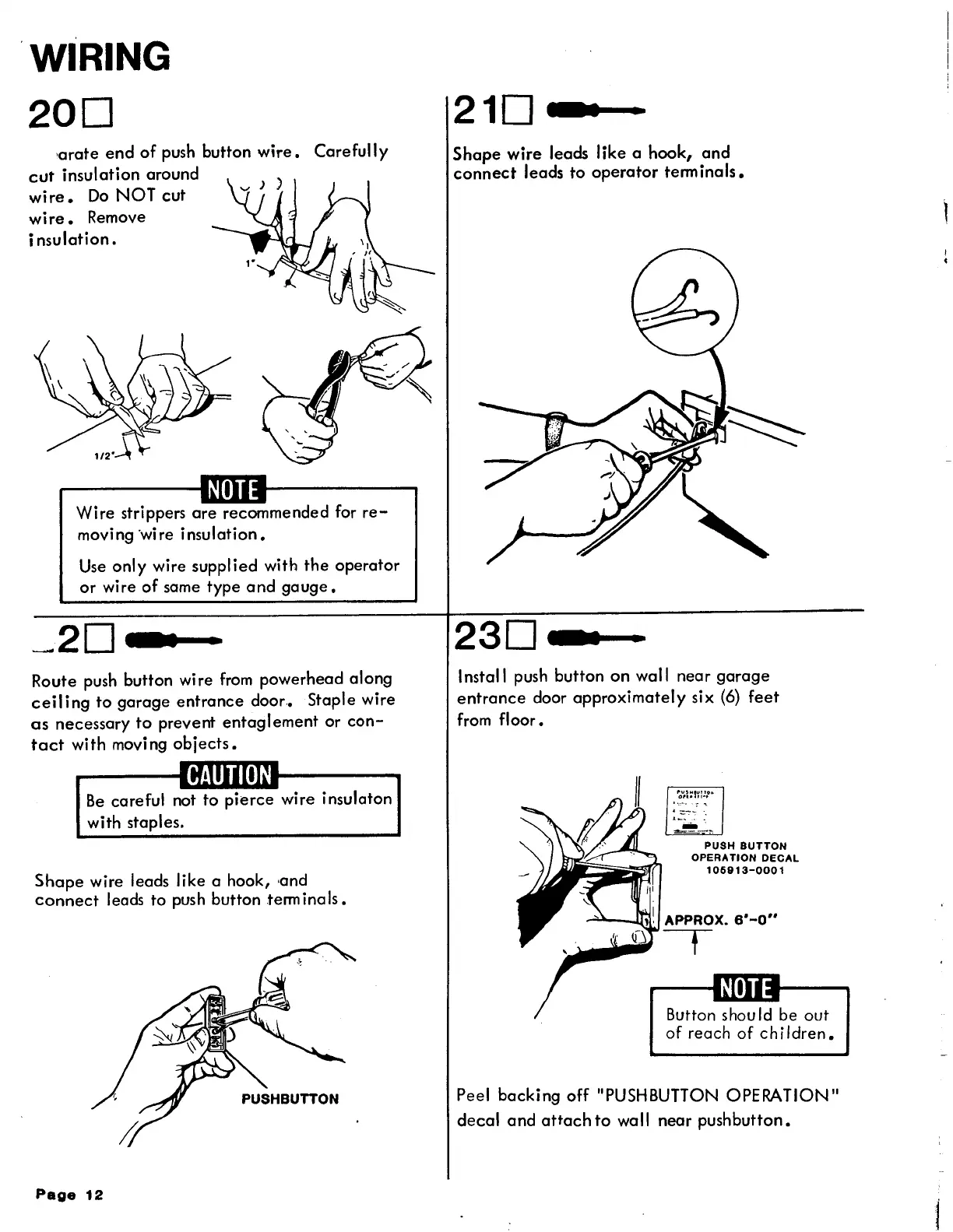

.WIRING
200
'Orate end of push button wire. Carefully
clJt insulation around
wire. Do NOT cut
wire. Remove
insulation.
Wire strippers ore recommended for re-
moving ·wire insulation.
Use only wire supplied with the operator
or wire of same type and gauge.
_20-----
Route push button wire from powerhead along
ceiling to garage entrance door.. Staple wire
as necessary to prevent entaglement or con-
tact with moving objects.
CAUTION
Be careful not to pierce wire insulaton
with staples.
Shape wire leads like a hook, ·and
connect leads to push button terminals.
Page 12
210
Shape wire leads like a hook, and
connect leads to operator terminals.
230
Install push button on wall near garage
entrance door approximately six (6) feet
from floor.
•·.··-:: ...
; __ ::~: ~-
PUSH BUTTON
OPERATION DECAL
105913-0001
---..u·, ! APPROX. 6
1
-0"
~-IJ. ... -_j t
Button should be out
of reach of children.
Peel backing off "PUSHBUTTON OPERATION"
decal and attach to wall near pushbutton.
