Please review the following pictures to determine the best way to hook

your new drive solution to your computer.

Power Plug On/O Switch

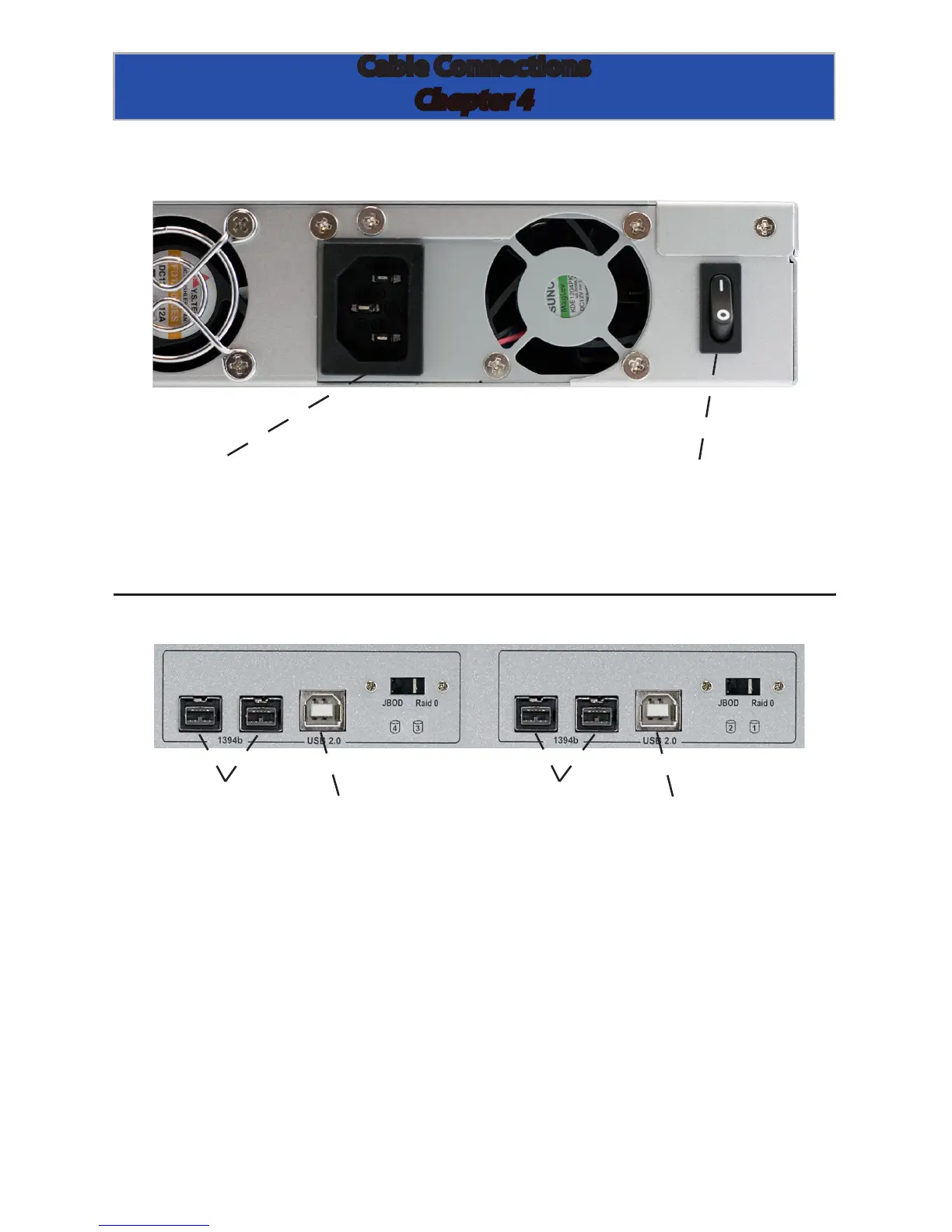

Insert the power plug and connect to your standard wall outlet. The

internal power supply is autoswitching and you can use it with voltages

ranging from 110V to 220V, 60Hz.

Drives 3 & 4

Drives 1 & 2

1394B

(FW800)

USB 2.0

1394B

(FW800)

USB 2.0

These are the connections you will use to attach the storage solution

to your computer. You will need to decide if you are going to hook the

solution up via FireWire 800 (1394b) - which is the fastest interface this

drive solution uses, or via USB 2.0, or both.

The OWC Mercury Elite RAID Rack has two separate back panel connec-

tions - called bridges - each controlling 2 hard drives. On the following

pages you will see the dierent methods used to connect the drive solu-

tion to your computer.

Cable Connections

Chapter 4
