OWC ThunderBay 4 User Manual

OWC THUNDERBAY 4
INTRODUCTION
1
1.1.3 Supported Drives
•Up to four 3.5” SATA drives (1.5Gb/s, 3.0Gb/s, or 6.0Gb/s).

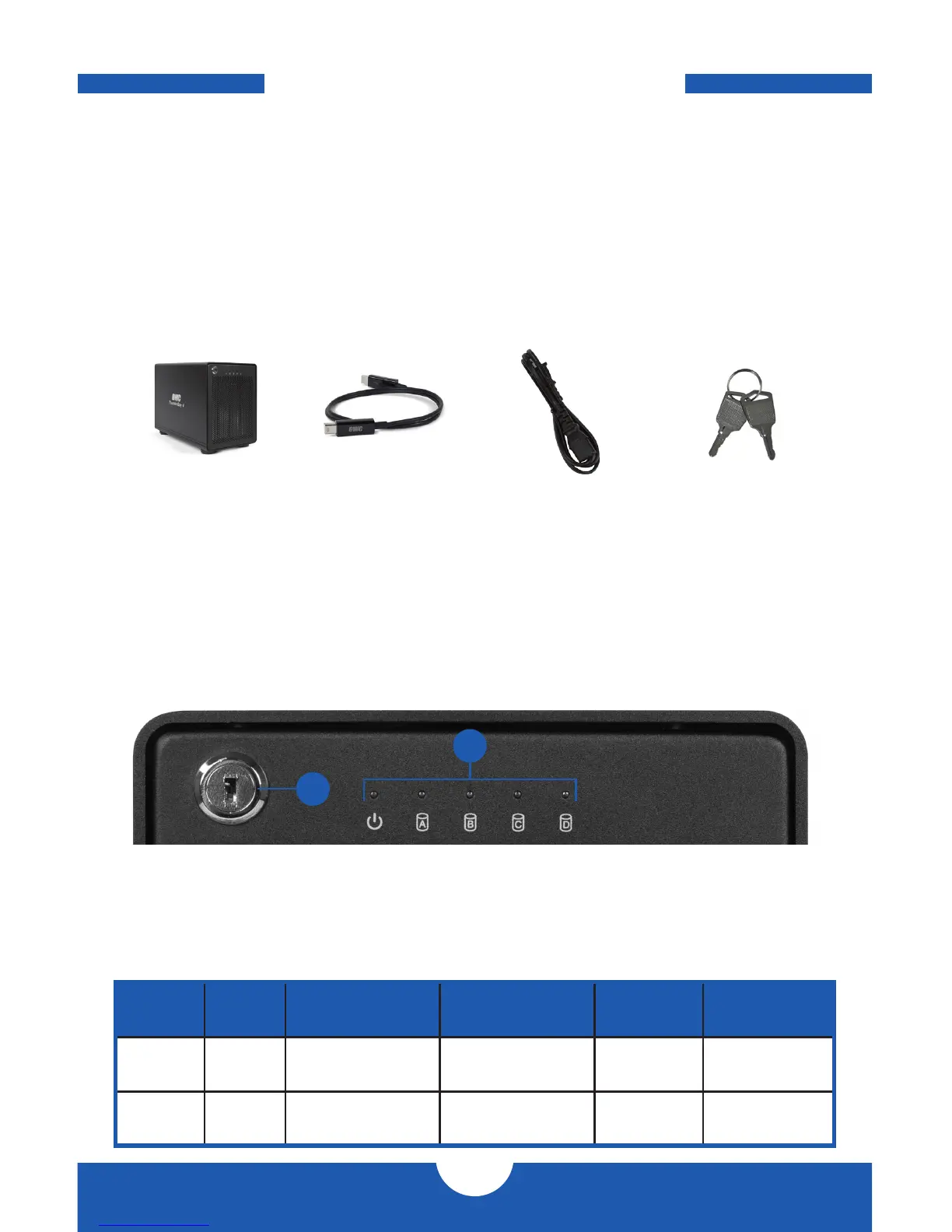

1.2 PACKAGE CONTENTS
Thunderbolt cable
ThunderBay 4
Keys
Power cable
NOT PICTURED: Hard drives have been installed into drive trays prior to shipping.
1.3 ABOUT THIS MANUAL
Firmware, images, and descriptions may vary slightly between this manual and the unit
shipped. Functions and features may change depending on the firmware version. Please
visit the product webpage for the most recent product specifications.
1.4 FRONT VIEW
1.4.1 Front Features
1. Locking faceplate — Use the included keys to lock the faceplate for security, or
remove the faceplate to gain access to the drive bays.
2. LED indicators — See the following chart for details on the ThunderBay 4’s LEDs.
LED COLOR
THUNDERBAY
ON
THUNDERBAY
SLEEPING
DRIVE
ACTIVITY
DRIVE BAD/
BAY EMPTY
Power
Blue/
orange
Solid blue Orange N/A N/A
Drive
(A, B, C, D)
Green N/A Off (all four)
Flashing
green
Off
1
2
INTRODUCTION
1.1 MINIMUM SYSTEM REQUIREMENTS
1.1.1 Apple® Mac® Requirements
•Thunderbolt™ port: OS X® 10.6 or later
1.1.2 PC Requirements
•Thunderbolt port: Windows® 7 or later

OWC ThunderBay 4 Specifications

General

RAID levels	JBOD
Storage drive size	2.5/3.5 \
Maximum storage capacity	32 TB
Number of storage drives supported	4
Supported storage drive interfaces	Serial ATA III
Fan diameter	92 mm
Product type	HDD/SSD enclosure
Product color	Black
LED indicators	Yes
Number of fans	1 fan(s)
USB connectivity	No
Thunderbolt 2 ports quantity	2
Data transfer rate	20 Gbit/s
AC adapter frequency	50/60 Hz
AC adapter input voltage	110 - 240 V
AC adapter output voltage	12 V
Storage temperature (T-T)	-40 - 65 °C
Operating temperature (T-T)	5 - 42 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	8 - 90 %
Cables included	AC, Thunderbolt

Weight and Dimensions

Depth	245.11 mm
Width	134.87 mm
Height	176.78 mm
Weight	3900 g
