SPECIFICATIONS
Electrical specifications:
5V DC 1.7A (USB type C supply)
Li-Po Battery 2200mAh
Radio equipment:
Bluetooth 5.0, 2.4GHz, Tx Max: 4 dBm
Mechanical specifications:
Aluminum chassis & Silicone buttons
Dimensions: 36 x 13 x 3 cm
Weigth: 890 gr.
Operating temperature:
10 ºC to 36 ºC

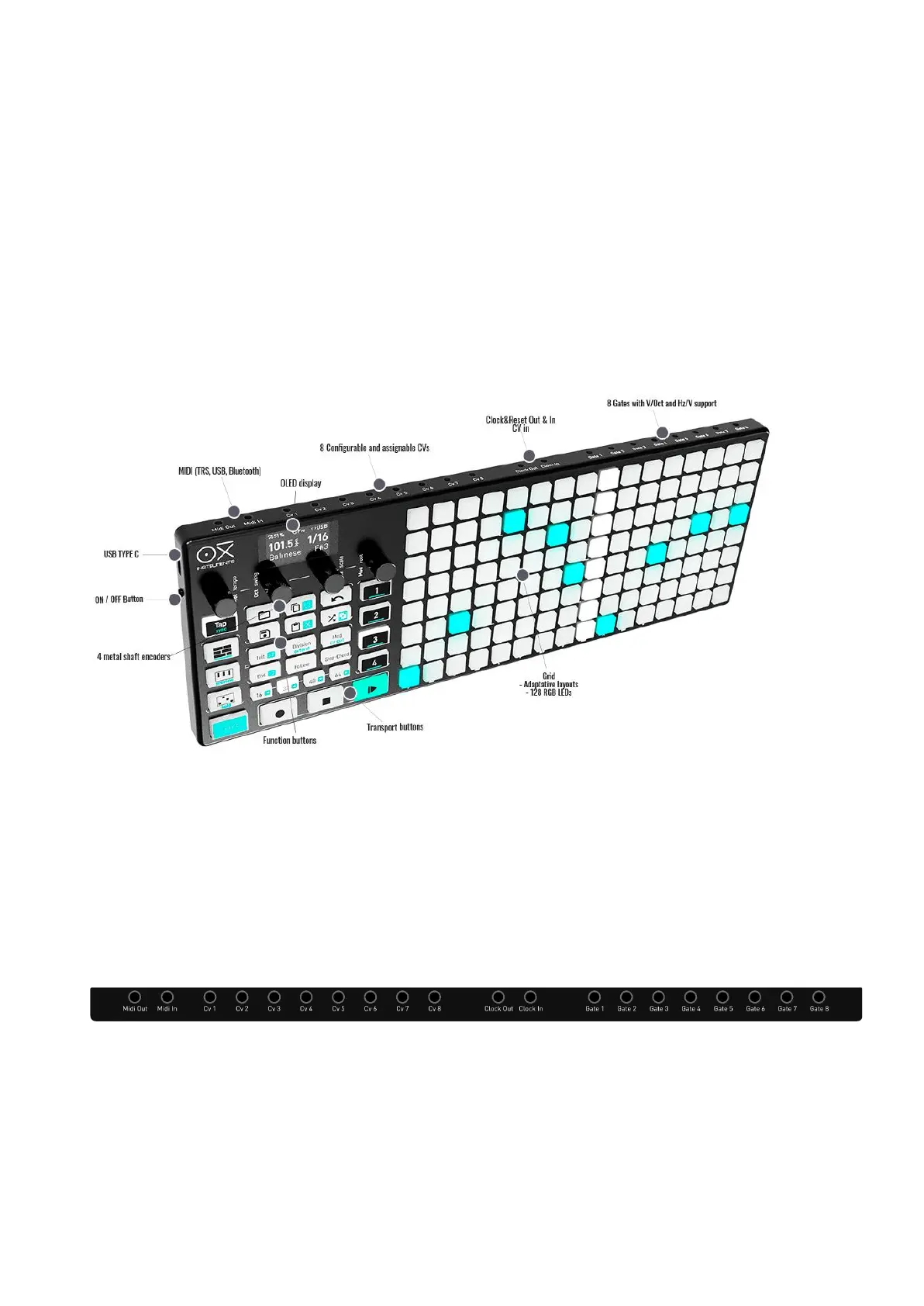

INPUTS AND OUTPUTS
· USB C for 5V power and MIDI USB. It also charges the internal Li battery
· MIDI TRS input and output (Din adapter included)
· MIDI Bluetooth BLE 5.0 bidirectional, peripheral and central roles.
· CV 1 to 8. From -3V to 8V
· GATE 1 to 8. 5V or 10V configurable
· Clock Out and Clock/CV In (can be independent with a splitter)
INCLUDED IN THE PACKAGE
· USB C to A cable
· MIDI DIN to TRS adapter
