Oxy Heli 5 - Page 10

ID
5.2
ID
5
Vertical Fin Assembly
( Box3/bag 1)

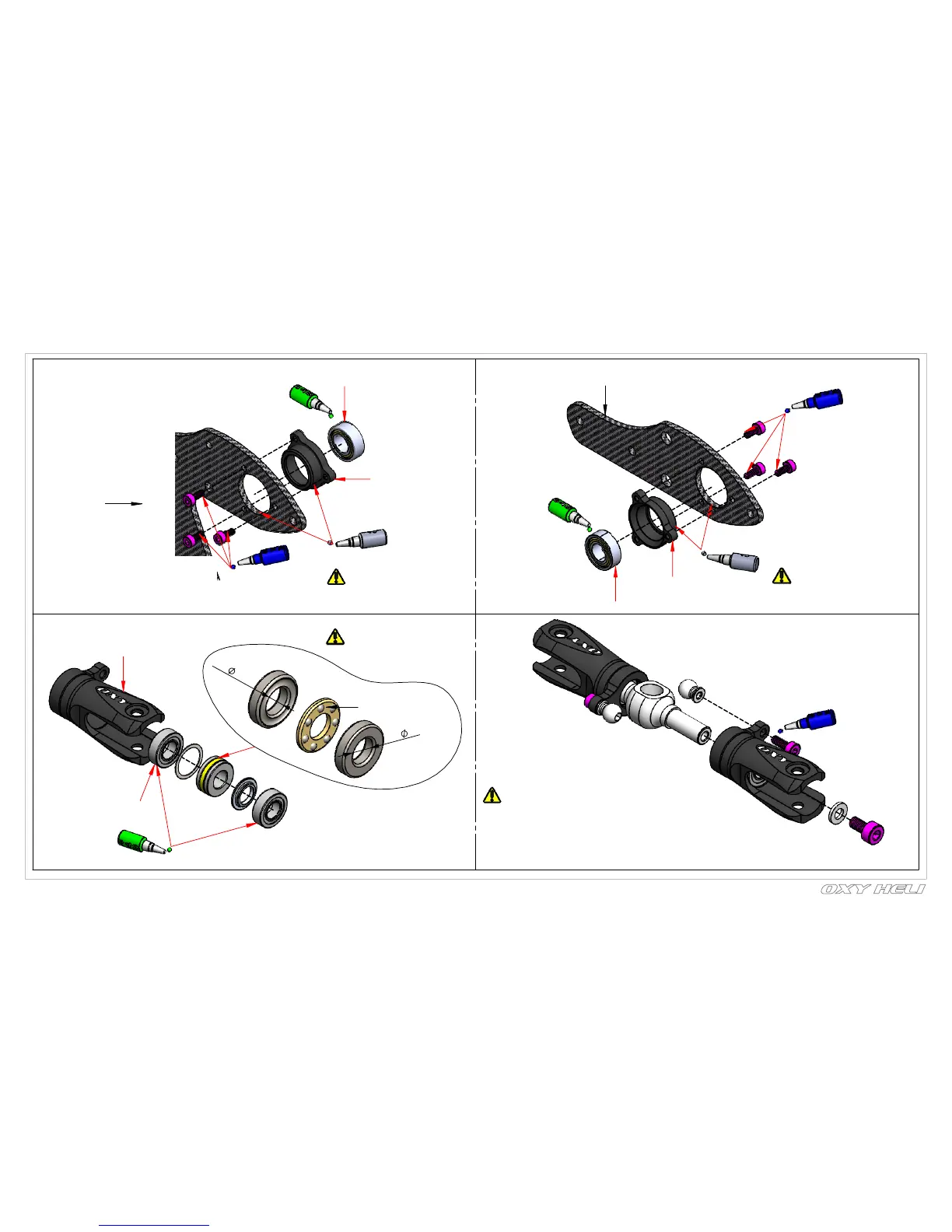

Chapter 6: Tail Assembly
Side Case Assembly
(Box3/bag 1)
Important Note:
This part, for tuning reasons,
comes factory pre assembled,
it's ready to use.
Important Note:
This part, for tuning reasons,
comes factory pre assembled,
it's ready to use.
Important Note:
Tail Grip will have lateral movement on hub shaft.
This is normal. When Spinning centrippetal force will
hold grip outwards
This part comes pre assembled
WITHOUT thread lock. It MUST be
re-assembled with thread lock as shown.
Important Note:
This part, for tuning reasons,
comes factory pre assembled,
it's ready to use.
6x12x4 Radial Bearing
CA Glue
loctite 648
M2x5 Hex Cap Screw
loctite 243
loctite 243
Vertical Fin
loctite 648
6x12x4 Radial Bearing
Bearing Bushing
Bearing Bushing
Side Case
Tail Rotor Assembly
(Box3/bag 2)
Tail Grip
2 x 5x10x3 Radial bearing
CA Glue
add grease
loctite 243
page 10
