Chapter 6: Tail Assembly
Step 5-2:

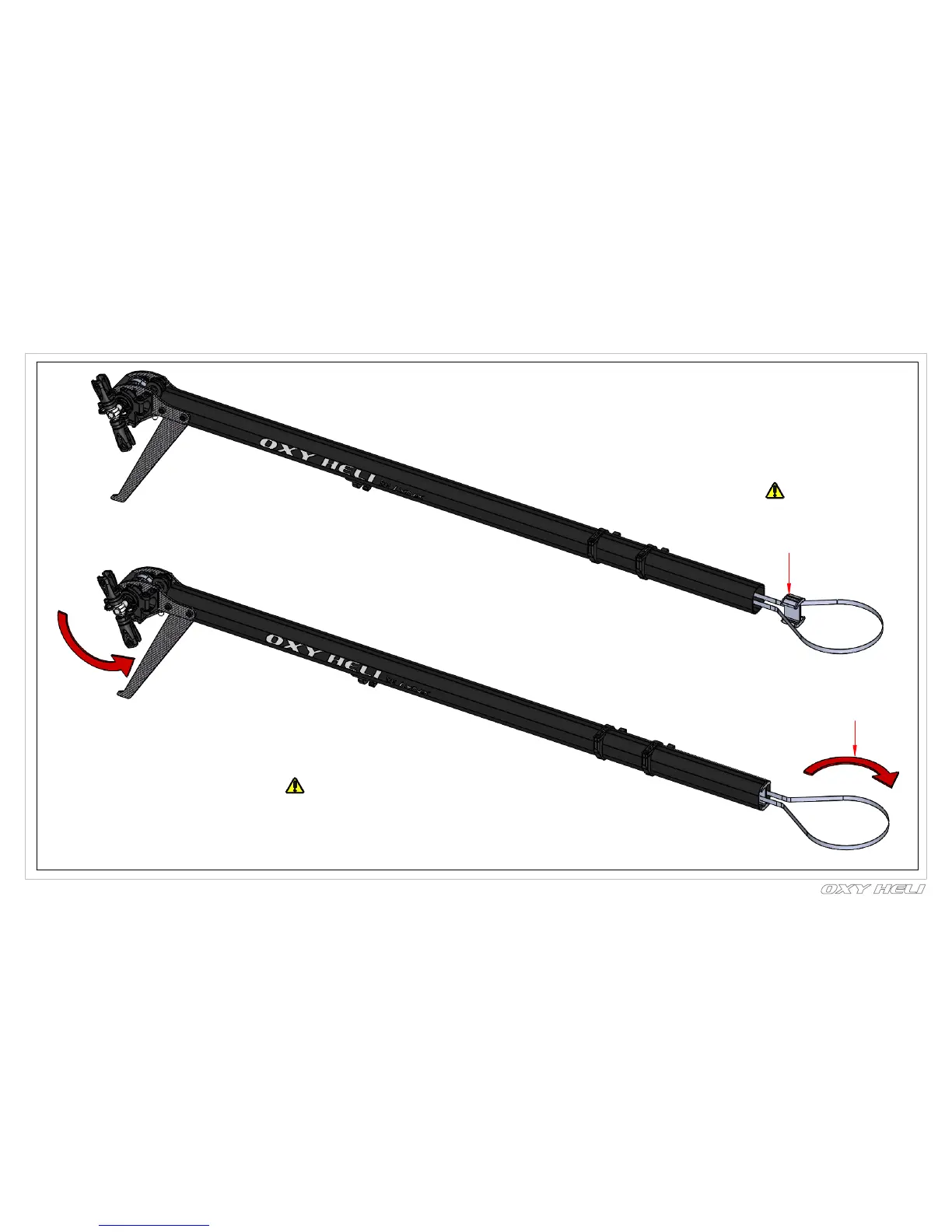

Hold carefully Tail Belt as shown and insert
Front Boom Insert.A
Front Boom Insert
(Box 3/Bag )
Press in this insert parts into
Tail Boom to help Tail Belt
doesn't twist in the next
installation step
Step 5-3:
Final Tail Belt Direction Check:
Pull Tail Belt (as shown) and check the tail hub rotates
in the direction shown. If the Tail Rotor rotates
in the wrong direction, go back to the previous
instructions and double check your assembly.
Pull Tail Belt here
