Chapter 6: Tail Assembly
TAIL BELT ASSEMBLY AND DIRECTION CHECK:
In order to check correct belt install,
move belt position A counter clockwise and
the position B must rotate counter clockwise.
Before next step Tail Assembly check carefully
if Belt is installed per need.
Belt MUST move without any friction.
Step 5-1:

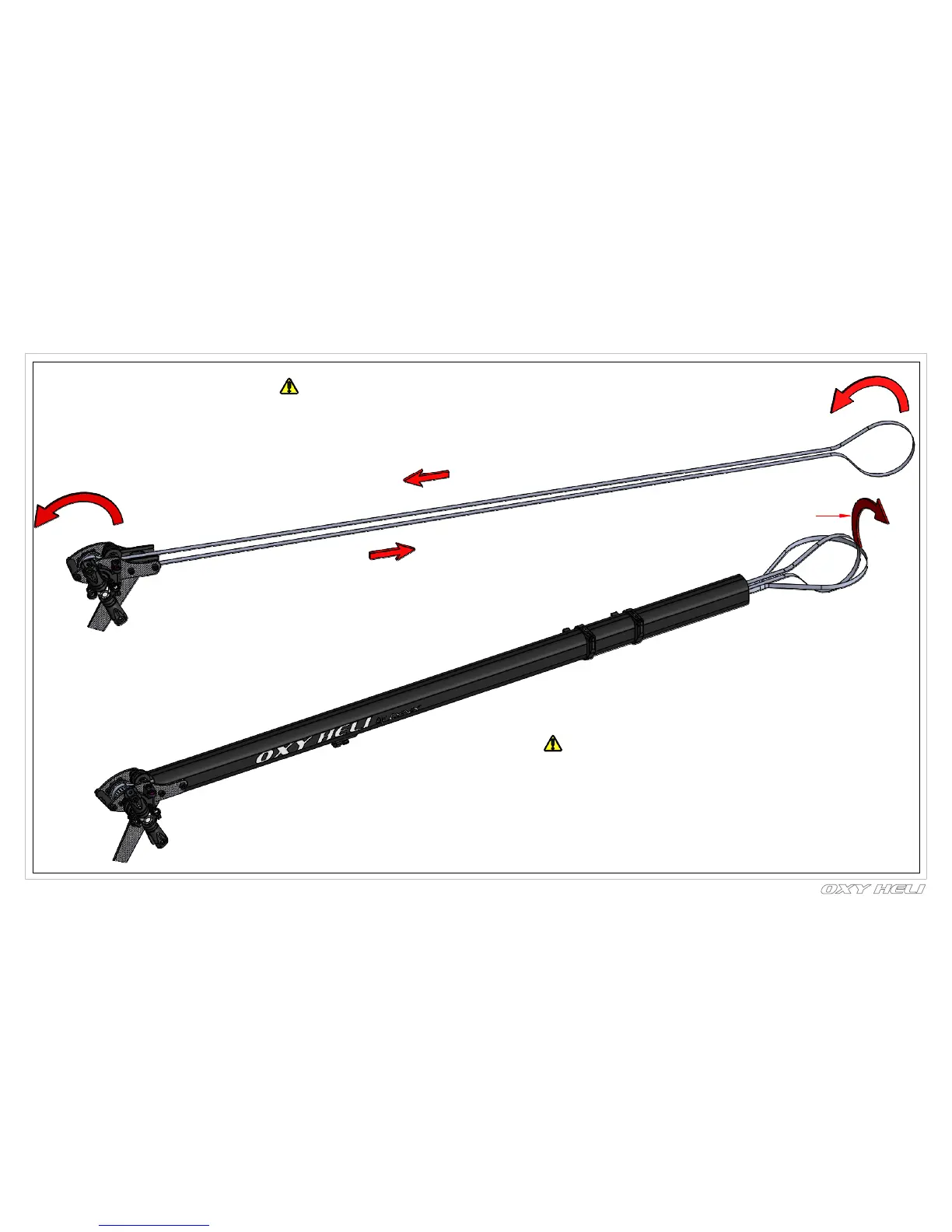

Tail belt is showed straight coming out,
from tail boom. Be careful to
check the belt if not twisted inside the boom.
Use a flashlight to check inside the boom, for better vision.
Rotate the belt 90 degrees CCW as shown.
90 CCW Rotation.
page 16
