Oxy Heli 5 - Page 15

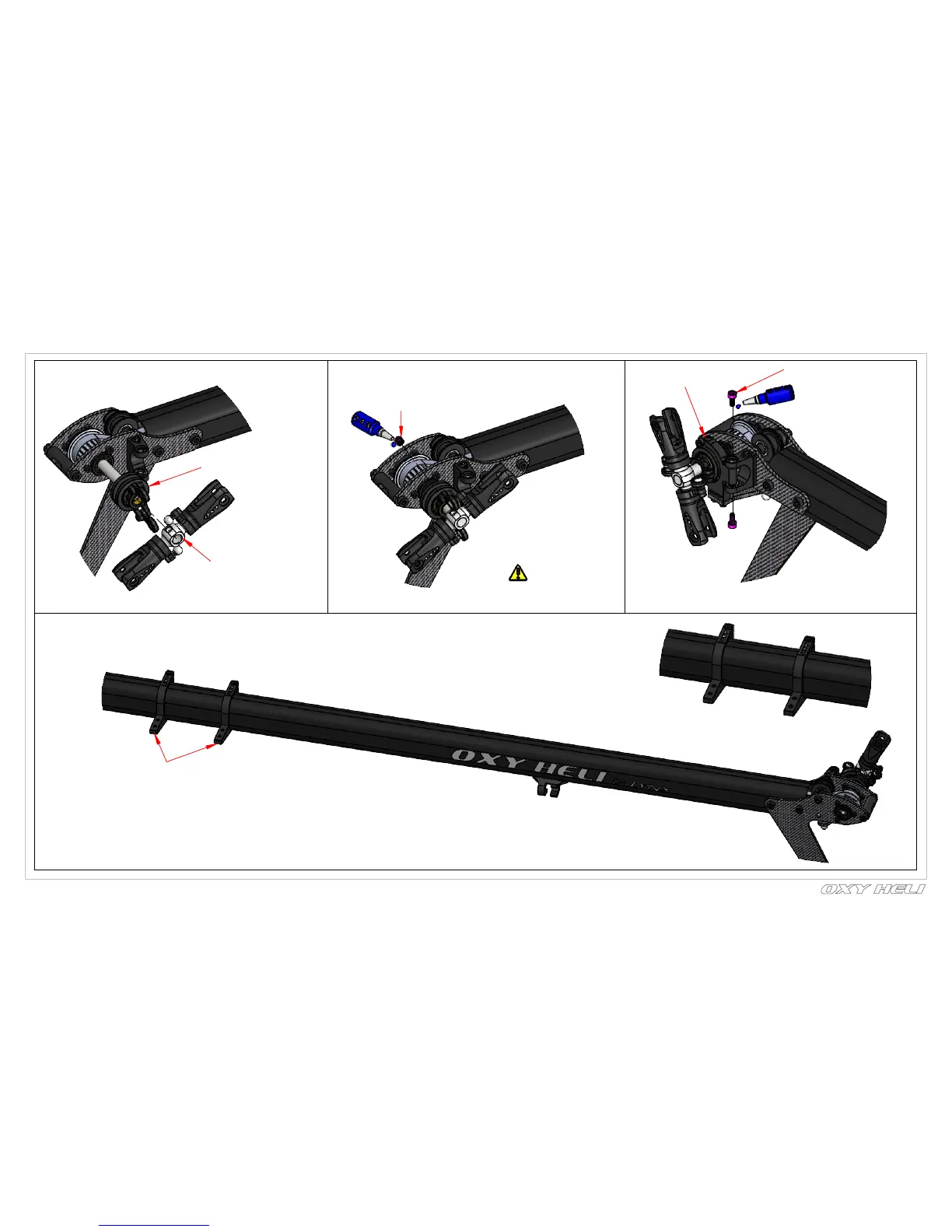

Tail Slider Assembly
Tail Rotor Assembly
Note: Line up the
holes, so the set
screw seats correctly
into tail shaft lock hole.
SCM4x4-
Set Screw M4x4
Loctite 243
Tail Bell
Crank Assembly
2 x TCEM2.5X6 - M2.5X6
Hex Cap Screw
Loctite 243
Tail Servo Support
(Box 3 / Bag 7 )
Note: don't install any screw
Chapter 6: Tail Assembly
page 15
