Chapter 6: Tail Assembly
Fine Adjust Shims Note :
In order to give fine adjustment options,
in the Extra Hardware Bag you will find
extra shims 6X8X0.1.
Start assembly WITHOUT any
shims. If Tail Shaft has sideways play
more than 0.2mm,
add shims as required, to one side, as shown.
PRO TIPS: For best Tail performances little
side play is recommended.
Note: all screws in this step
need loctite during assembly.
before install any shim
read carefully fine
adjustment shims note.

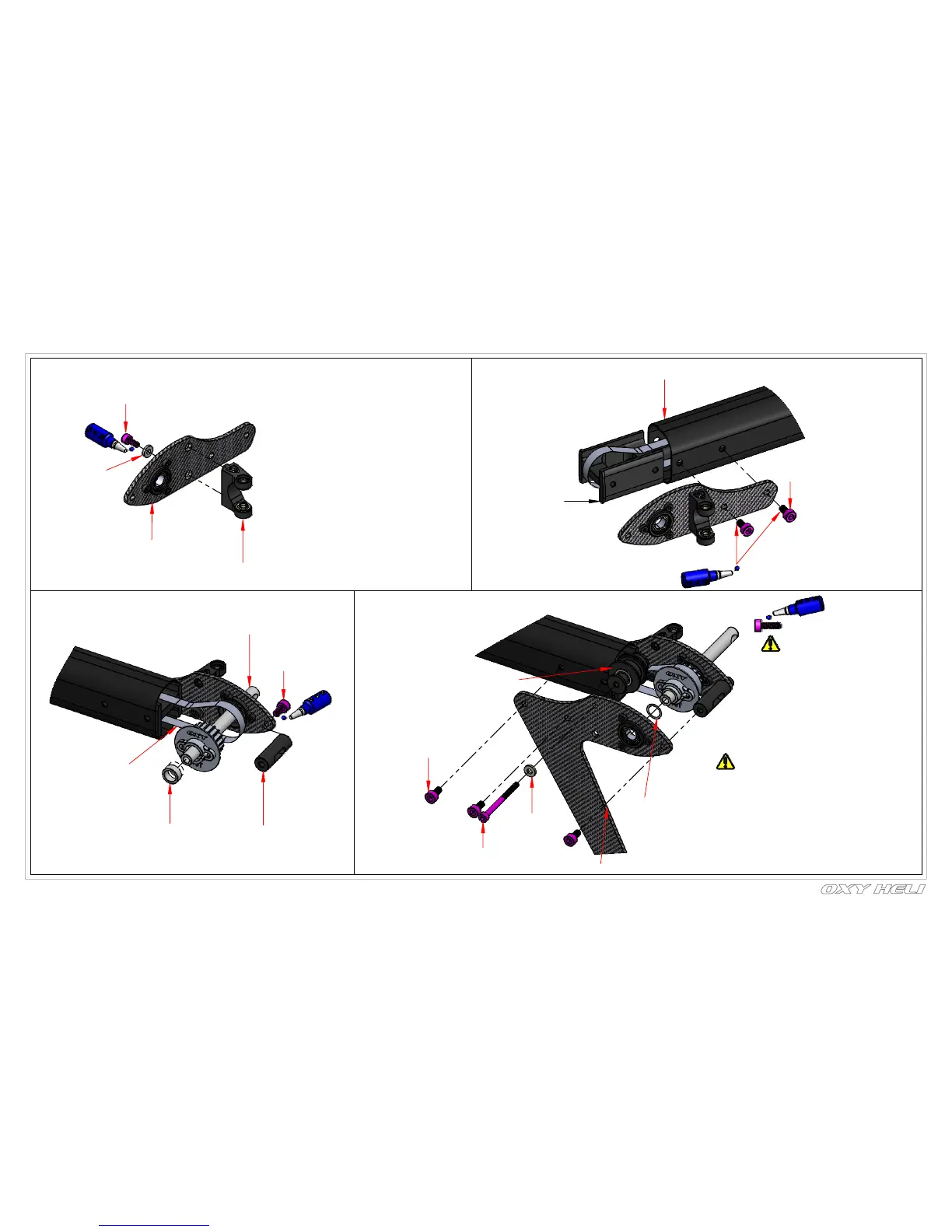

Tensioner Assembly
3 x M3X6
Hex Cap Screw
Vertilcal Fin Plate
TCEM2.5X30 - M2.5X30
Hex Cap Screw
M2.5 Washer
Tail Shaft Assembly
1 x M3X6
Hex Cap Screw
OXY0821-OXY5
Tail Case Rod
M2.5 Washer
M2.5X6
Hex Cap Screw
Tail Bell Crank Suppport Assembly
Right Tail Case Assembly
2 x M3X6
Hex Cap Screw
HTD3M 1698 Timing Belt
Tail Case Insert
Tail Boom Assembly
Loctite 243
Loctite 243
Loctite 243
Loctite 243
Tail Belt
(Box3/bag 6)
OXY1061
Bushing 6x8.5x3.6
page 14
