31
0.60
Carbon Rod
DR1252-A-Linkage Ball
Step 1
Note: to install this
pin screw rotate
counter clock wire
Note Pin Screw Thread:
Pin Screw
Oxy designed the Pin Screw with
a counter clockwise thread. This
will help on the final locking
operation. Be careful to follow our
instructions to get a perfect assembly
OXY0620-Guide
Push Rod
Note: Install the Pin Screw
and leavea gap as shown.
Step 2
Important Note:
This part, for tuning reasons,
comes factory pre assembly,
it's ready to use.
Step 3
Push the part inside the
boom sockets as shown
Slide the parts as shown
Step 4
In order to lock the tail push rod
support, use a Flat Screw Driver
and turn clockwise. Do not
over tighten.
Step 5
Tail Push Rod Assembly

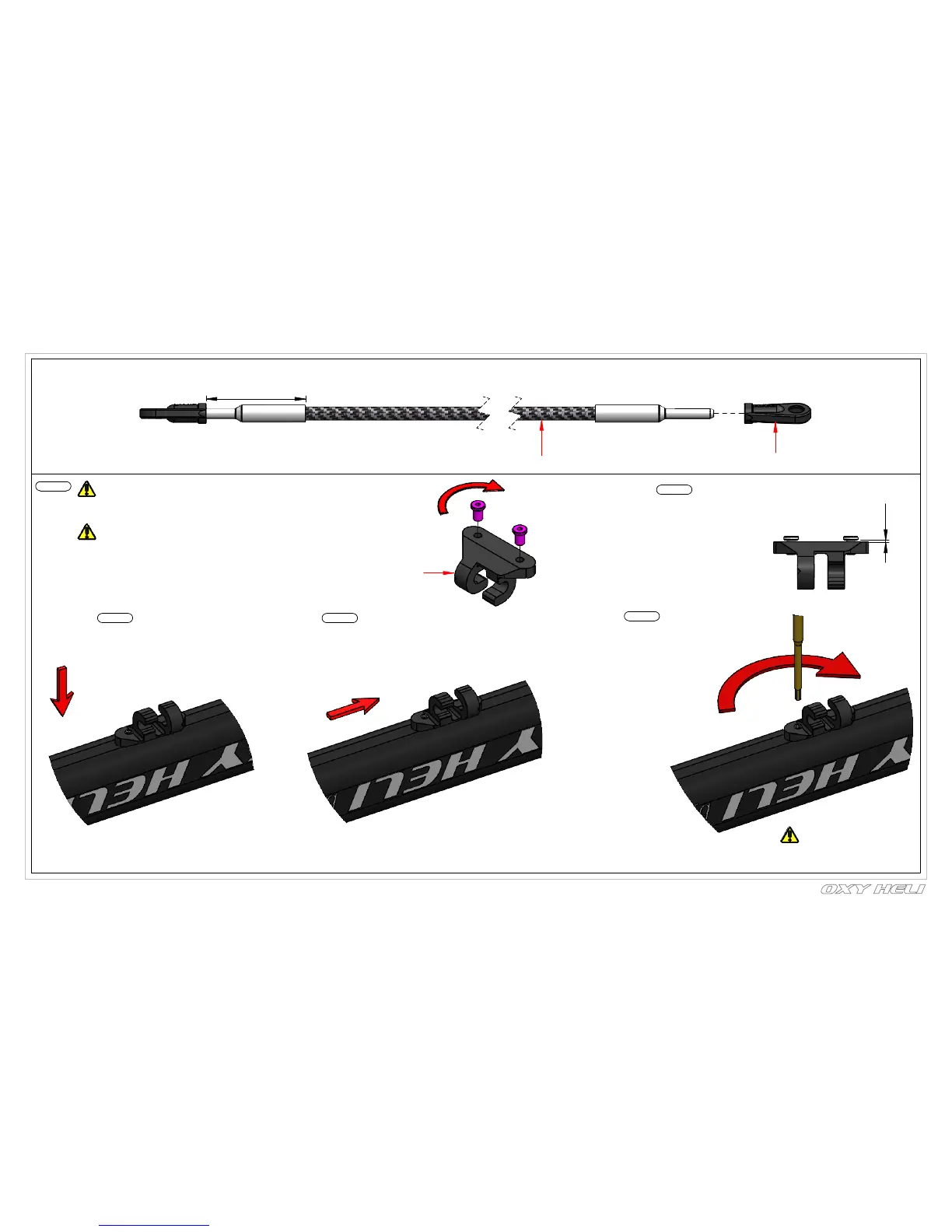

Chapter 6: Tail Assembly
page 13
