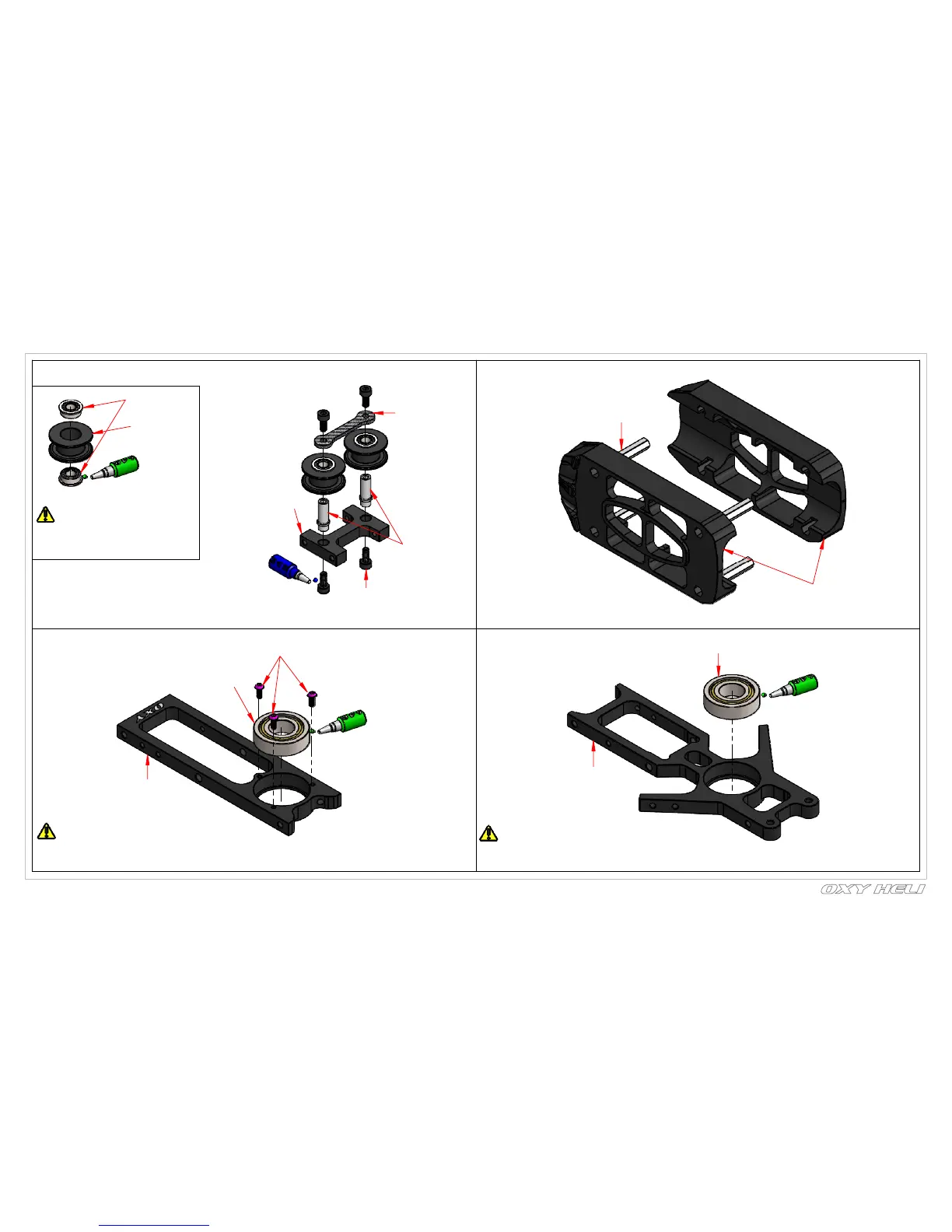

Front Pulley Guide Belt
( Box3/bag 8 )
Chapter 7: Main Frame Assembly
pulley guide belt
4x8x3 Flange Bearing
4 x M2.5x6 Hex Cap Screw
loctite 243
Pulley Guide Belt Pin
Pulley Guide
Belt Support
loctite 648
Important Note:
This part, for tuning reasons,
comes factory assembled,
it's ready to use.
Belt Pulley Bridge
4 x Hex Rod 5 X 28
Boom Clamp Mount
M2x5 Button Screw
10x22x6 Radial Bearing
Upper Bearing Block
10x22x6 Radial Bearing
Middle Bearing Block
loctite 648
loctite 648
Upper Bearing Block Assembly
( Box3/bag 10 )
Middle Bearing Block Assembly
( Box3/bag 11 )
Boom Clamp Mount
( Box3/bag 9 )
Important Note:
This part, for tuning reasons,
comes factory assembled,
it's ready to use.
Important Note:
This part, for tuning reasons,
comes factory assembled,
it's ready to use.
page 19
