Oxy Heli 5 - Page 20

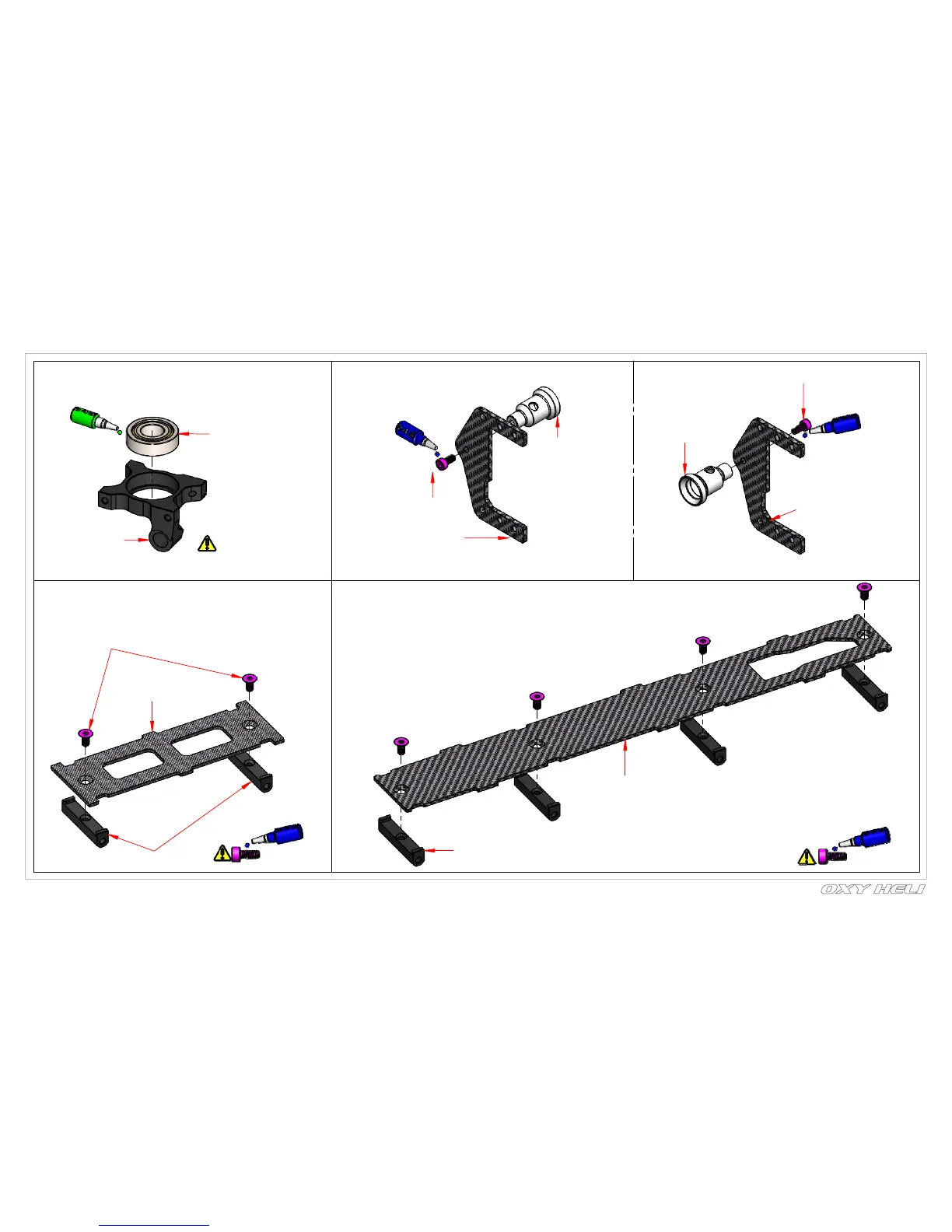

Lower Bearing Block Assembly
( Box3/bag 12 )
loctite 648
Lower Bearing Block
Important Note:
This part, for tuning reasons,
comes factory assembled,
it's ready to use.
10x22x6 Radial Bearing
Canopy Mount Assembly
( Box3/bag 13 )
Canopy Mount Stiffener
Canopy Mount Stiffener
M2.5x6 Hex Cap Screw
Canopy
Mount Female
M2.5x6 Hex Cap Screw
Canopy
Mount Female
Left Side
Right Side
loctite 243
loctite 243
Chapter 7: Main Frame Assembly
ESC Plate Assembly
( Box2/bag 17 )
CF Middle Plate Assembly
( Box2/bag 18 )
ESC CF Plate
2 x M3x6 Flat Head Screw
2 x Frame Spacer
Middle CF Plate
4 x Frame Spacer
add loctte 243
to all Screw
add loctte 243
to all Screw
page 20
