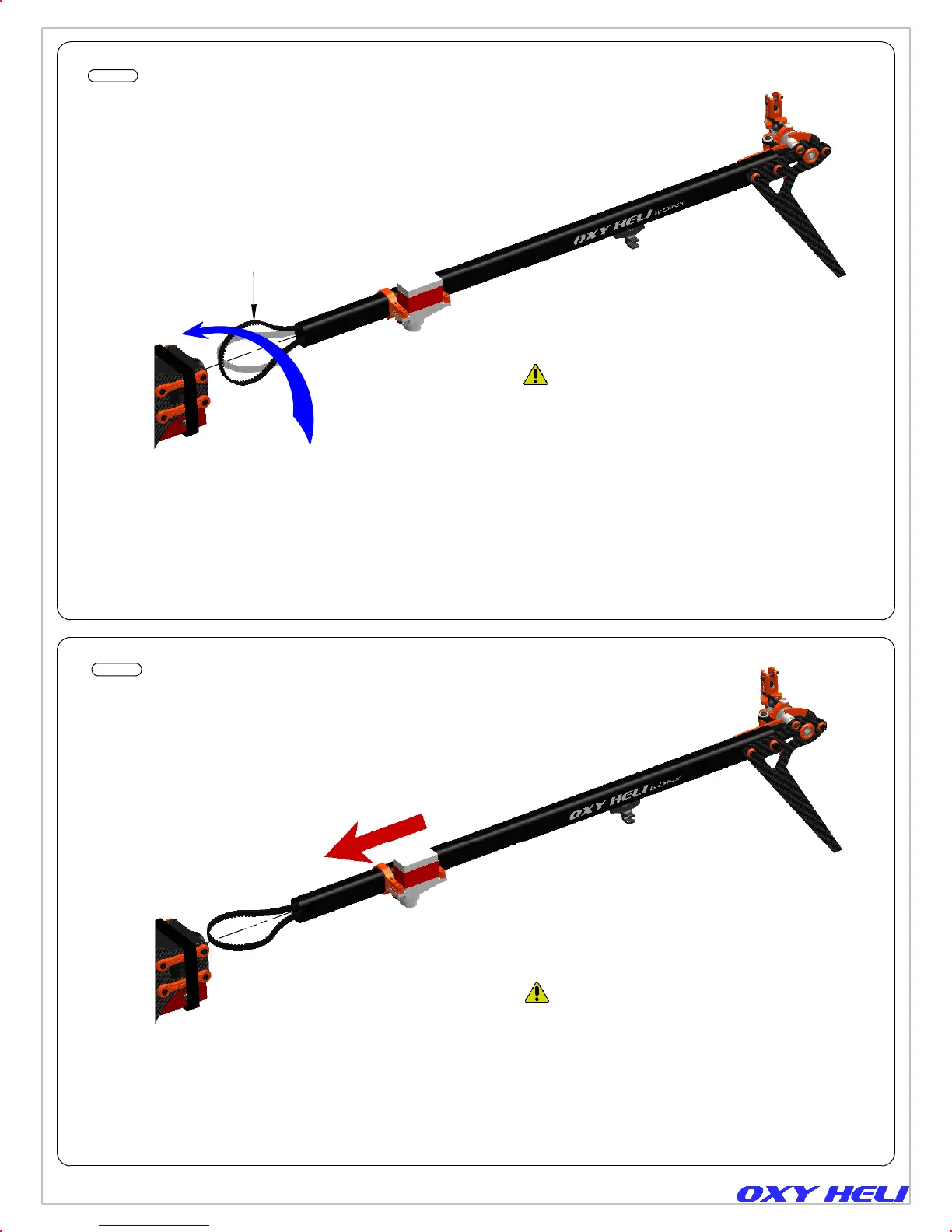

Rotate belt as shown
Page 19
Note: With the belt in this position, insert the
tail boom and finalize assembly following
the next step.
Loosen the Tail Boom Clamp screws for easy
insertion.
Step 2
Belt Adjustment.
In this picture the tail belt is shown straight
coming form the tail pulley. Be careful to
check the belt is not twisted inside the boom.
Use a light to check inside the boom. Then be
sure to rotate the belt 90 degrees as shown.
When holding the boom with the tail case
away from you, rotate the belt 90 degrees
counter clockwise.
Step 1
Belt Adjustment.
Chapter 13, Transmission Assembly
Instruction Manual Rev 1
