OXY0134
Leveler Tool

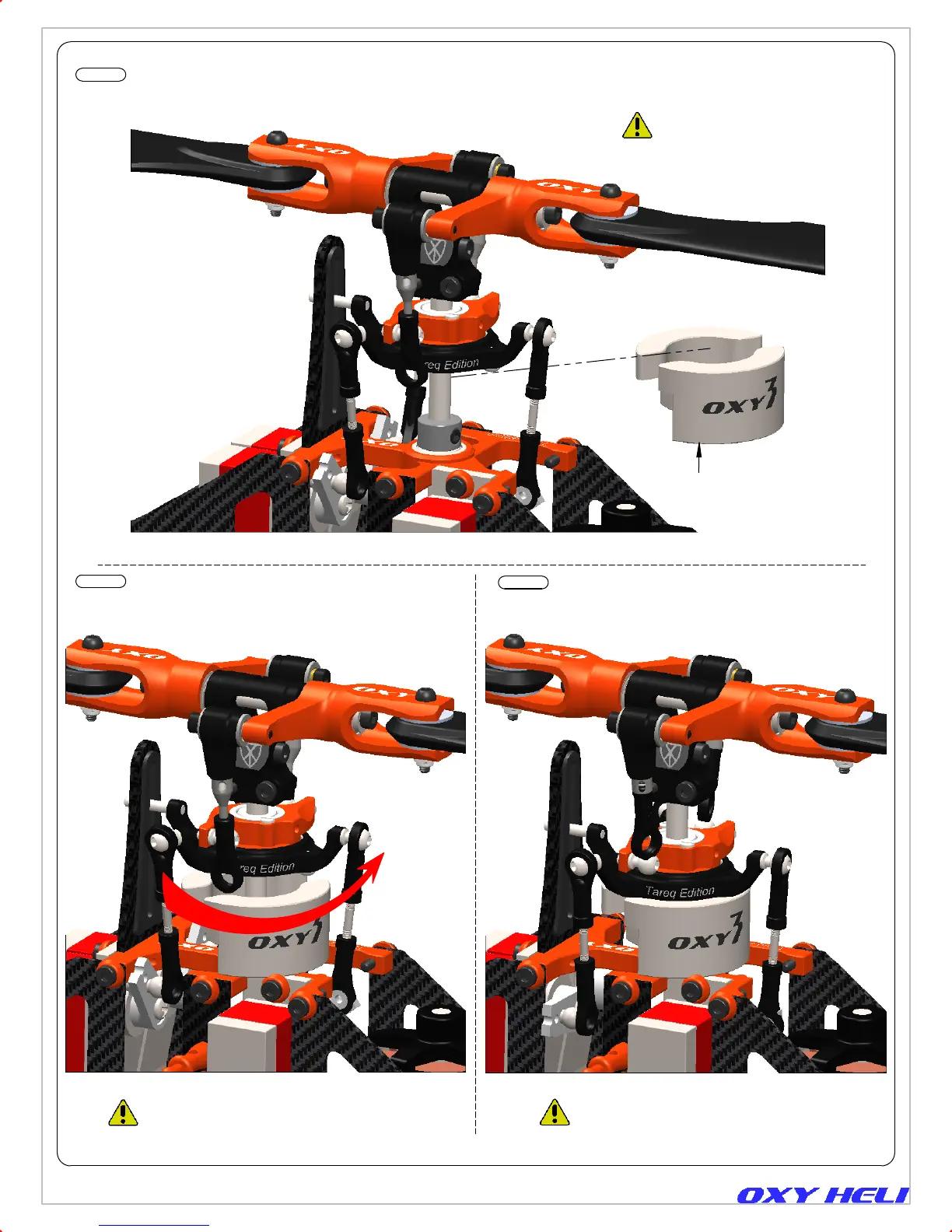

Lift up swash plate as shown to have
space for insert Leveler.
Page 34
Step 1
Step 2
Rotate Swash Plate Leveler as shown.
Step 3
Note: pay attention screws's position at the bottm
of Swash Plate. Leveler's position as shown after
rotating.
Chapter 20, Adjustment Servos with Leveler
Instruction Manual Rev 1
