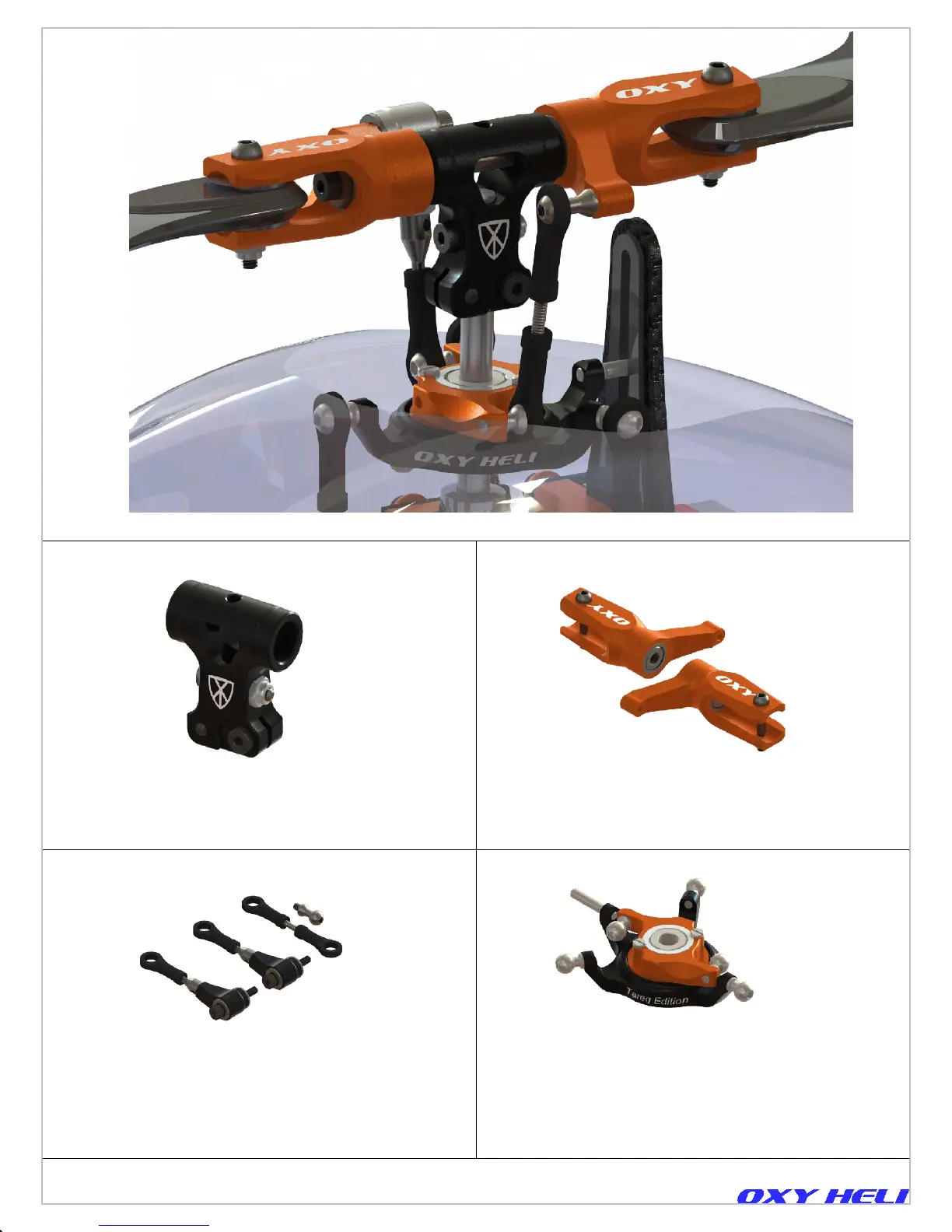

SP-OXY3-111 - OXY3 - Center Hub

SP-OXY3-112 - OXY3 - Ultra Main Grip, Set

SP-113 - OXY3 - Aluminum DFC/ Hybrid Arm

SP-OXY3-114 - OXY3 - Swashplate

2 x Main Grip

4 x MR83_ZZ-3x8x2.5 Radial Bearing

2 x 3x8x3.5 Thrust Bearing

2 x 3x4x0. 1 Shim Washer

2 x M2X14 Shoulder Buttom Cap Screw

2 x M2-Lock Nut

2 x DFC Arm

4 x 2x5x2.3 Flange Bearing

2 x DFC Rod Short

4 x 4mm Linkage Ball

2 x DFC Arm Spacer

2 x 2x3.5x0.5 Shim Washer

2 x M2X14 Shoulder Hex Cap Screw

2 x Thread Rod M1.6 x 14

1 x 4x5.4_link_ball

1 x Center Hub

1 x M2X10 Shoulder Hex Cap Screw

1 x M2-Lock Nut

2 x M2x6 Hex cup screw

1 x Lower Swash Plate

1 x Upper Swash Plate

1 x Radial Bearing 12x18 H4

1 x Ball Holder

1 x Center Ball

1 x 2x11.5 Antirotation Pin

7 x Inner Swash Plate Linkage Ball

2 x M1.6X3 Buttom Screw

2 x M1.2x2 Special Screw
