Oxy Heli OXY 3 - Page 40

1
2
1
3
3
3
3
4
3
3
5
5
6
7
1
8
9
10
10
48
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
26
27
28
29
29
30
31
32
33
34
46
49
46
39
40
41
42
43
44
45
47
1
38
37
36
35
Page 39
POS COD Name Specification Quan
1 TCEM2x5 M2x5 Hex Cap Screw Alloy Steel 8
2 TBEM2X4 M2x4 Button Screw Alloy Steel 1
3 TBEM2X5 M2x5 Button Screw Alloy Steel 7
4 OXY0078
M2X10 Shoulder Buttom
Screw
Alloy Steel 2
5 OXY0054 3x4x0. 1 Shim Washer Brass 4
6 OXY0053 4.2X6X0.2 Washer Brass 2
7 OXY0055 2X3.5 W 0.5 Shim Washer SST 2
8 MR63-W2 Radial Bearing 3X6X2 STD 4
9 MR63_ZZC Radial Bearing 3X6X2.5 STD 2
10 MF682ZZ Flange_Bearings_2x5x2.3 STD 2
11 MF73_ZZ/W3 Flange_Bearings_3x7x3 STD 2
12 MF74-ZZ Flange_Bearings_4x7x2.5 STD 2
13 F3-6G-W3.5 Thrust Bearing 3x6 W3.5 STD 2
14
DR1715
Vertical Fin Block CF 2mm 1
15
DR1717
Tail Case Bearing Block 6061-T6 1
16 OXY0072 Tail Case Cover POM 1
17 OXY0046 Flange Tail Pulley POM 2
18 OXY0045 15T Tail Pulley 6061-T6 1
19 OXY0073 Tail Case Center 6061-T6 1
20 DR1718 Square Boom 11X14X0.5X318 6061-T6 1
POS COD Name Specification Quan
21 OXY0071 Bearing Bushing Steel 1
22 OXY0060 Tail Slider Bushing Brass 1
23 DR0810 Tail Pitch Slider Ring Brass 1
24 OXY0063 Tail Pitch Slider Haft Moon 6061-T6 1
25 OXY0064 Link Control POM 2
26 OXY0062 Bushing 2 X 3 H2 Brass 2
27 OXY0058 Bell Crank Arm 6061-T6 1
28 DR1688 Tail Bell Crank 6061-T6 1
29 OXY0057 Tail Pin Screw Steel 2
30 OXY0044 Tail Shaft SST 1
31 OXY0051 Tail Grip 6061-T6 2
32 OXY0049 Tail Hub SST 304 1
33 OXY0050 Linkage Ball 4 X 3 M2 SST 2
34 OR-2X1 O-RING ID 2 - W 1 Rubber 2
35 DR1719 CF Rod 214 mm CF 1
36 DR1076 Tail Push Rod Terminal POM 1
37 DR1708 Thread Rod M1.6X10 SST 2
38 OXY0011 4 mm Linkage Ball POM 2
39 OXY0067 Guide Push Rod POM 1
40 OXY0084 Tail Servo Mount 6061-T6 2
41
OXY0092 4X2X4.2 M2 Linkage Ball SST
1
42
OXY0085 Servo Arm
POM 1
43
TCEM2X6 Hex Cap Screw M2x6
SST 4
44 OXY0068 Pin Screw SST 2
45 DR0268 Frame C washer M2 6061-T6 6
46 SCM3X3 Set Screw M3x3 SST 1
47
Hex Nut M2 Alloy Steel
1
48 MR73_ZZ
Radial bearing 3x7x3 STD
1
49
DR1716
Tail Case - Bearing
Bushing
6061-T6
1

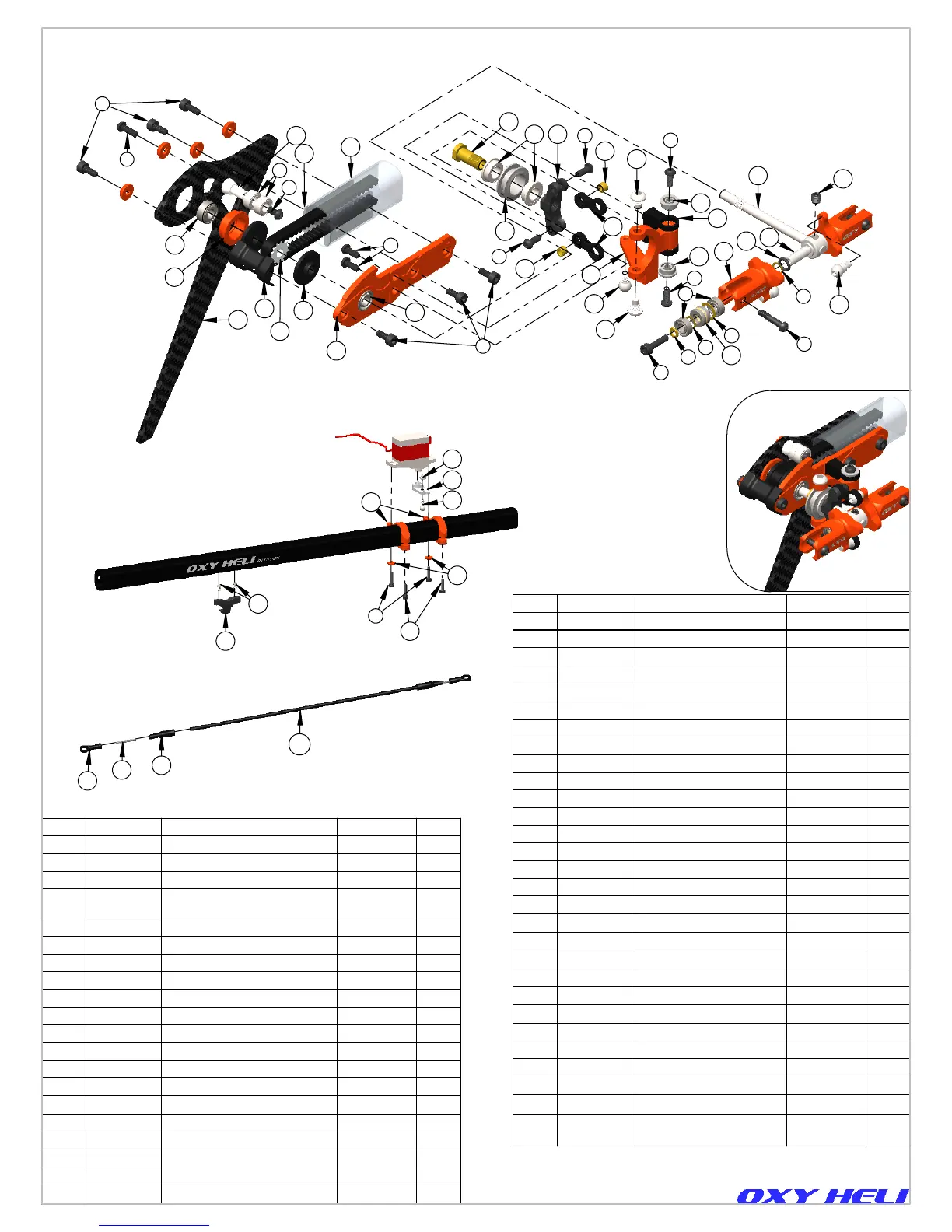

Chapter 21, Exploded view, Tail System
