Page 38
POS COD Name Specification Quantity
1 TCEM2X5 M2x5 Hex Cap Screw Alloy Steel 4
2 TCEM2X6 M2x6 Hex Cap Screw Alloy Steel 6
3 OXY0076 M2X10 Shoulder Hex Cap Screw Alloy Steel 1
4 TCEM2X14 M2x14 Hex Cap Screw Alloy Steel 2
5 OXY0020 M1.2x2 Special Screw SST 2
6 OXY0111 M1.6X3 Button Head Screw Alloy Steel 2
7 SLNM2 Self Lock Nut M2 Alloy Steel 1
8 OXY0137 3.1x5x0.6 Washer Brass 2
9 OXY0055 2x3.5x0.2 Washer Brass 2
10 Oxy0054 3x4x0.1 Washer Brass 2
11 WM2 WM2 Washer M2 SST 6
12 OXY0180 ZEAL Blade Shim 6061-T6 4
13 MF682ZZ Flange Bearing 2X5X2.3 STD 4
14 MR83_ZZ/W2.5 Radial Bearing 3X8X2.5 STD 4
15 MR6701_ZZ Radial Bearing 12x18 H4 STD 1
16 F3-8G_X thrust bearing 3x8 h3.5 STD 2
17 OXY0110 Rubber Dampener Rubber 2
18 OXY0079 Dampener Bushing POM 2
19 OXY0005 Center Hub 6061-T6 1
20 OXY0008 Main Grip 6061-T6 2
21 OXY0007 Spindle Shaft
Hard Steel
1
22 OXY0011 4mm-linkage ball POM 8
23 OXY0010 Thread Rod M1.6 X 14 SST 2
24 DR0604 300X - DFC Rod Short SST 2
25 OXY0009 Aluminum DFC Arm 6061-T6 2
26 OXY0014 Lower Swash Plate 6061-T6 1
27 DR1689 Upper Swash Plate 6061-T6 1
28 OXY0017 Center Ball SST 1
29 OXY0016 Ball Holder POM 1
30 OXY0018 Antirotation Pin Steel 1
31 OXY0019 Swash Plate Ball Steel 5
32 OXY0012 2x3.7x4.4 Bushing Brass 2
33 OXY0010 Servo Rod M1.6x14 Steel 3
34 OXY0032 Anti-Rotation Guide CF 1.5 mm 1
35 OXY0085 Servo Arm POM 3
36 OXY0092 4X2X4.2 M2 Linkage Ball SST 3
37 Hex Nut M2 Alloy Steel 3
38 OXY0081 2.1X5.5X1 Washer Brass 2

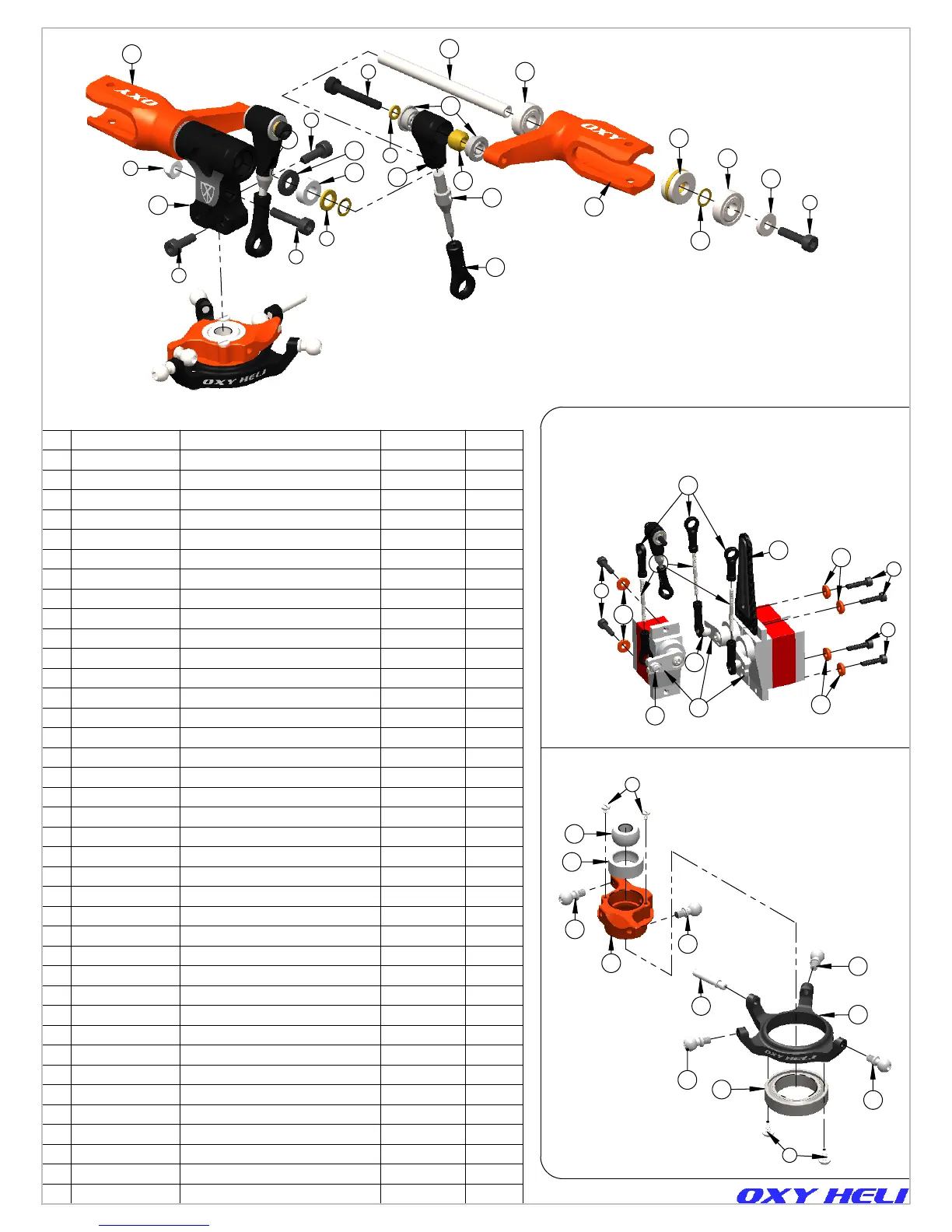

Chapter 21, Exploded View, Head System
Instruction Manual Rev 1
