2 x MR106-ZZ
Radial Bearing
6X10X2.5
2 x OXY0039
Washer 8x10x0.2
OXY0037
Main Pulley
Flange
Note: Bottom face
has a direction arrow.
Note: this face
doesn't have a
step
OXY0041
One Way Sleeve
OXY0040
Shim Washer 6.1X8X0.1
Important Note:
This part, for tuning reasons,
comes factory pre assembled
with grease and loctite. It is
ready to use.
4 x TCEM2X6
Hex Cap Screw
M2X6
OXY0001
Main Gear
Free rotation
Note: use one way sleeve to check the rotation
direction of the one way bearing as shown
Bottom view

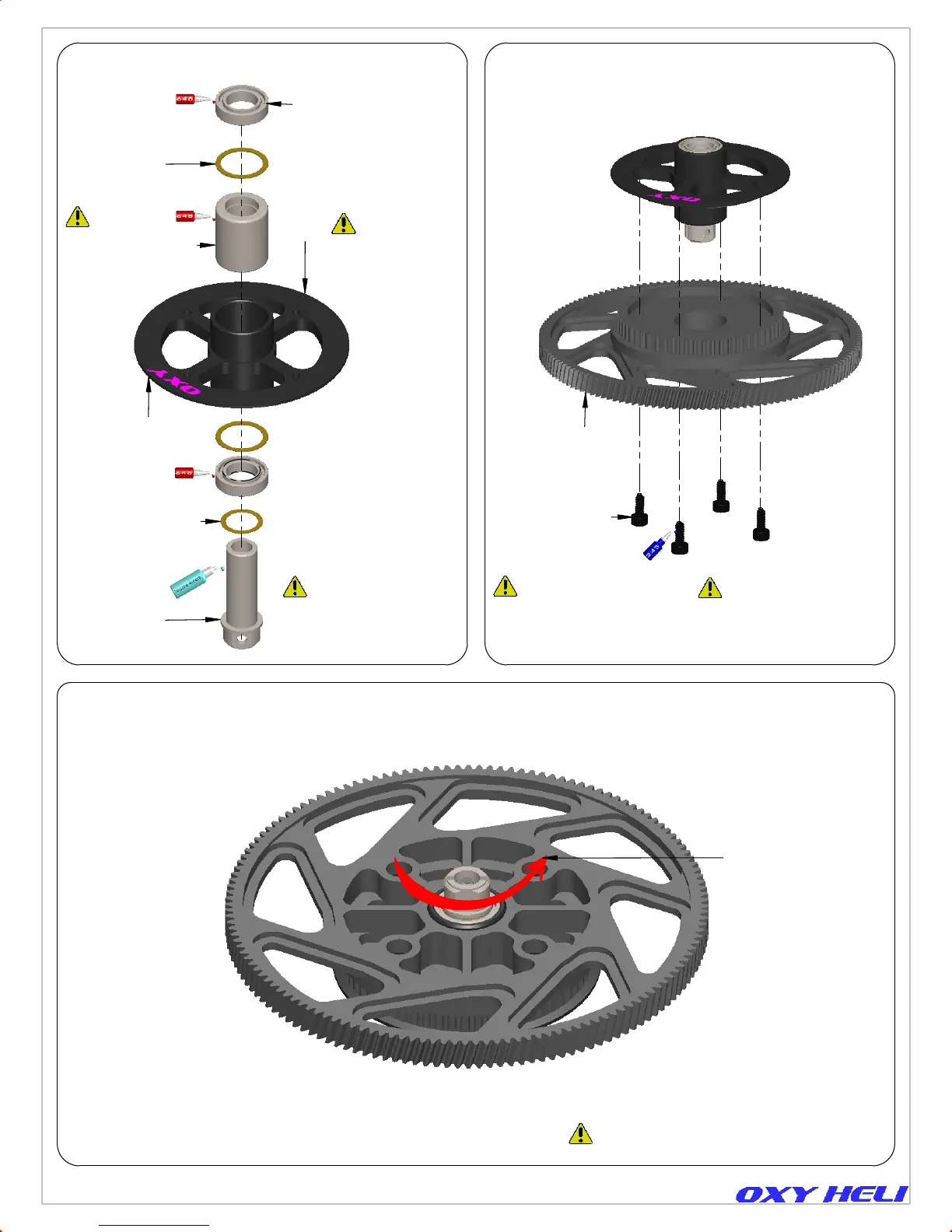

One Way Hub Assembly.
(Box 02 / Bag 9)
Main Gear Assembly.
Page 18
Important Note:
This part comes pre assembled
WITHOUT thread lock. Follow
the instruction for final assembly.
One Way System Direction Check.
Note: Tighten these four screws
with similar toque. Tighten each
gradually in a criss-cross manner
to get similar torque.
Chapter 13, Transmission Assembly
Instruction Manual Rev 1
To Next Page
