Oxy Heli OXY 3 - Chapter 9 - Motor Installation Page 14; Chapter 21 - Exploded View

11
15
19
16
12
22
17
18
10
21
23
24
9
20
10
27
14
13
6
6
1
5
3
3
3
3
4
2
4
7
7
8
25
26
3
Page 36
POS CODE NAME SPECIFICACTION QUAN
1 TBES2X6 M2x6 Self Tapping Screw Alloy Steel 4
2 TCEM2X4 M2x4 Hex Cap Screw Alloy Steel 4
3 TCEM2X5 M2x5 Hex Cap Screw Alloy Steel 14
4 TCEM2x6 M2x6 Hex Cap Screw Alloy Steel 10
5 TCEM2X8 M2x8 Hex Cap Screw Alloy Steel 8
6 TBEM2.5x5 M2.5x5 Button Hex Cap Screw Alloy Steel 4
7 TBEM2x4 M2x4 Button Hex Cap Screw Alloy Steel 6
8 DR0268 Frame C washer M2 60661-T6 32
9 MR52-W2 Radial Bearing 2x5x2 STD 4
10 MR104ZZ-W4 Radial Bearing 4x10x4 STD 3
11 OXY0030 Main Frame CF 1mm 2
12 OXY0033 Break Way Canopy Mount CF 1mm 2
13 OXY0031 Bottom Plate CF 1mm 1
14 OXY0149 Landing Gear skid CF 1mm 2
15 OXY0035 OXY0035 POM 1
16 OXY0026 Upper Main Shaft Bearing Block 6061-T6 1
17 OXY0027 Middle Main Shaft Bearing Block 6061-T6 1
18 OXY0028 Lower Main Shaft Bearing Block 6061-T6 1
19 OXY0029 Motor Mount 6061-T6 1
20 OXY0023 2x13.5 Pin SST 2
21 OXY0024 Pulley Guide POM 2
22 OXY0025 Canopy Mount POM 2
23 OXY0022 Lock Rod 6061-T6 4
24 OXY0002 Boom Clamp POM 2
25 DR1681 front landing gear support 60661-T6 1
26 DR1682 Back Landing Gear Support 6061-T6 1
27 DR1806 Aluminum Stiffener 6061-T6 4

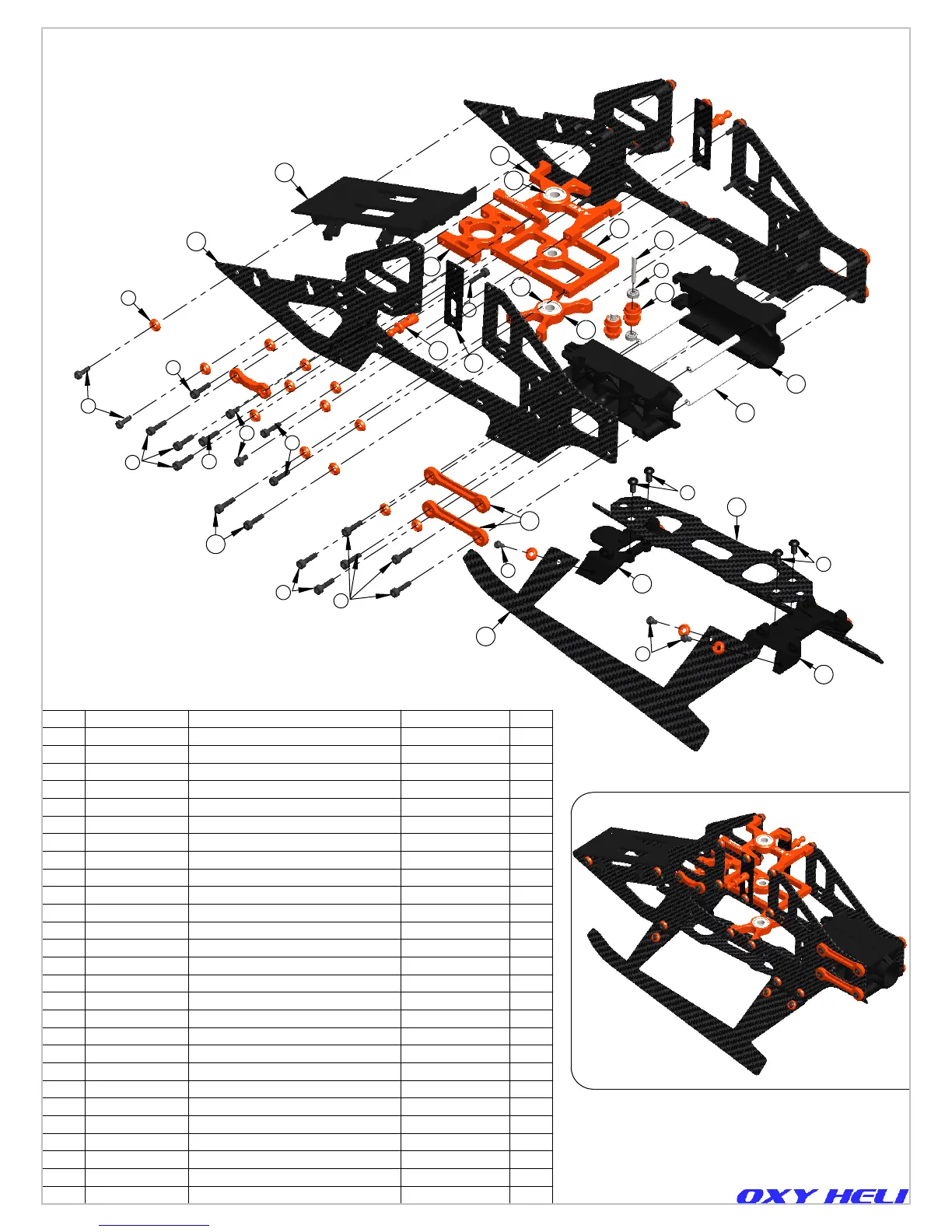

Chapter 21, Exploded View, Carbon Frame
Instruction Manual Rev 1
