Oxy Heli OXY 3 - Chapter 17: Servo Installation; Front Cyclic Servo Assembly.; Left and Right Cyclic Servos Assembly.

2 x TCEM2X5
M2x5 Hex Cap Screw
2 x DR0268
Frame C washer M2
90°
4 x DR0268
Frame C washer M2
4 x TCEM2X6
Hex Cap Screw M2x6
OXY0276
Plastic Carbon Anti-
Rotation Guide
90°
90°

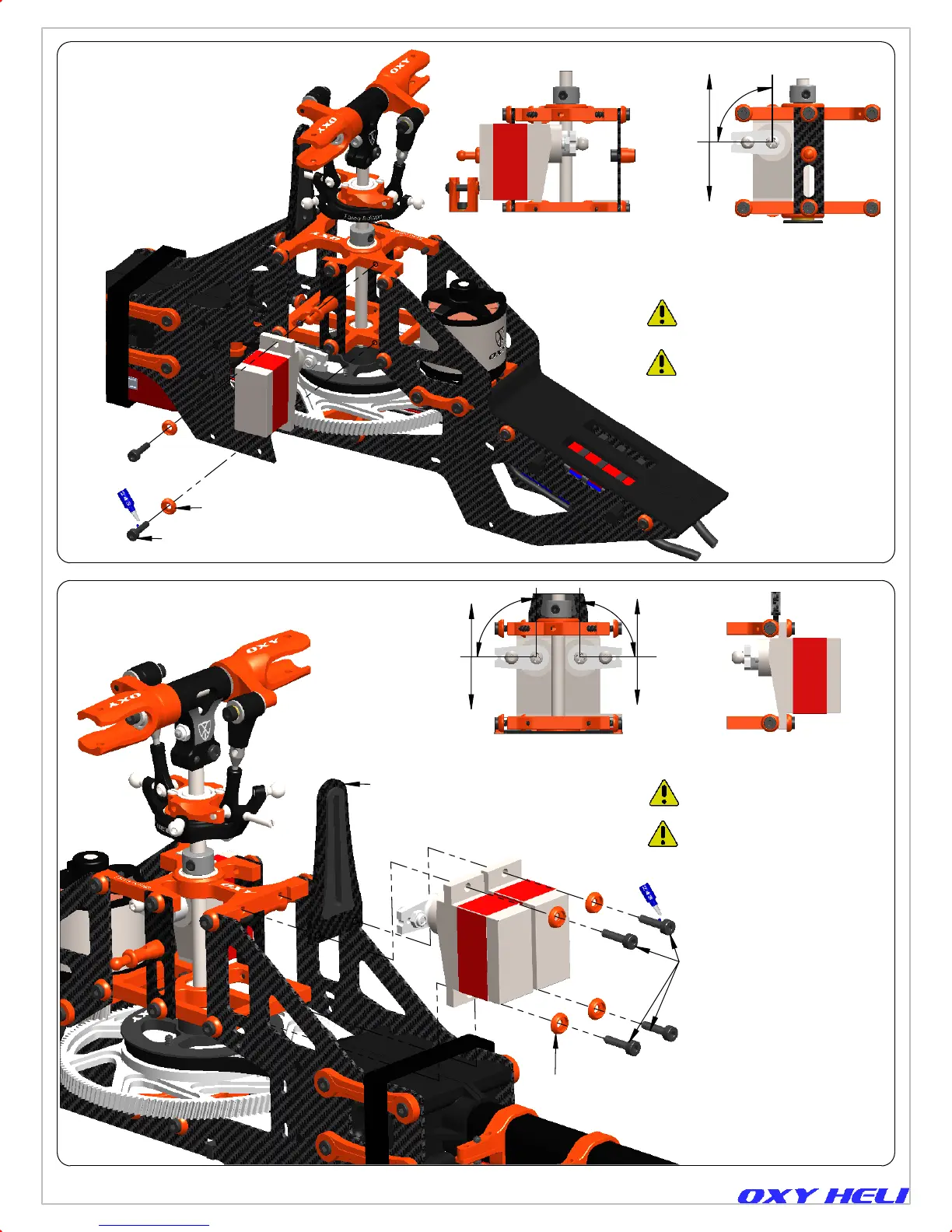

Front Cyclic Servo Assembly.
Left and Right Cyclic Servos Assembly.
Page 29
Front Heli Side
Left Heli Side
Arm position with zero deg pitch
and centered cyclic stick.
Arm position with zero deg pitch
and centered cyclic stick.
Servo lock screws come screwed
into the Top and Middle Bearing
Block.
Servo lock screws come screwed
into the Top and Middle Bearing
Block.
Negative
Pitch
Positive
Pitch
Negative
Pitch
Positive
Pitch
Positive
Pitch
Negative
Pitch
Left Heli Side Front Heli Side
Chapter 17, Servo Installation
Instruction Manual Rev 1
