Before Fly:
Now complete the setup of your FBL system. In the Accessories Bag you will find an Oxy 4 Swash Plate Leveler.
This Tool is designed to fit under the Swash Plate without disassembly any parts. This simple tool will both level the swash and give
the Zero Pitch Position.
Starting gyro gain: The Oxy 4 was designed around famous FBL Systems (IKON / Brain / mini V-Bar), and we suggest you start with
the following standard set up and adjust after test flying.
Cyclic Set Up:
Use suggested settings for 450 Helicopters and adjust after test flights.
See our table on page 15 for RPM and Pitch Settings. Cyclic Max pitch should be +/- 10.5 deg.
Tail Set Up:
Use the suggested settings for 450 Helicopters BUT start with a lower Tail Gain
IKON / Brain = 20%
Mini V-Bar = 250 Heli suggested gain.
Chapter 19: Adjustment Servo With Leveler
page 34

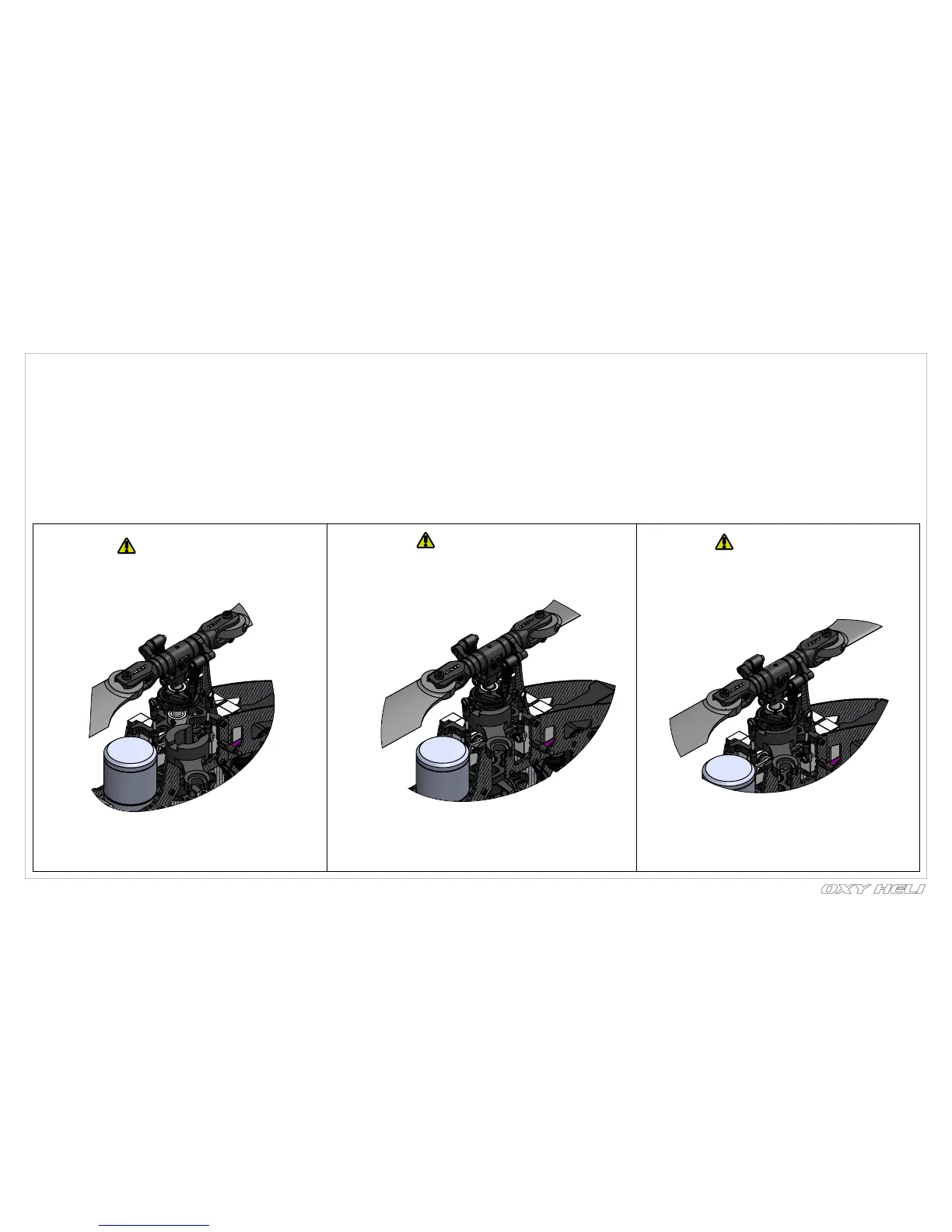

Lift up swash plate
as shown to have
space for inserting Leveler.
Rotate Leveler as shown
Lower Swash Plate down
untill Swash Plate
touch Leveler as shown.
