Oxy Heli OXY4 - Chapter 11 - Main Rotor Assembly

Ref 35mm
A
loctite 468
loctite 468
4.2mm
4mm

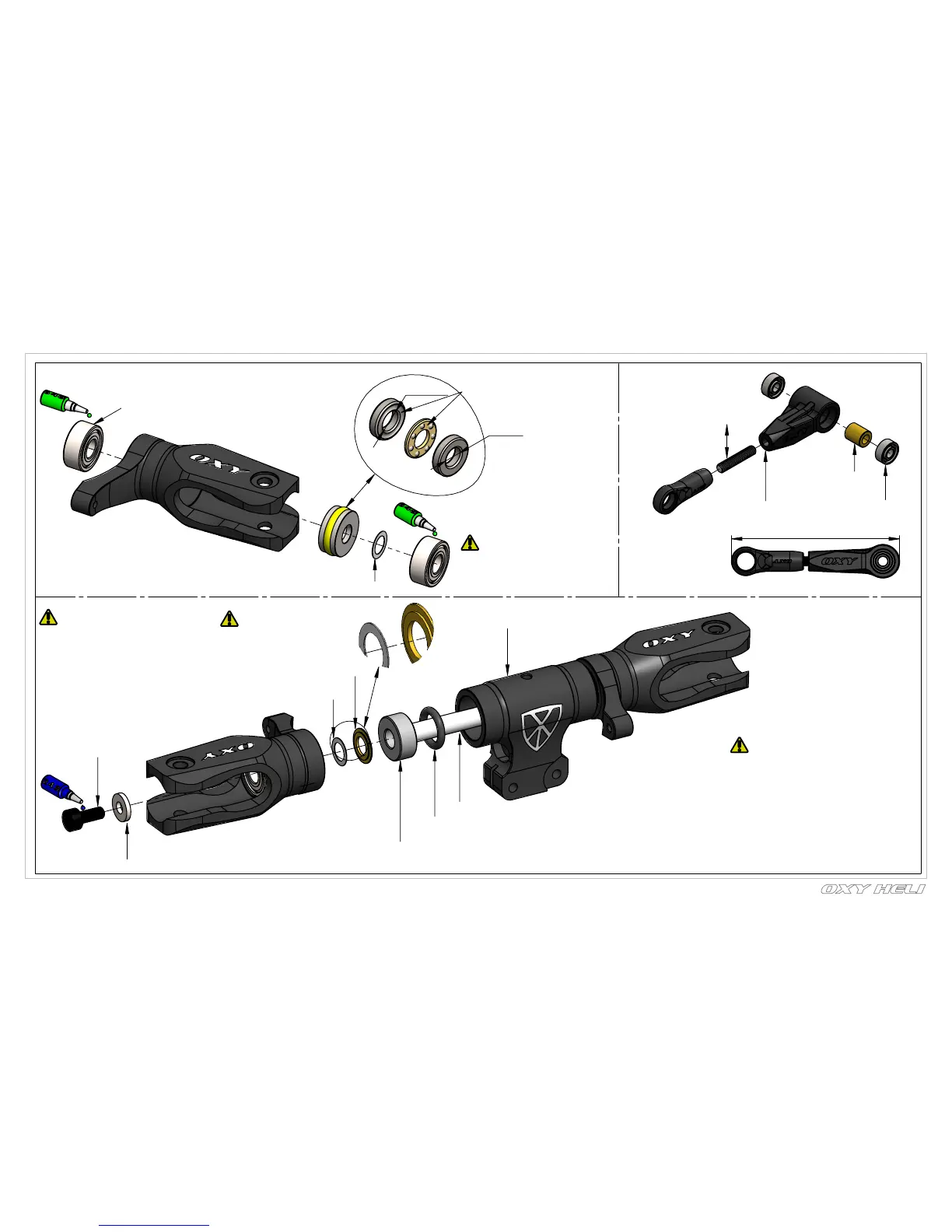

Chapter 11: Main Rotor Assembly
page 24
2 x MR104_ZZC -
4X10X4 Radial Bearing
F4-10G - 4X10X4
Thrust Bearing
Shim 4x6x0.1
Important Note:
This part, for tuning reasons,
comes factory pre assembled
with grease and loctite. It is
ready to use.
add silicone grease
OXY0666 -
Threaded Rod M2X10
OXY0716 -
PL linkage Ball
OXY0734-DFC Arm
OXY0012 -
DFC Arm Spacer
2 x MR52-W2-
2X5X2 Radial Bearing
Fine Adjust Shims:
In order to give fine adjustment options,
the extra Hardware Bag contains extra
Shims 4x6x0.1. Start assembly
with one (each side)pre installed shim.
If the Main Grips have
sideway play, add shims as required.
Each Grips must have the same number
of shims. If you add one shim on the left
side, you need to also add one shim on
the right side
Important Note:
This part comes pre assembled
WITHOUT thread lock. Follow
the instruction for final assembly.
Step Faced to Main Grip
TCEM2.5X6-
M2.5X6 Hex Cap Screw
OXY0332-M2.5 Washer
OXY0324 - Center Hub
OXY0339-Spindle Shaft
OR6x1.5-Oring
ID6x1.5 Shore 80-90
OXY0325-
Damperner Bushing
OXY0680-Damperner Spacer
OXY0361-Shim 4x6x0.1
Main Rotor Assembly
( Box 3/ Bag 17 )
loctite 243
