Oxy Heli OXY4 - Chapter 7: Main Frame Assembly

page 15

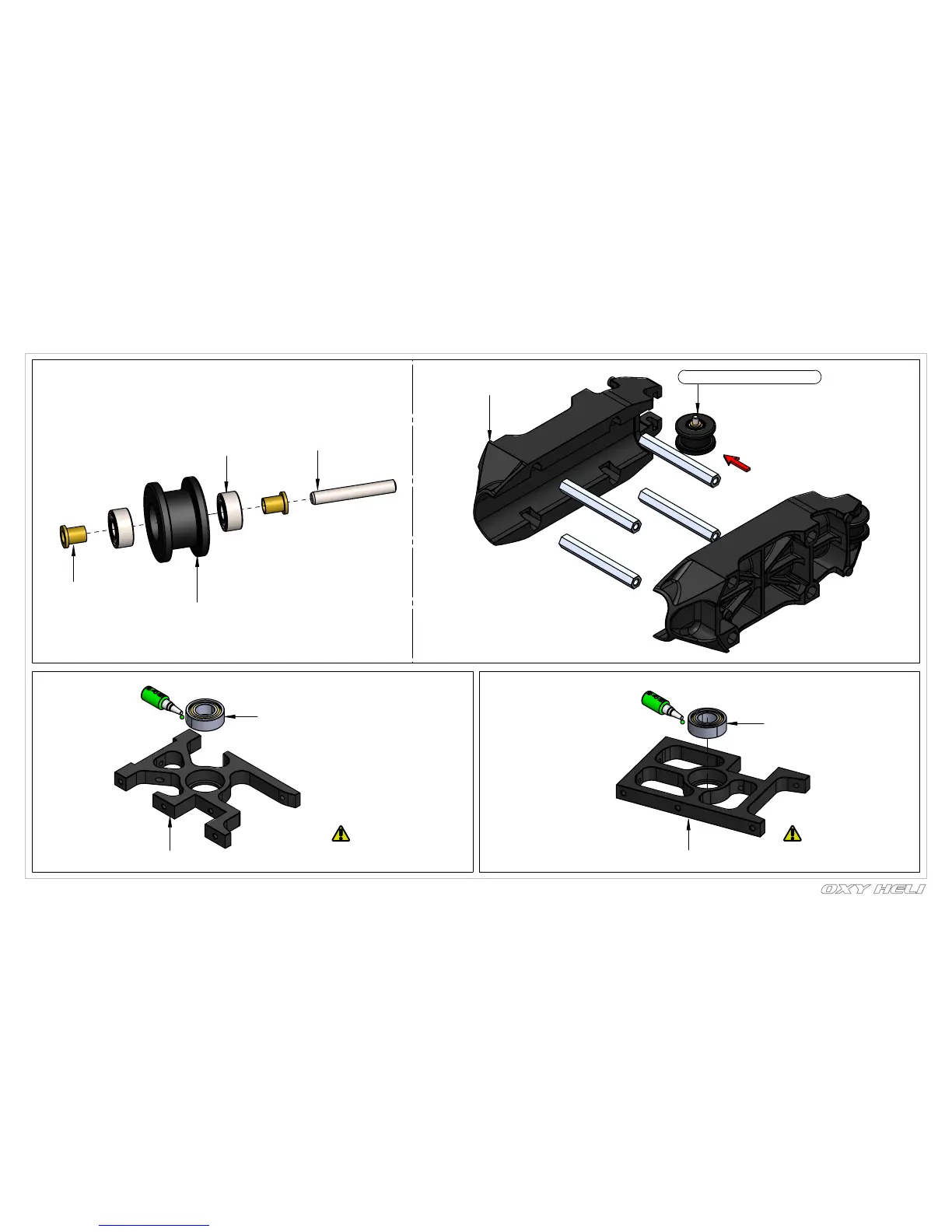

Chapter 7: Main Frame Assembly
Install the Pins into the Pulley
Guides and press completely into
the Tail Boom Clamp Socket Lips.
OXY0660 - Hexagon Rod
2 x Pulley Guide Belt Assembly
OXY0683 - Boom Clamp
OXY0668-Bell Crank Bushing
OXY0725-Pulley Guide Belt
OXY0023-2X13.5 PIN
SMR682Z-ZZ -
2.5X6X2.6 Radial Bearing
OXY0352 - Upper Bearing Block
RM126-ZZ - 6x12x4
Radial Bearing
OXY0352 - Upper Bearing Block
RM126-ZZ - 6x12x4
Radial Bearing
Boom Clamp Assembly
( Box 3/ Bag 9 )
Upper Bearing Block Assembly
( Box 3/ Bag 10 )
Middle Bearing Block Assembly
( Box 3/ Bag 11 )
Important Note:
This part, for tuning reasons,
comes factory assembled,
it is ready to use.
Important Note:
This part, for tuning reasons,
comes factory assembled,
it is ready to use.
