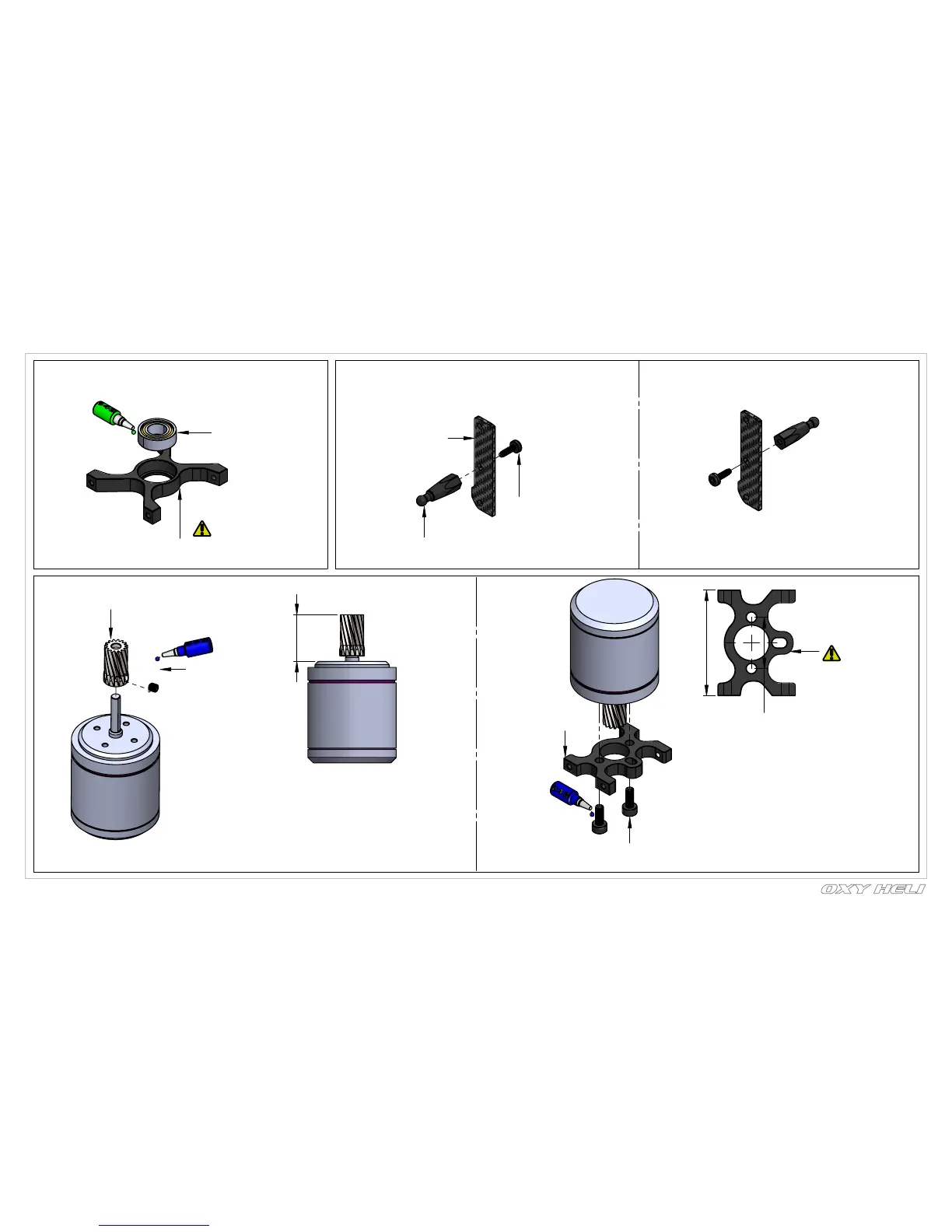

Chapter 7: Main Frame Assembly
Left
Righ
OXY0425 -
Break Away Canopy
OXY0082 - Canopy Mount
TBES2X6 - M2X6 Self
Tapping Screw
OXY0331- Lower Bearing Block
RM126-ZZ -
6x12x4 Radial Bearing
SCM3x3 -
Set Screw M3x3
Pinion (15T-3.5mm Motor Shaft included )
TCEM3X8 -
M3X8 Hex Cap Screw
OXY0336 - Motor Mount
page 16
Lower Bearing Block Assembly
( Box 3/ Bag 12 )
Break Away Canopy Assembly
( Box 3/ Bag 13 )
Motor Assembly
( Box 3/ Bag 14 )
Important Note:
This part, for tuning reasons,
comes factory assembled,
it is ready to use.
This hole is in the
nose of helicopter
To Next Page
