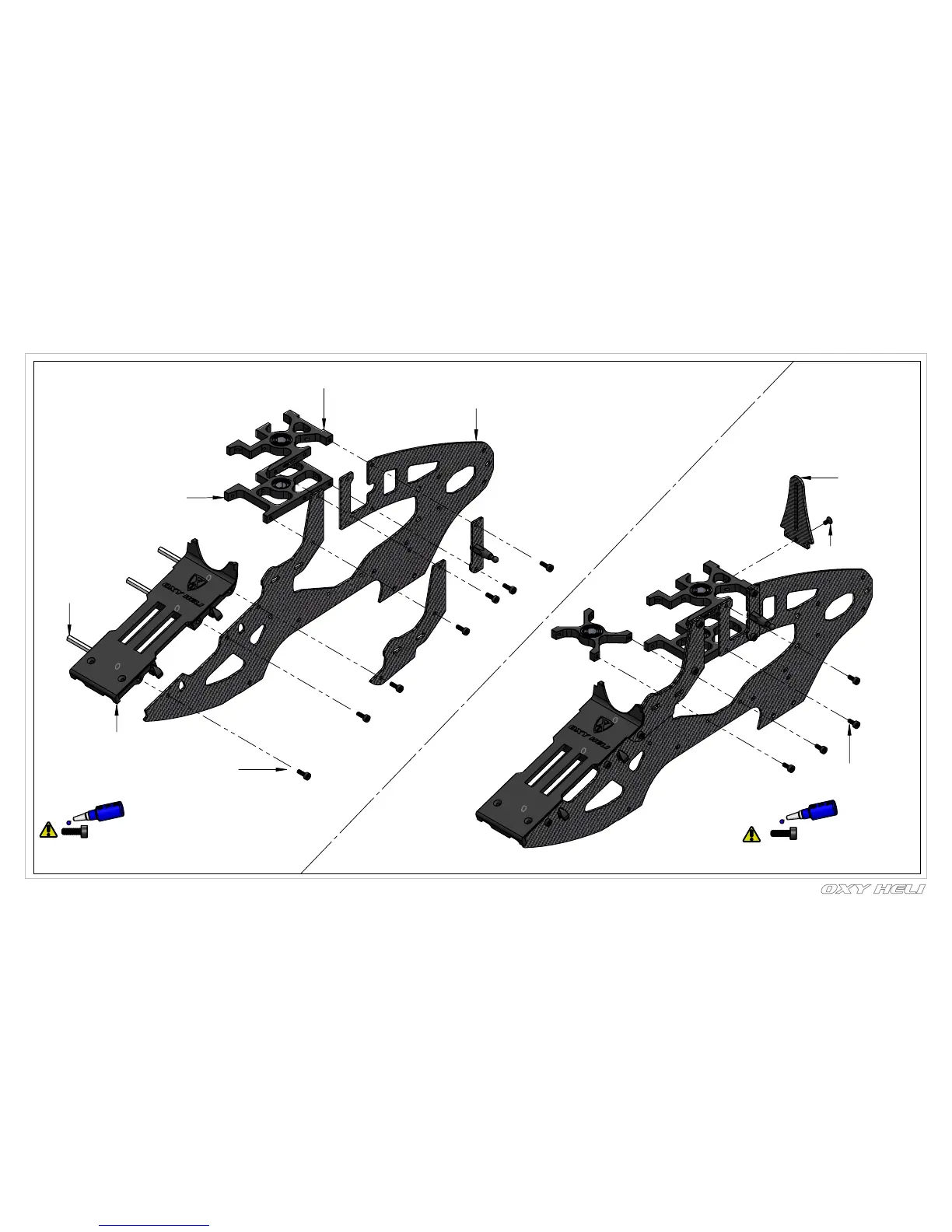

Chapter 7: Main Frame Assembly
page 17
7 x M2x6 Hex Cap Screw
Note: Don't fully tighten yet.
Wait future neccessary
assembly step.
OXY0661 - Main Frame
Upper Bearing
Block Assembly
Middle Bearing
Block Assembly
3 x OXY0665 -
Hexagon 3mm
4 x all screws in this step
Note: Don't fully tighten yet.
Wait future neccessary
assembly step.
Lower Bearing
Block Assembly
FHSM2X4 -
M2x4 Flat Head Screw
OXY0711 -
Anti rotation Guide
4 x TCEM2X5 -
M2X5 Hex Cap Screw
7 x TCEM2X6 -
M2X6 Hex Cap Screw
Battery Tray
( Box 3/ Bag 15 )
