Oxy Heli OXY4 - Page 19

Chapter 7: Main Frame Assembly
page 18

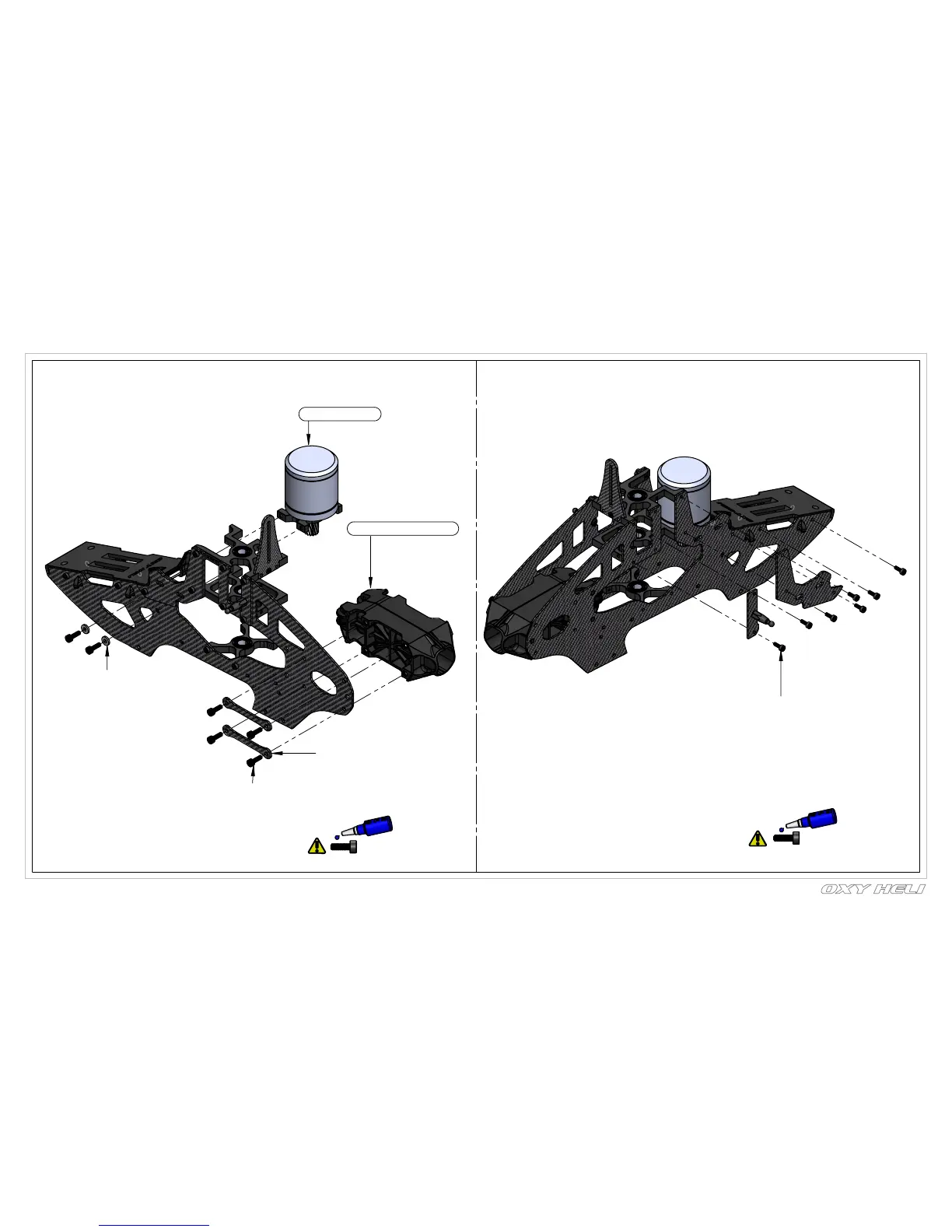

Motor Assembly
Boom Clamp Assembly
OXY0663 - Boom Clamp
Stiffener CF
6 x TCEM2.5X8 -
M2.5X8 Hex Cap Screw
OXY0332 -
M2.5 Washer
6 x M2.5x8 Hex Cap Screw
Note: Don't fully tighten yet.
TCEM2X6 -
M2X6 Hex Cap Screw
7 x M2x6 Hex Cap Screw
Note: Don't fully tighten yet.
See assembly alignment
Step page 23.
