Oxy Heli OXY4 - Chapter 6: Tail Assembly

A
A
Chapter 6: Tail Assembly
page 7

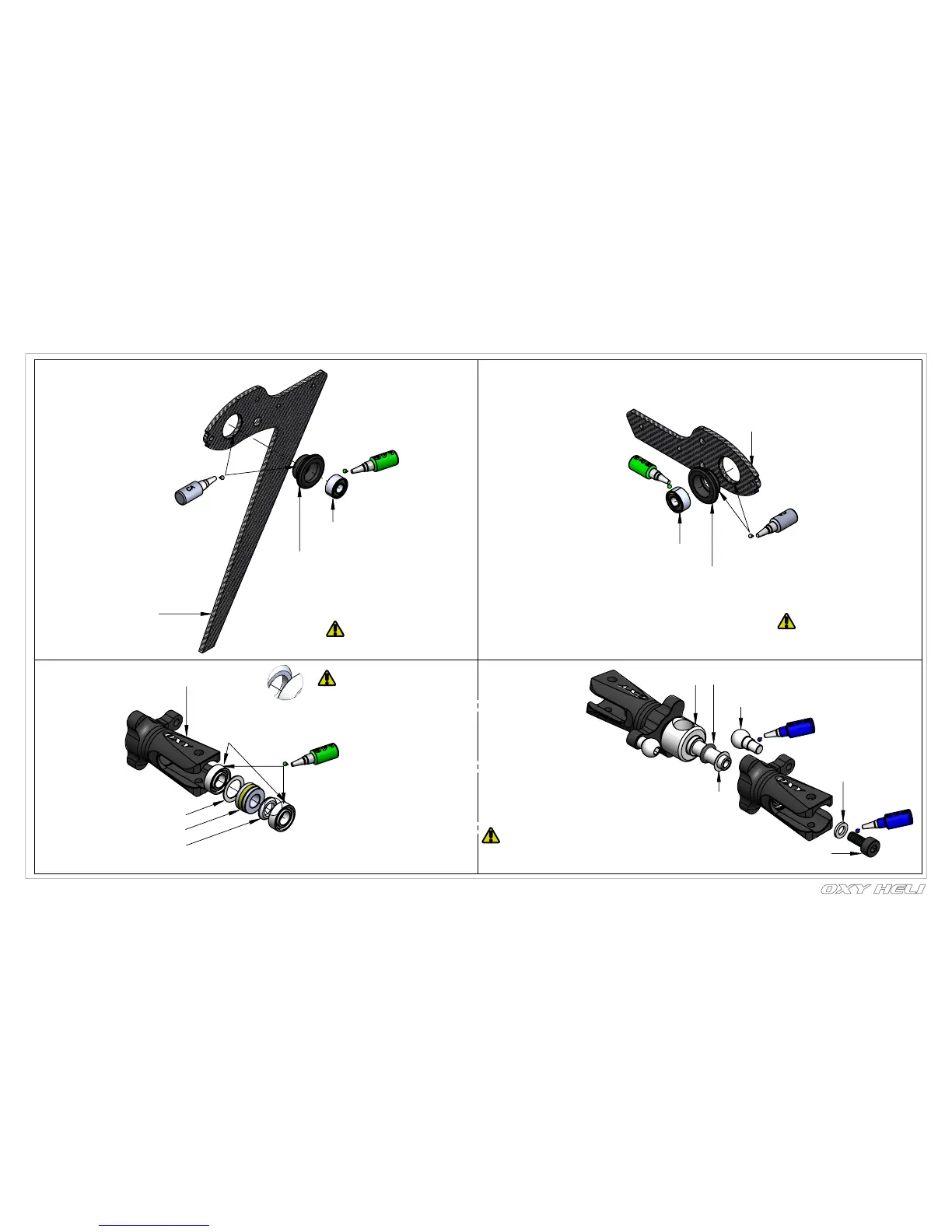

Vertical Fin Assembly
(Box 3/Bag 1)
Important Note:
This part, for tuning reasons,
comes factory pre assembled,
it ready to us
OXY0353-OXY4-
Vertical Fin Block
OXY0354 -Vertical
Fin Bushing
MR684_ZZC -
Radial Bearing 4x9x4
Tail Case Assembly
(Box 3/Bag 1)
Important Note:
This part, for tuning reasons,
comes factory pre assembled,
it ready to us
MR684_ZZC -
Radial Bearing 4x9x4
OXY0358-OXY4 - Tail
Case Bearing Bushing
OXY0676-OXY4
CF Side Case
Tail Rotor Assembly
(Box 3/Bag 2)
MR63-X - 3X6X2
Radial Bearing
OXY0710 - OXY4
Tail Grip
Important Note:
This part, for tuning reasons,
comes factory pre assembled,
it ready to use
OXY0054 - 3X4X0.1 Shim
F3-6M-3x6x2.8 Thrust Bearing
OXY0723 - Tail Grip Spacer
Important Note:
This part comes pre assembled
WITHOUT thread lock. It MUST be
re-assembled with thread lock as shown.
OXY0344 -
OXY4-Tail Hub
O-Ring ID2 W1
OXY0054 -
3X4X0.1 Shim
OXY0050 - linkage
ball 4 X 3 M2
OXY0055 -
2X3.5X0.5 Washer
TCEM2X5 - M2X5
Hex Cap Screw
