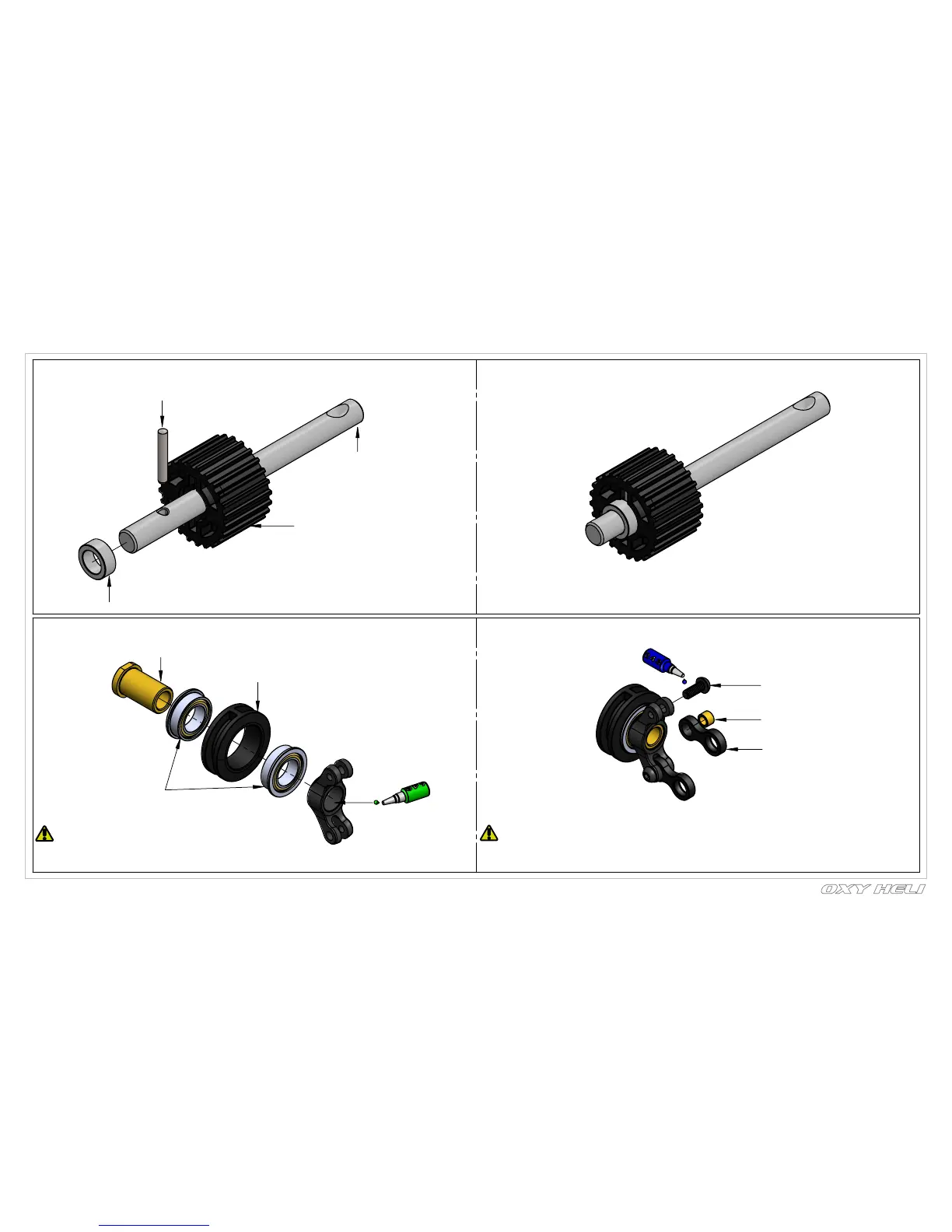

Chapter 6: Tail Assembly
Tail Shaft Assembly
( Box 3 / Bag 3
)
OXY0733 - 1.5x9.5 Alloy
Steel Dowel Pin
OXY0743 - 4x6x2.5 Bushing
OXY0348 - Tail Shaft
OXY0726 - 24T Tail Pulley
Tail Pitch Slider Assembly
( Box 3 / Bag 4
)
Important Note:
This part, for tuning reasons,
comes factory pre assembled,
it ready to use.
OXY0345 - Tail Pitch
Slider Bushing
OXY0714 - Tail Pitch
Slider Ring
MF106-ZZ - 6X10X3
Flange Bearing
TBEM2X5 - M2X5 Button Screw
OXY0062 - 2X3X2 Bushing
OXY0064 - Link Control
page 8
Important note:
This part comes pre assembled
WITHOUT thread lock. It MUST be
re-assembled with thread lock as shown.
To Next Page
