90°
90°

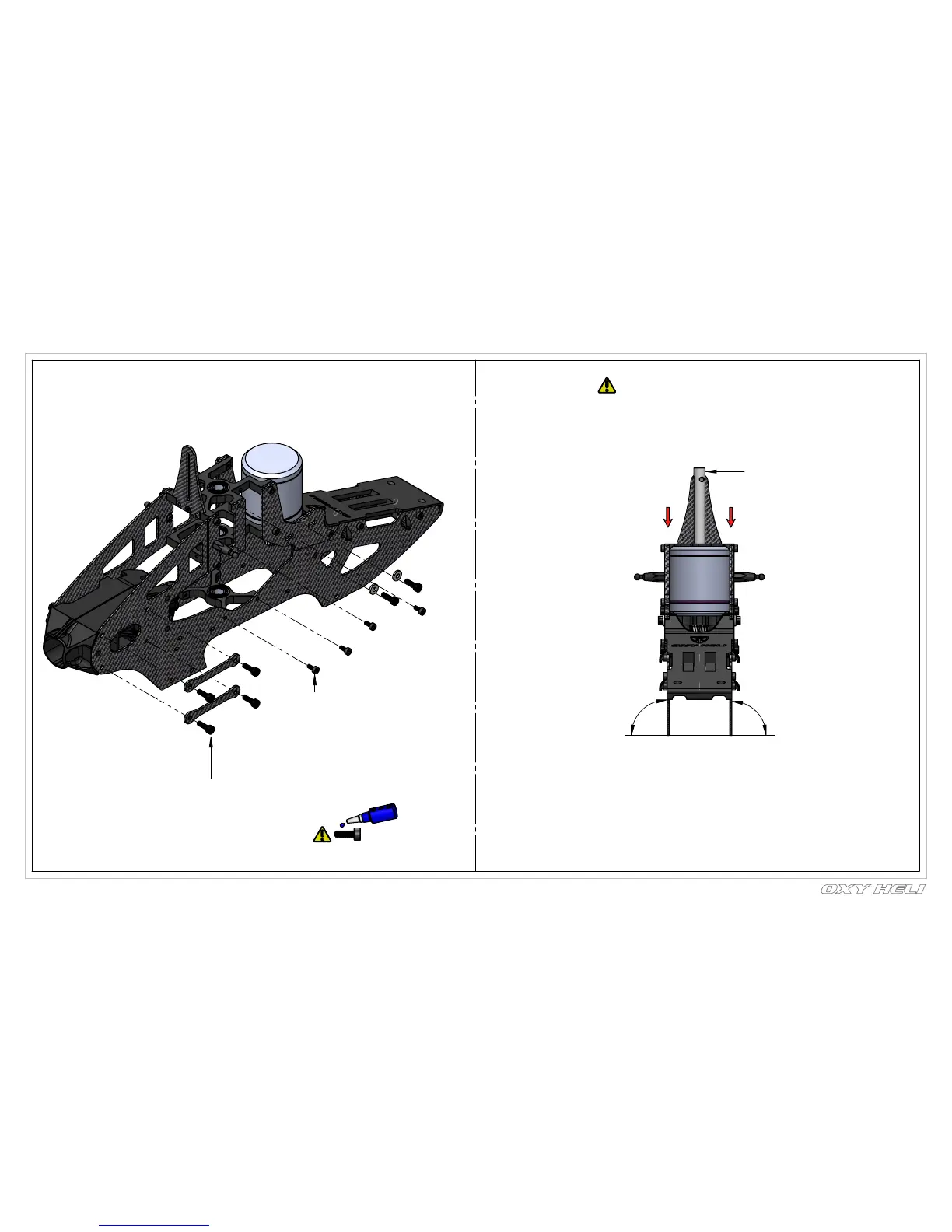

Chapter 7: Main Frame Assembly
4 x TCEM2x5 -
M2X6 Hex Cap Screw
page 19
6 x TCEM2.5x8 -
M2.5X8 Hex Cap Screw
All Screw in this step
Note: Don't fully tighten yet.
See assembly alignment
Step page 16.
Install main shaft with frame assembly
on a flat surface, push down on both frames
together and then fully tighten all M2 Hex Cap
Screws (x22) holding the bearing blocks.
Main Shaft
(
Box3 / Bag 16 )
To Next Page
