Oxy Heli OXY4 - Page 21

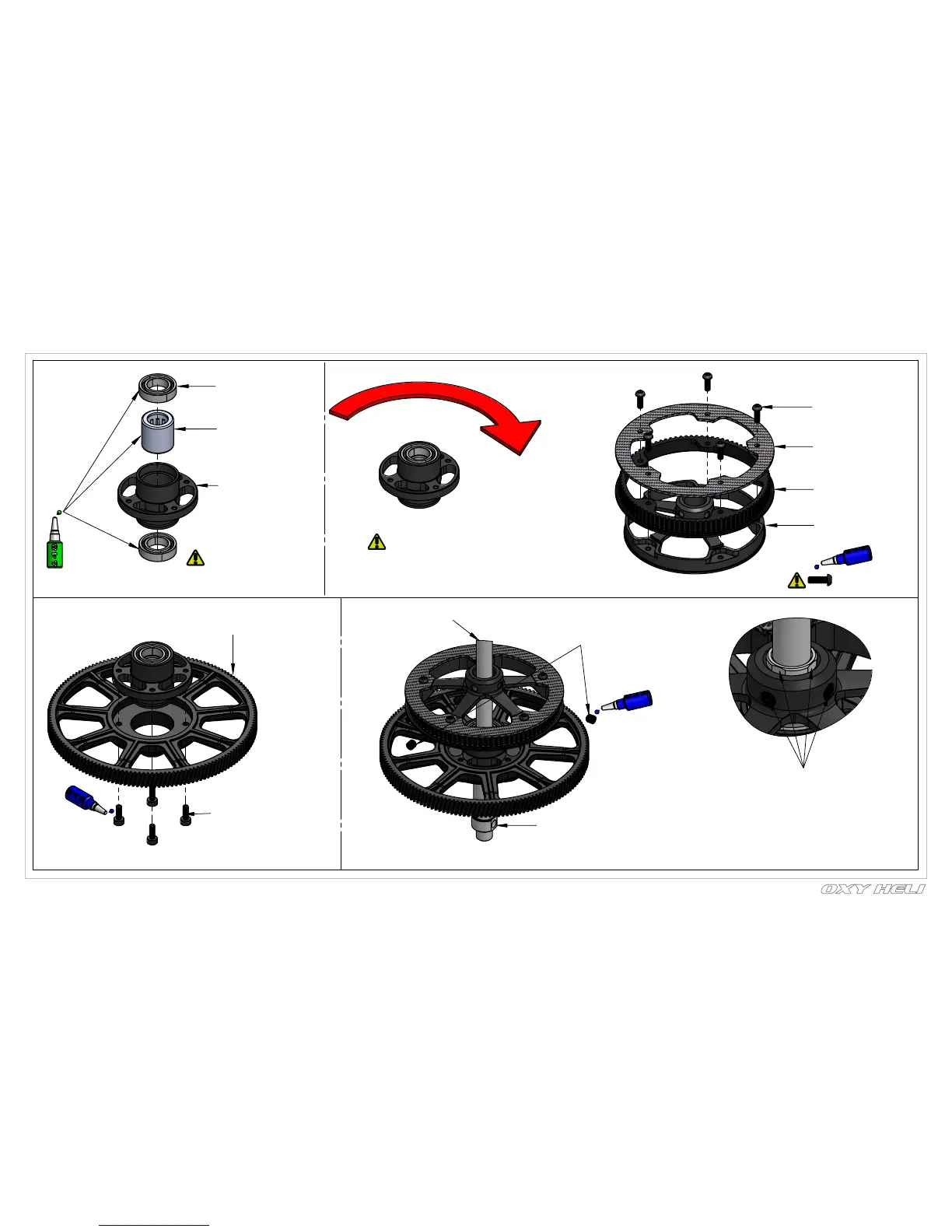

Chapter 8: Main Gear Assembly
page 20
HF0812
One Way 8x12x12
OXY0655 -
One Way Hub
the Sleeve is free
rotate as arrow hown
MR148ZZ
8x14x3.5 Radial Bearing
5 x TBEM2X6 -
M2X6 Button Screw
OXY0657 -
Front Pulley Hub
OXY0721-
88T Front Pulley
OXY0658 -
Front Flange Pulley
TBEM2X6 -
M2X6 Button Screw
OXY0720 - Main Gear
4 x TCEM2x6 -
M2X5 Hex Cap Screw
OXY0654 -
One Way Sleeve
2 x SCM3x3 -
Set Screw M3x3
Main Gear Assembly
(Box2 / Bag 1 )
Insert the Main Shaft
before you lock the Sleeve
2 Set Screw are seat onto the flat surface of
OXY0654 One Way Sleeve
Important Note:
This part, for tuning reasons,
comes factory assembled,
it is ready to use.
loctite 243
loctite 243
loctite 243
loctite 648
