Chapter 23: Spare Parts - Frame Parts
page 43
OSP - 1014

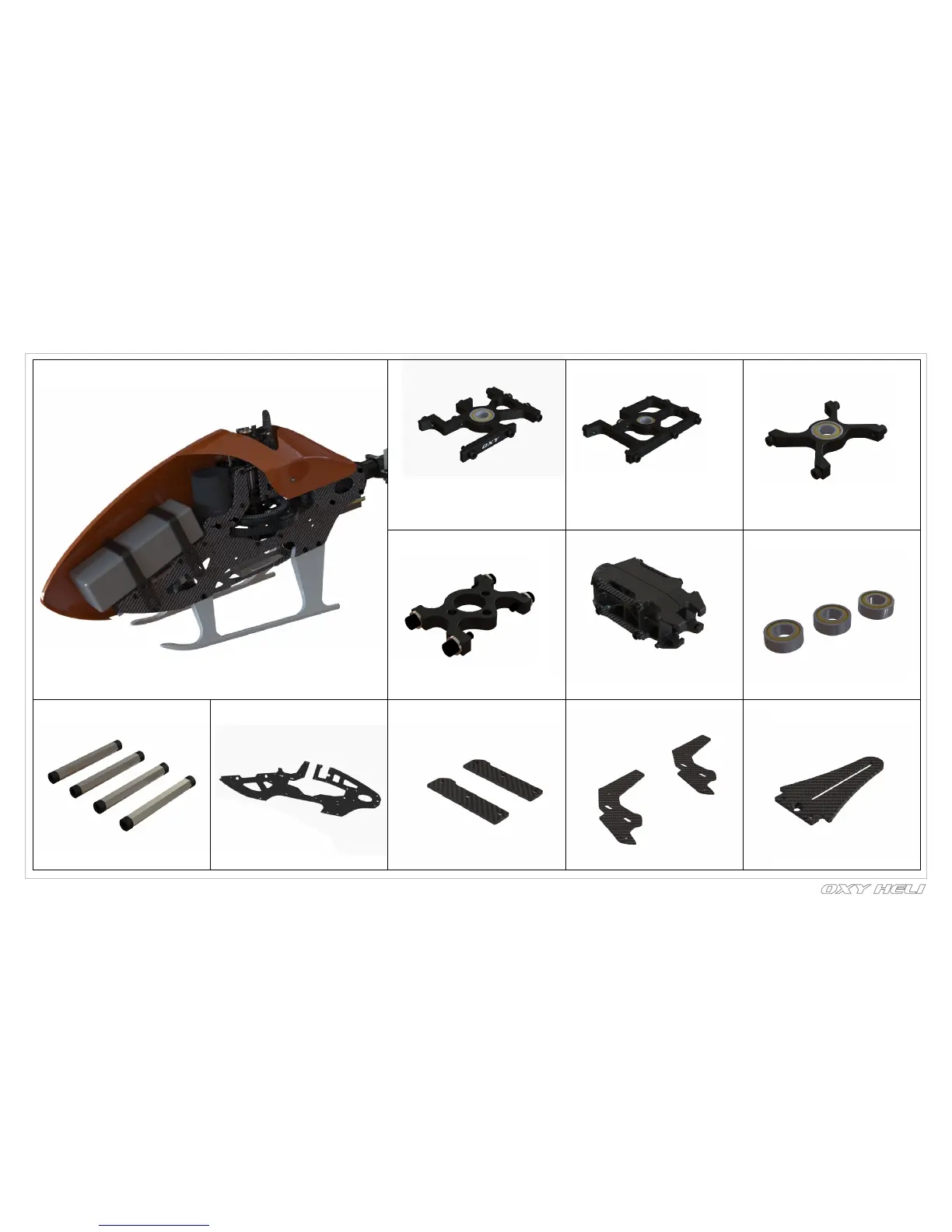

OXY4 - Main Frame
1 x OXY4 Main Frame
OSP - 1017
OXY4 - Tail Boom Clamp Mount, Set
2 x OXY4 Boom Clamp
4 x OXY4 H4x32mm M2.5
4 x OXY4 Boom Clamp Stiffener
8 x M2.5X8 Hex Cap Screw
OSP - 1018
OXY4 - Boom Mount Lock Rod
4 x OXY4 H4x32mm M2.5
8 x M2.5X8 Hex Cap Screw
OSP - 1019
OXY4 - Upper Main Shaft Bearing Block
1 x Upper Bearing Block
1 x 6x12x4 Radial Bearing
1 x M2x4 Flat Head Screw
3 x Washer M2
3 x M2X5 Hex Cap Screw
6 x M2X6 Hex Cap Screw
OSP - 1020
OXY4 - Middle Main Shaft Bearing Block
1 x Lower Bearing Block
1 x 6x12x4 Radial Bearing
3 x Washer M2
5 x M2X5 Hex Cap Screw
4 x M2X6 Hex Cap Screw
OSP - 1021
OXY4 - Lower Main Shaft Bearing Block
1 x Lower Bearing Block
1 x 6x12x4 Radial Bearing
4 x M2X5 Hex Cap Screw
OSP - 1022
OXY4 - Motor Mount
1 x OXY4-Motor Mount
4 x M2.5 Washer
8 x M2.5X8 Hex Cap Screw
OSP - 1023
OXY4 - Main Shaft Bearing Block
- Service Bag
3 x 6x12x4 Radial Bearing
OSP - 1024
OXY4 - Break Away Canopy Plate
2 x Break Away Canopy Plate
OSP - 1025
OXY4 - Motor Mount Stiffener Plate
4 x OXY4 Motor Mount Stiffener
OSP - 1026
OXY4 - Carbon Anti Rotation Guide
1 x OXY4 - Anti rotation Guide
