3
ONLINE MANUAL
Scan this QR Code with your
mobile device to take you to
the online manual.
ACCESSORIES
19
Work piece holder & Front guard
1. Arm
2. Retaining Screw
3. Sawdust Blower
4. Work Piece Holder Arm
5. Upper Blade Holder
6. Work Piece Holder
7. Side Cover
8. Table
9. Bevel Scale
10. Work Piece Holder Lock Knob
11. Blade Tension Lever
12. Front Guard
13. Table Insert
14. Table Lock Knob
15. Dust Extration Port
16. On/Off Switch
17. Speed Selector Dial

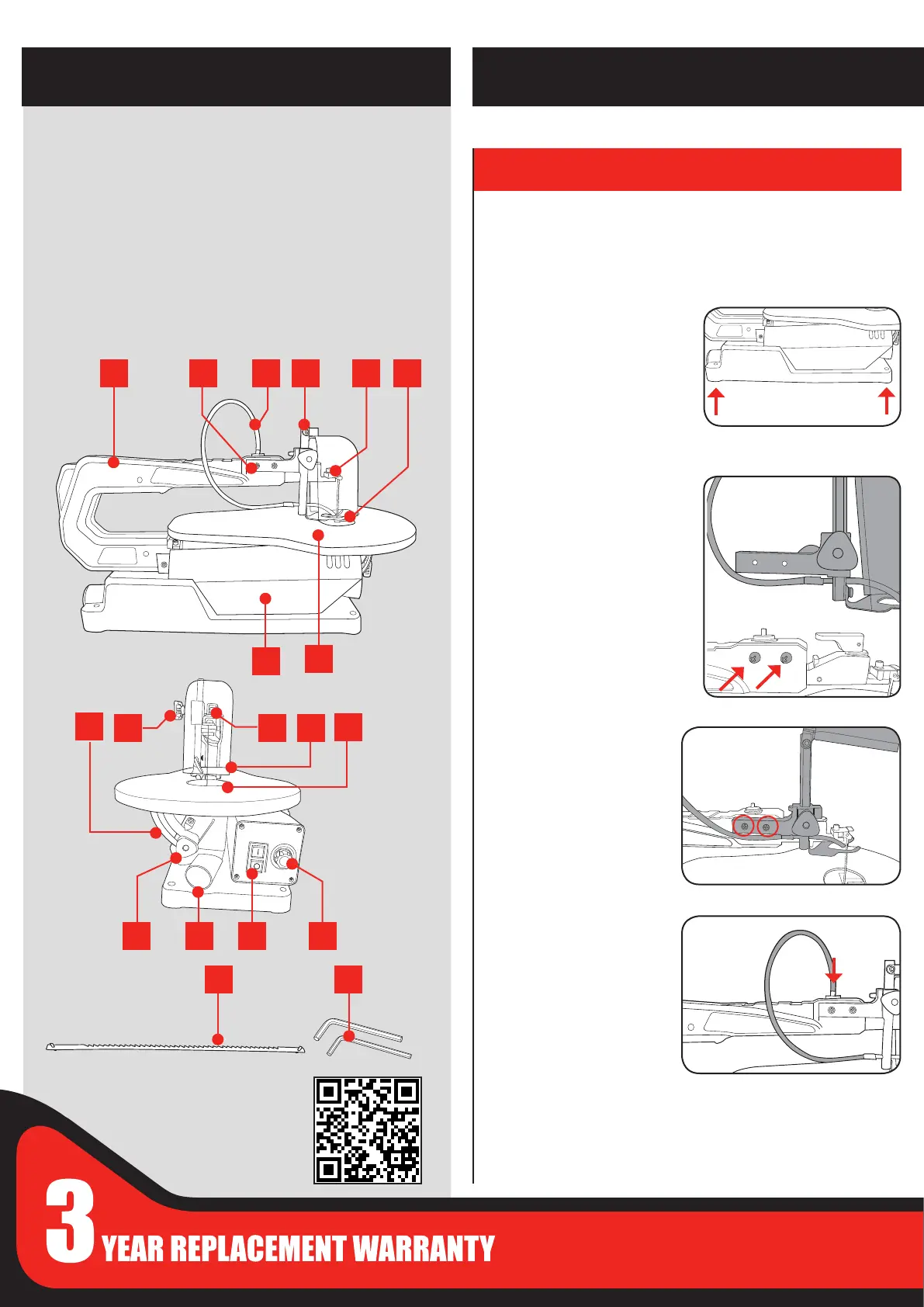

SCROLL SAW
KNOW YOUR PRODUCT
1 3 4 52
7
6
11
10
12
14 15
16 17
8
9
1. ASSEMBLY
SETUP & PREPARATION
18. Pin Type Blade
19. Hex Keys (3 & 4mm)
18
13
1. Remove Retaining Screws
from the Arm and put asside
for use in step 2.
2. Fasten the Safety Guard
Assembly to the Arm with
the Retaining Screws
removed in step 1.
Unpacking
• Open the carton and remove top packing material
• Carefully lift the variable speed scroll saw from the packaging and
place it on a level work surface.
Rubber feet
Attach supplied rubber feet to
four holes in the base of the
scroll saw.
3. Connect the Sawdust
Blower as shown.
