ONLINE MANUAL
Scan this QR Code with your
mobile device to take you to
the online manual.

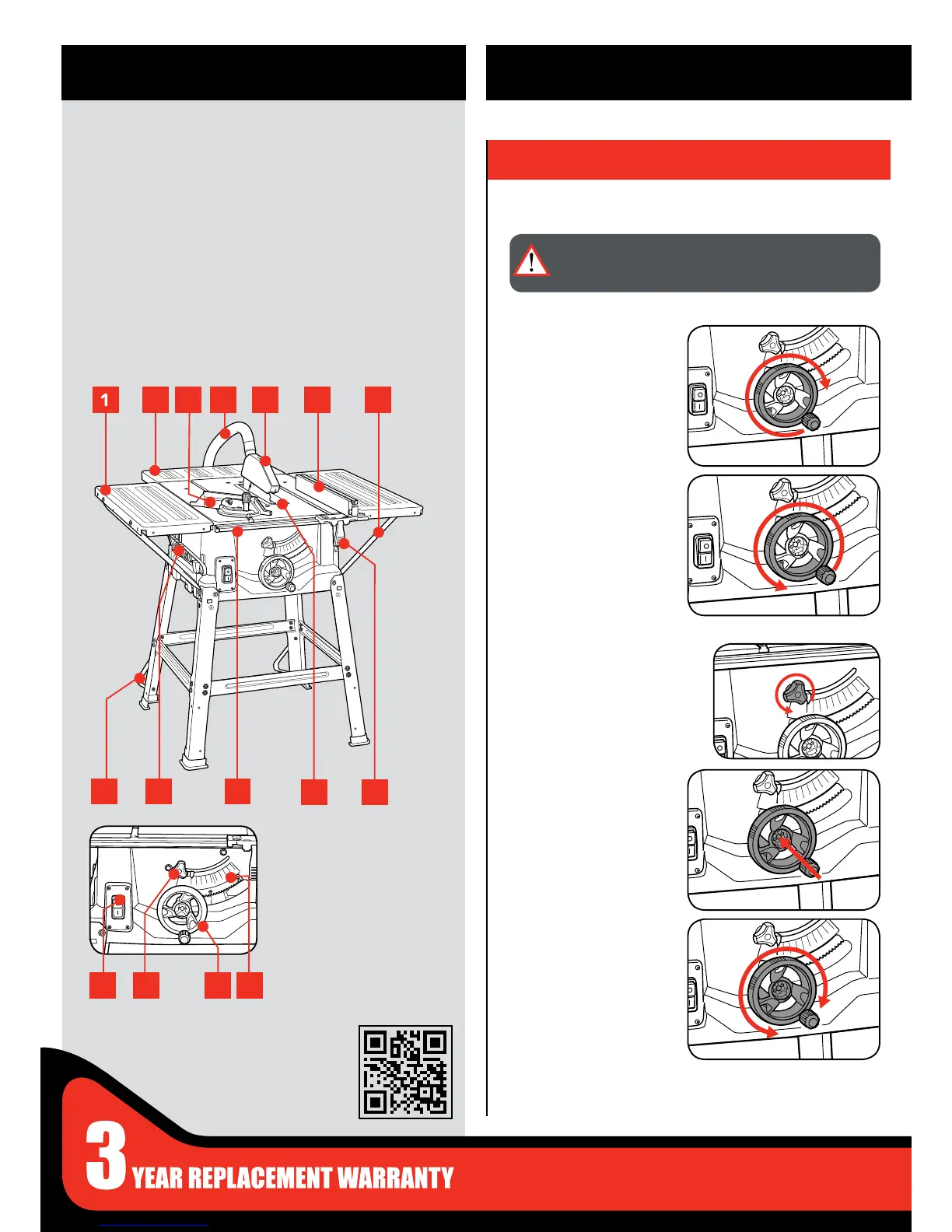

1. Side table extension
2. Rear table extension
3. Sliding mitre gauge
4. Dust extractor hose
5. Blade guard
6. Rip fence
7. Support strut
8. Stabilising bracket
9. Push stick
10. Guide rail
11. Table insert
12. Rip fence lever
13. ON/OFF switch
14. Bevel lock
15. Blade height & Bevel
adjustment
16. Bevel scale
TABLE SAW
KNOW YOUR PRODUCT
54 6
8
1. ADJUSTMENTS
For detailed assembly instruction see Assembly
Manual.
SETUP & PREPARATION
32
9
14
7
WARNING! ENSURE THE TOOL IS SWITCHED OFF AND
DISCONNECTED FROM THE POWER SUPPLY BEFORE
PERFORMING ANY OF THE FOLLOWING PROCEDURES.
Cutting Depth
Bevel Angle
1. To lower the blade for a
smaller depth of cut, rotate
the blade height & bevel
adjustment clockwise.
3. Rotate the blade height
& bevel adjustment to the
desired angle using the
bevel scale.
2. Push and hold the blade
height & bevel adjustment
dial in to engage the bevel
gear.
2. To raise the blade for a
larger depth of cut, rotate
the blade height & bevel
adjustment anti-clockwise.
4. Release the blade height & bevel adjustment dial, secure in place by
rotating the bevel lock clockwise.
1. Loosen the bevel lock by
rotating anti-clockwise.
12
13 15 16
11
10
