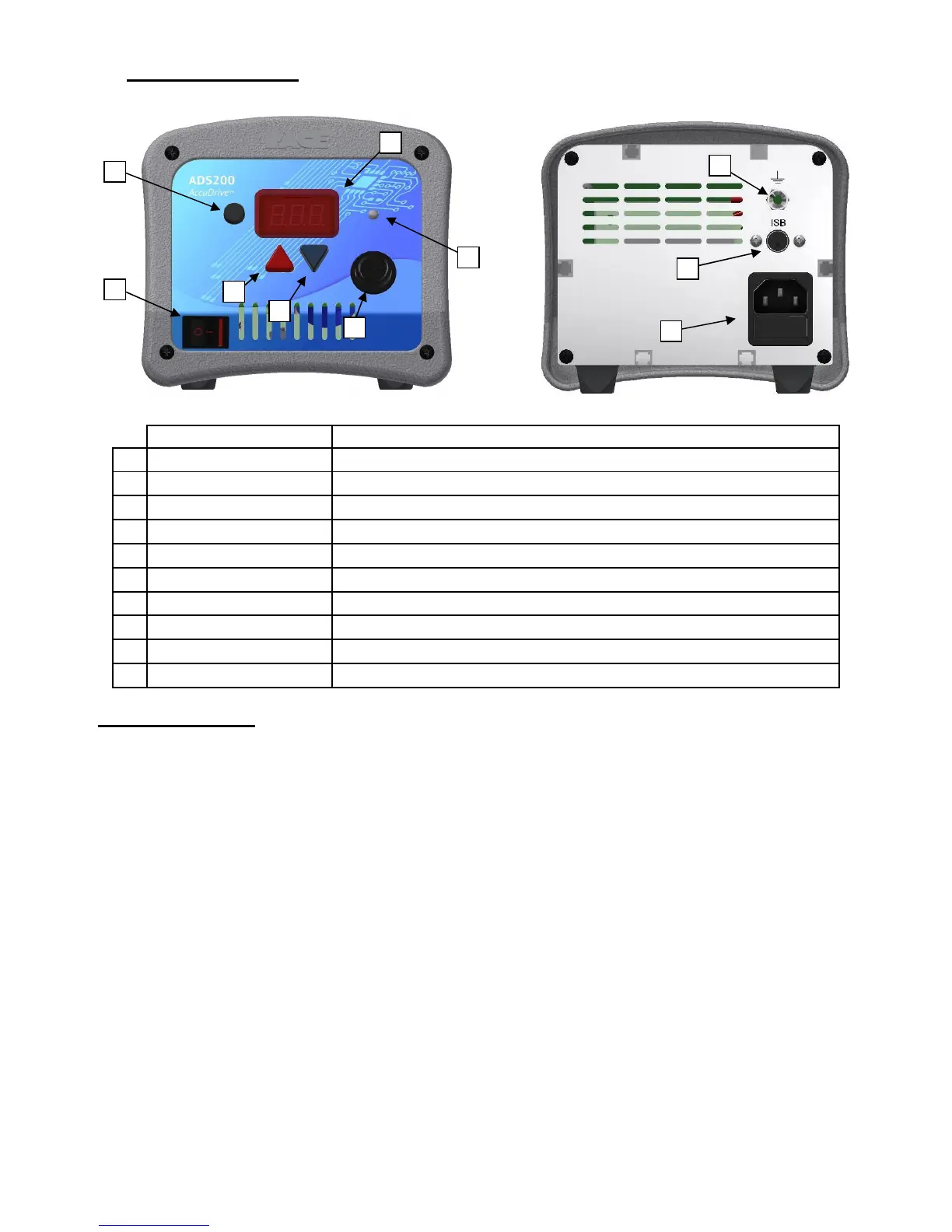

Power Supply Features
Safety Guidelines
The following are safety precautions that personnel must understand and follow when using or servicing this
product.
1. POTENTIAL SHOCK HAZARD - Repair procedures on PACE products should be performed by
qualified service personnel. Line voltage parts may be exposed when the equipment is disassembled.
Service personnel must avoid contact with these parts when troubleshooting the product.
2. Tip-Heater Cartridges are hot when the handpiece is powered on and for a period of time after power
off. DO NOT touch the heater or the tip. Severe burns may result.
3. PACE Tip & Tool Stands are designed specifically for use with the associated handpiece and houses it
in a manner that protects the user from accidental burns. Always store the handpiece in its holder. Be
sure to place the handpiece in its holder after use and allow the Tip-Heater Cartridge to cool before
storing.
4. Always use PACE systems in a well-ventilated area. Fume extraction systems, such as those available
from PACE, are highly recommended to help protect personnel from solder flux fumes.
5. Exercise proper precautions when using chemicals (e.g., solder paste or flux). Refer to the Material
Safety Data Sheet (MSDS) supplied with each chemical and adhere to all safety precautions
recommended by the manufacturer.
Feature Description
A Program button For access to program menu, presets, and confirmation of settings.
B Power switch On/off control of power supply.
C Up arrow button Increase set temperature and scroll through program menu functions.
D Down arrow button Decrease set temperature and scroll through program menu functions.
E Power Receptacle Front panel connection of handpiece.
F Digital control LED Indicates status of power supply.
G Digital display Displays temperature setting and menu functions.
H Ground jack For ground system to static safe work area.
I ISB connection Connection for Instant SetBack tool stand.
J Power inlet with fuse Connection for IEC power cord and fuse replacement/storage.
