7
CONNECTING UP
STANDARDDEFINITION SD VIDEO
CONNECTIONS

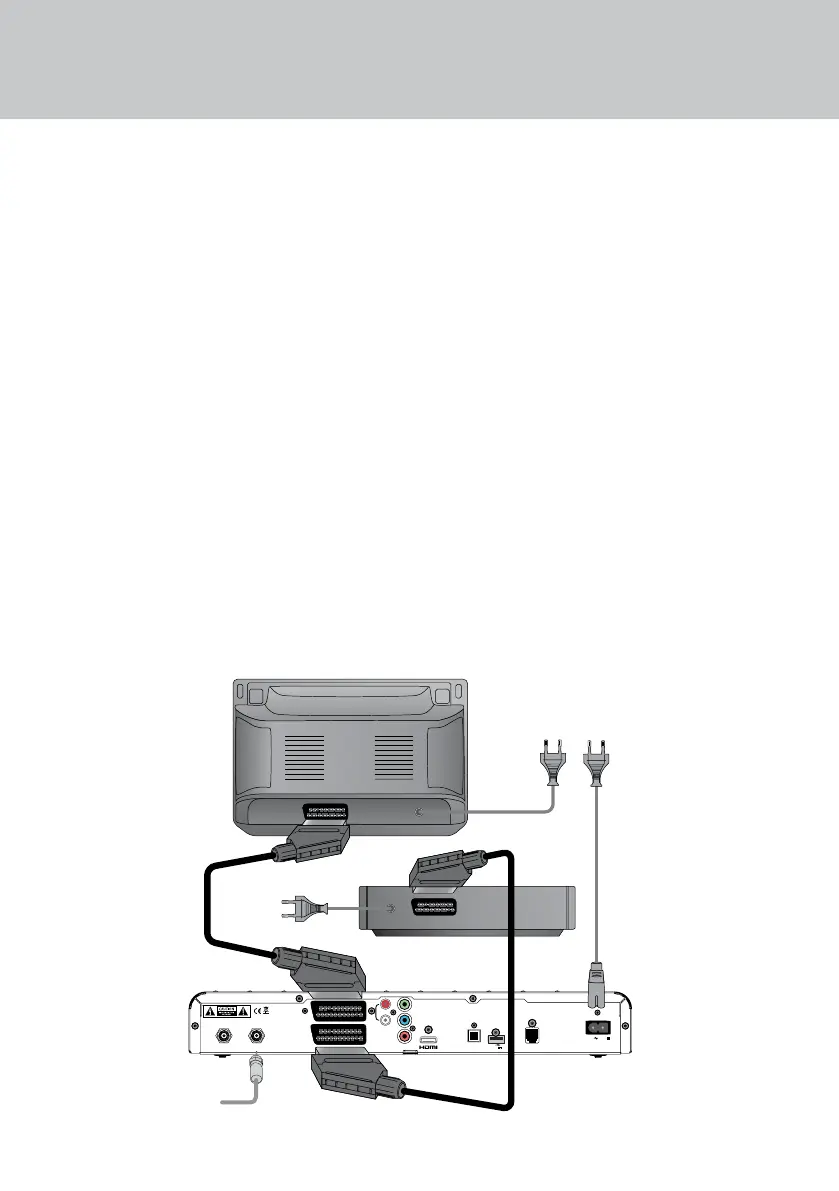

If you have a standard-denition TV, a VCR or a DVD
recorder, use the connection methods described
below.
• Connect the supplied SCART lead between the
TV SCART socket on your set-top box and the
SCART socket on your TV.
• Connect another SCART lead (not supplied)
between the VCR SCART socket on your set-
top box and the SCART socket on your VCR or
DVD recorder.
NOTE: If you want to make additional audio
connections between your set-top box and
your audio equipment, see page 8.
COMPONENT
VIDEO-OUT
USB
+5V DC
500mA Max.
OPTICAL
AUDIO OUT
SATELLITE OUT SATELLITE IN
TV SCART
VCR SCART
TELEPHONE
LINE
230V 50Hz
Pr
Pb
Y
R
L
AUDIO
13/18V DC
400mA max.
TV
Set-top box
LNB lead
Mains lead
Mains lead
SCART lead
SCART lead
VCR or
DVD
recorder
Mains lead
