Handlebar Binder Bolt
Exceeds 2 1/2"
(64ram) y
Stem Wedge Bolt
l ..: _,_ Mian:imuLmrninHseeigrthio_n
i_ark
Handlebar Height

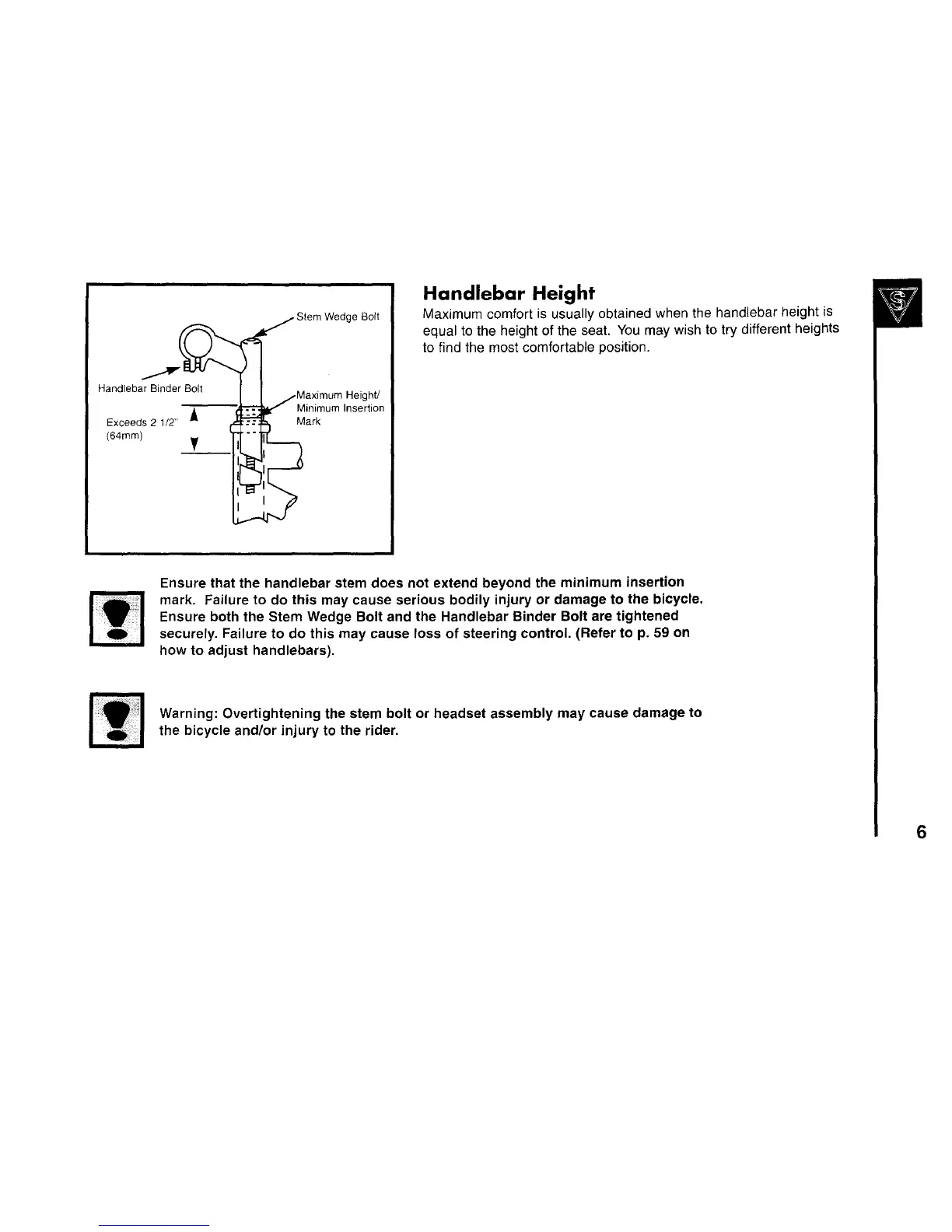

Maximum comfort is usually obtained when the handlebar height is
equal to the height of the seat. You may wish to try different heights
to find the most comfortable position.
Ensure that the handlebar stem does not extend beyond the minimum insertion
mark. Failure to do this may cause serious bodily injury or damage to the bicycle.
Ensure both the Stem Wedge Bolt and the Handlebar Binder Bolt are tightened
securely. Failure to do this may cause loss of steering control. (Refer to p. 59 on
how to adjust handlebars).
Warning: Overtightening the stem bolt or headset assembly may cause damage to
the bicycle and/or injury to the rider.
