Handlebar Binder Bolt
Max. Height/
Minimum Insertion
Mark

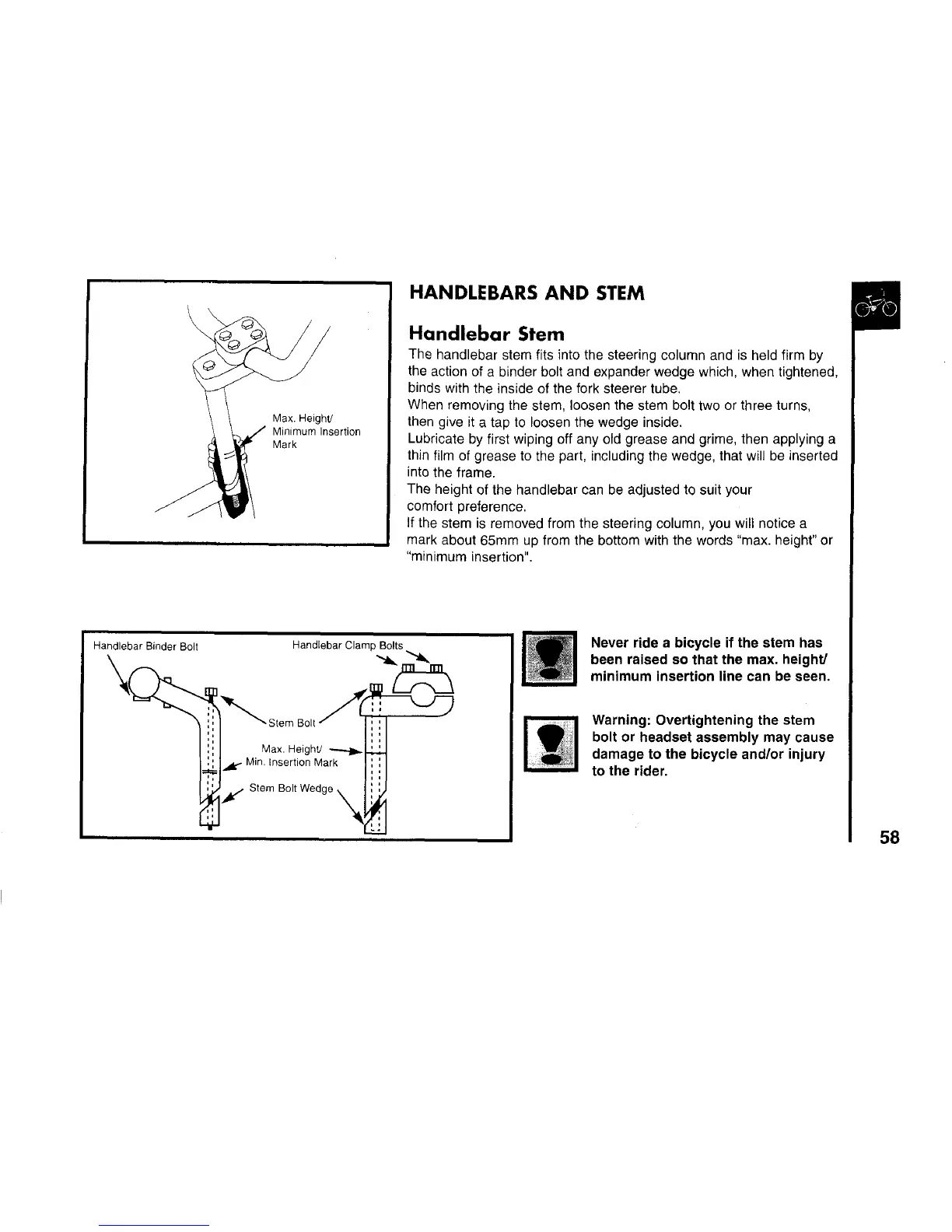

HANDLEBARS AND STEM
Handlebar Stem
The handlebar stem fits into the steering column and is held firm by
the action of a binder bolt and expander wedge which, when tightened,
binds with the inside of the fork steerer tube.
When removing the stem, loosen the stem bolt two or three turns,
then give it a tap to loosen the wedge inside.
Lubricate by first wiping off any old grease and grime, then applying a
thin film of grease to the part, including the wedge, that will be inserted
into the frame.
The height ef the handlebar can be adjusted to suit your
comfort preference.
If the stem is removed from the steering column, you will notice a
mark about 65mm up from the bottom with the words "max. height" or
"minimum insertion".
Handlebar Clamp Bolts
Max. Height/
Stem Bolt Wedge
Never ride a bicycle if the stem has
been raised so that the max. height/
minimum insertion line can be seen.
Warning: Overtightening the stem
bolt or headset assembly may cause
damage to the bicycle and/or injury
to the rider.
58
